Description
Description

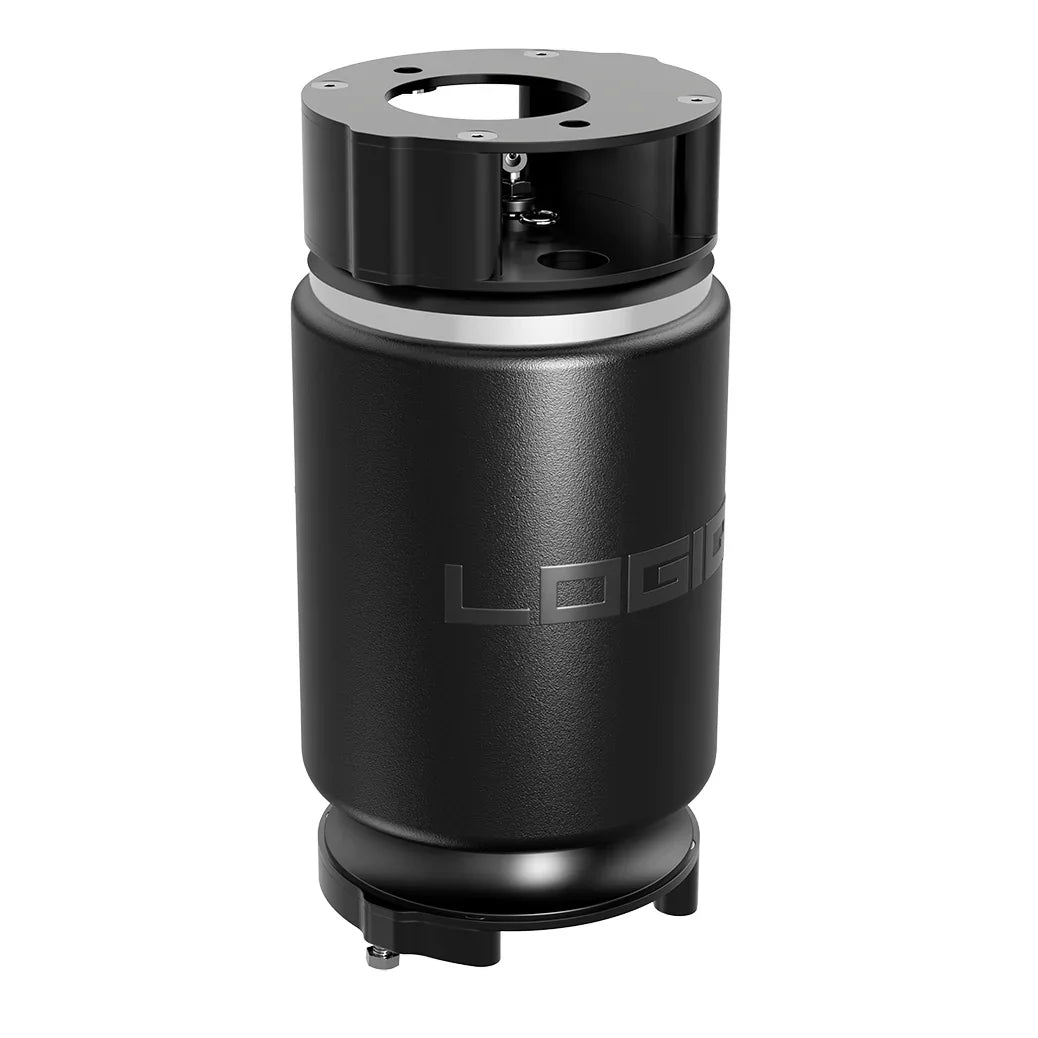

Upgrade your RAM 2500 with LOGIQ’s Air Spring Kit—a coil replacement solution that swaps factory coils (or factory air) for primary air at the rear axle. This 100% factory-assembled kit is engineered for your truck and delivers unmatched ride comfort when unloaded, enhanced stability under load, and adjustable height for easier trailer hookup or cargo access. It fits trucks at factory height and up to 3" lifts right out of the box, with upgrade options available for 3–6" lift kits.
This system is also a direct replacement for RAM 2500 models equipped with factory air suspension. If retaining the factory air management system, a 6mm-to-¼" push-to-connect adapter (not included) will be required.
WARNING - Never exceed manufacturer's Maximum Payload or GVWR
Ride Height = factory to +3". For lift amount +3" to +6" add spacer kit 89-12140-3. Includes heat wrap kit for tailpipe.
(1) Driver Side Air Spring Assembly
(1) Passenger Side Air Spring Assembly
(1) Hardware Kit
(1) Manual Inflation Kit
(1) Exhaust Heat Wrap Kit
Air Spring Location: Axle Mounted Inboard Frame Rails
Air Spring Quantity: 2
Lifting Force: 8,200 lbs @ 150 psi
Payload Capacity: 5,000 lbs @ 150 psi
Maximum Pressure: 150 psi
Minimum Pressure: 20 psi
