Built for the 1989–1998 5.9L 12-valve Cummins, the Hamilton Cams 12V 178/208 Camshaft Combo upgrades every part of the 12v valvetrain at once — cam, extreme duty pushrods, 155 lb springs, retainers, locks and tappets — for low-RPM response without giving up big HP and RPM potential.
Why Choose the Hamilton Cams 12V 178/208 Camshaft Combo?
- Complete 12-valve package – Cam, pushrods, springs, retainers, locks and lifters/tappets in one box.
- 155 lb valve springs – Control the valvetrain to 4500rpm and 80lbs of boost.
- Extreme duty pushrods – Rated from OEM to well over 2,000hp.
- Quickest spool of any Hamilton cam – The widest RPM band in the lineup; initially designed for trucks that need instant low-RPM torque.
- Turbo-friendly – Found to greatly help spool large single turbos, increase fuel economy, lower EGT and maintain power at higher elevations.
- Proven on the dyno – A 6.7L with a single S400 made 1100hp with a stock head, 1250 with larger valves, and 1588hp @4500 RPM with a ported head.
- 1.45″ tappets – More surface area on the cam lobe.
- 49-state EPA compliant – Not for sale in the state of CA.
Kit Includes

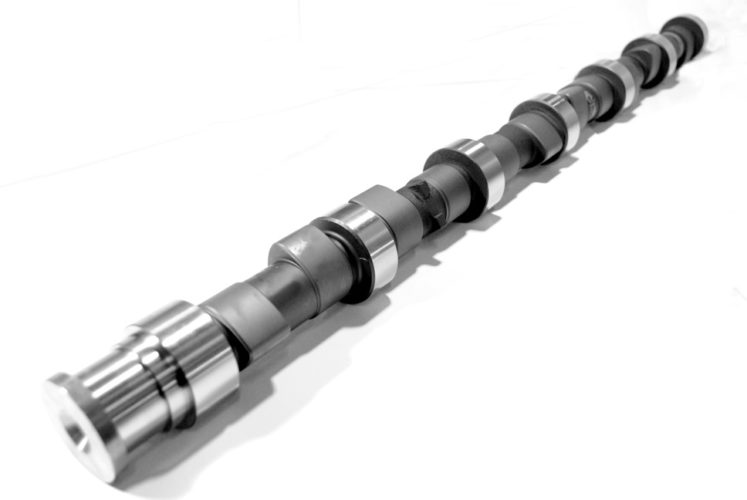

- 178/208 Camshaft (fits 89-2018 Cummins)

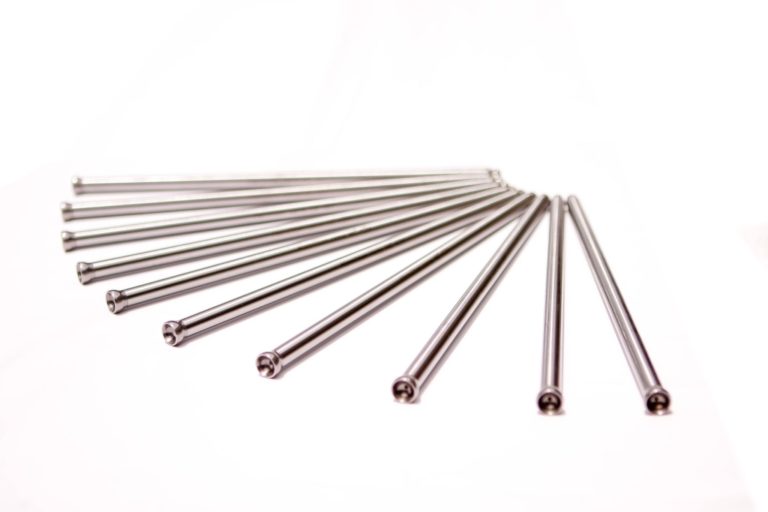

- Extreme duty pushrods (OEM-2000 hp)

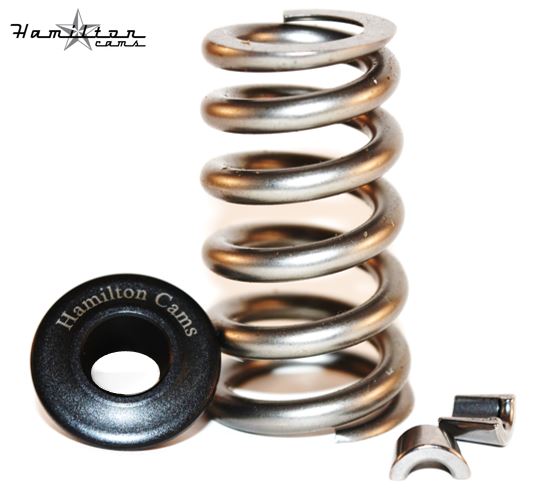

- 155 Valve Springs
- Retainers and Locks

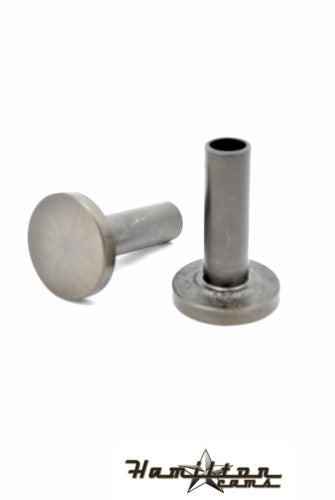

- Lifters/tappets
Fitment Notes
- For “drop in” fitment: no more than .020″ piston protrusion and at least .055″ valve face depth with a standard gasket.
- Short on piston-to-valve clearance? You can still run an oversize head gasket or cut valve reliefs.
- Not for sale in the state of CA.
Installation Highlights
Prime before you fire it. With the fuel system disconnected, crank on the starter — no more than 10 seconds at a time — until oil pressure reads or oil is coming out of the rocker arms on cylinder #6. Then start it, run to operating temperature and shut down. Do the hot re-torque (it changes lash), then set valves last at .010″ intake / .020″ exhaust. Loose lash on the last 3 cylinders comes from poor lubrication at initial start-up; use assembly lube and confirm oil pressure.
Fits These Models
1989–1998 Dodge/Ram 2500/3500 5.9L Cummins 12V
Key Features at a Glance
- 178/208 grind – Low-RPM torque and quick spool
- 155 lb springs – 4500rpm / 80lbs boost control
- Extreme duty pushrods – Over 2,000hp rated
- Retainers & locks included – Complete spring package
- EPA compliant – 49-state legal
Notes
- Approved oil required. Run a 15W-40 (or 5W-40 in sub-zero conditions) with adequate zinc, phosphorus and molybdenum; thin or low-additive oils lack the shear strength a flat tappet needs.
- Approved: Valvoline Full Synthetic 15W-40, Valvoline Synthetic Blend 15W-40, Valvoline All-Terrain 15W-40, Schaeffer’s 15W-40, Mobil Delvac Extreme 15W-40, LIQUI MOLY Touring High Tech 15W-40, Driven Racing Oil 15W-40, Redline 15W-40.
- Acceptable: Shell Rotella T6 Full Synthetic 15W-40, Shell Rotella T5 15W-40.
- Preferred filter: Fleetguard Stratapore LF16035.
- Running a non-approved oil voids the warranty. Warranty claims must include the failed parts and an oil sample.
SKU: 07-CC-12V178
Questions? We’re Here to Help.
Have questions about upgrades for your 12-valve Cummins? Contact FASS Motorsports and we’ll get you dialed:
Phone: 636-429-7020
Email: info@fassmotorsports.com
This part fits the following vehicles:
| Years | Make & Model |
|---|---|
| 1989–1993 | Dodge D250 |
| 1989–1992 | Dodge D350 |
| 1994–1998 | Dodge Ram 2500 |
| 1994–1998 | Dodge Ram 3500 |
Fitment is listed by year, make and model. Some applications also depend on cab, bed, drivetrain or engine — if you are not sure, call 636-429-7020 or send us your vehicle details and we will confirm before you order.
