Description
Description
Ford's 6.7L Power Stroke uses plastic for both the engine-mounted fuel filter housing and the injector return fitting. Plastic resists corrosion well, but it loses strength after enough heat cycles — and when the housing cracks, it can spray diesel directly onto a hot inboard exhaust. The injector return fitting is a second failure point on the same system.

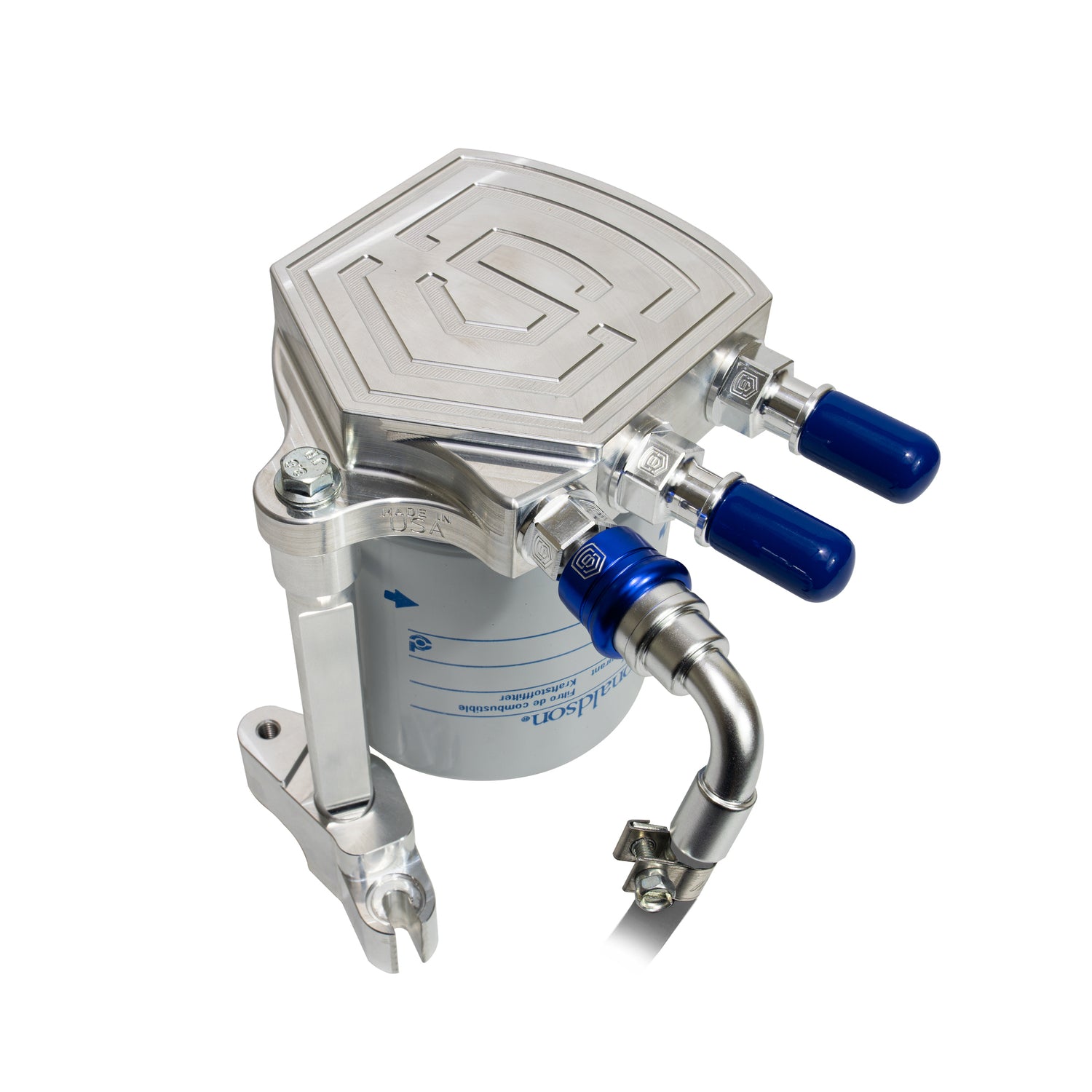

The S&S Fuel Leak Prevention Kit eliminates both without giving up filtration. Rather than reuse the OEM filter cup, S&S went to a two-post mount that accepts a physically larger element — holding the factory 4-micron absolute spec at 99% efficiency while nearly doubling dirt holding capacity. The aluminum Fuel Leak Prevention Fitting ships standard with every kit.
Features

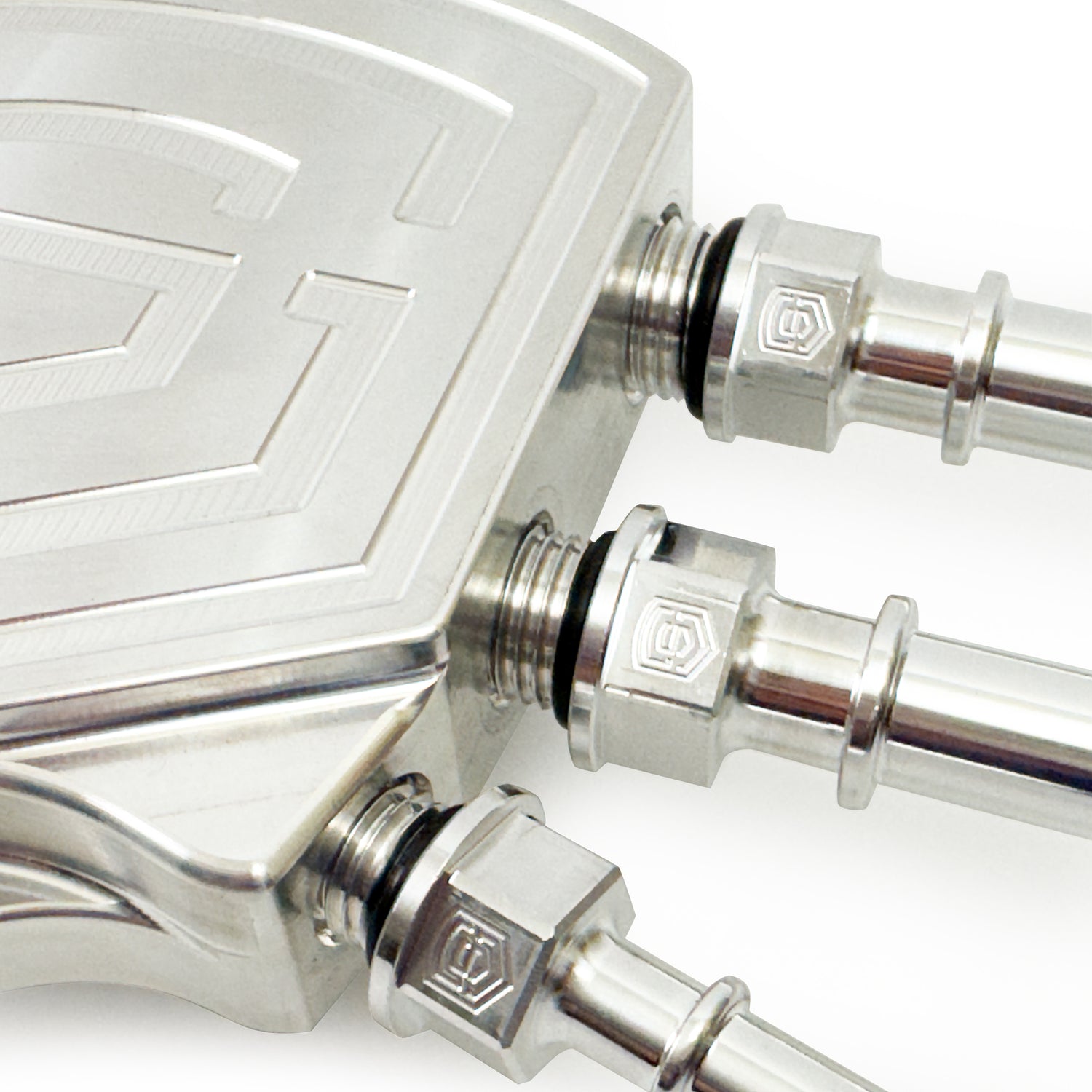

- Billet aluminum engine-mounted fuel filter housing

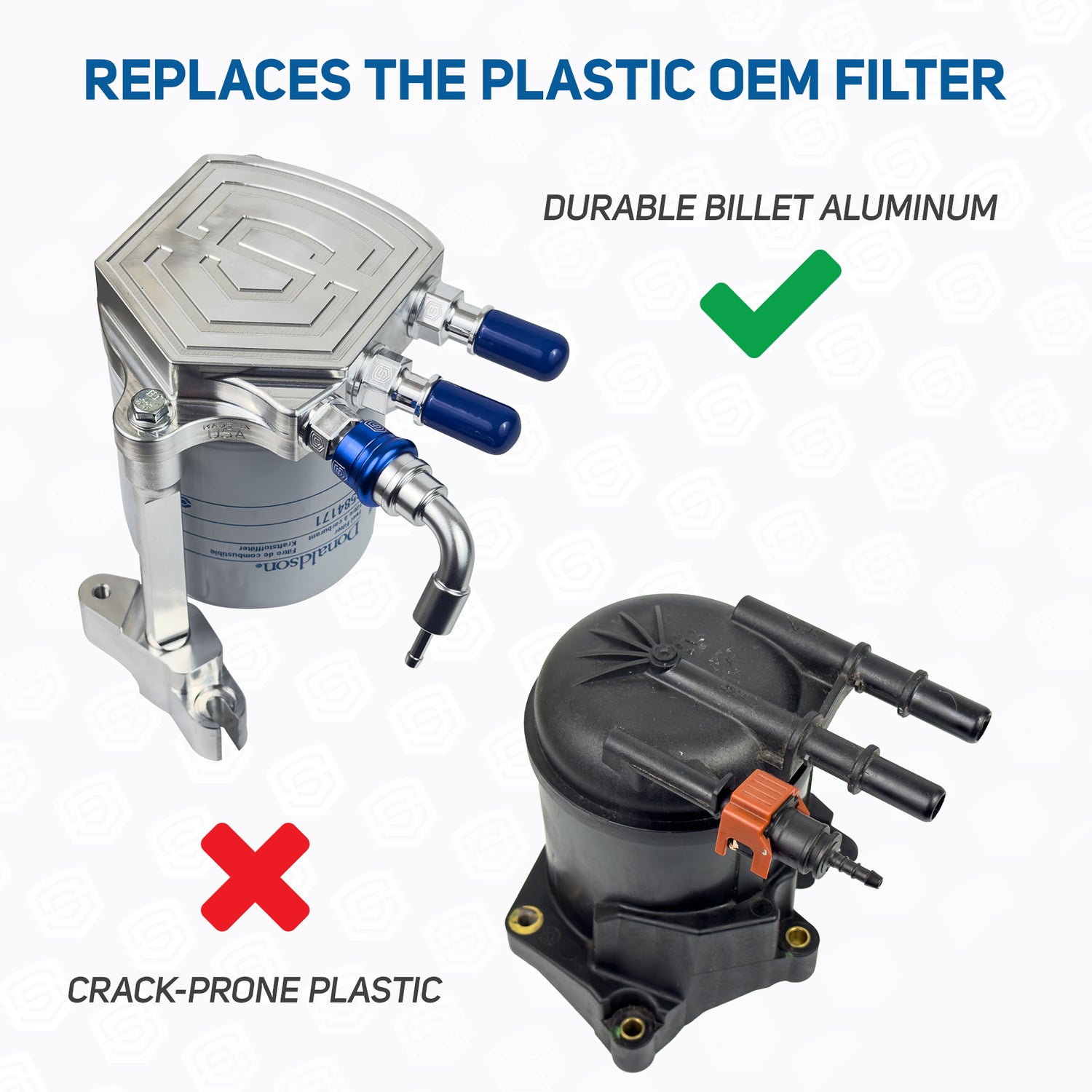

- Replaces the crack-prone plastic OEM fuel filter
- OEM-spec filtration — 4-micron absolute at 99% efficiency
- Exceeds OEM dirt holding capacity — S&S 23 grams vs. OEM 12 grams
- Bolt holes machined to accept 8mm Allen for easy filter removal

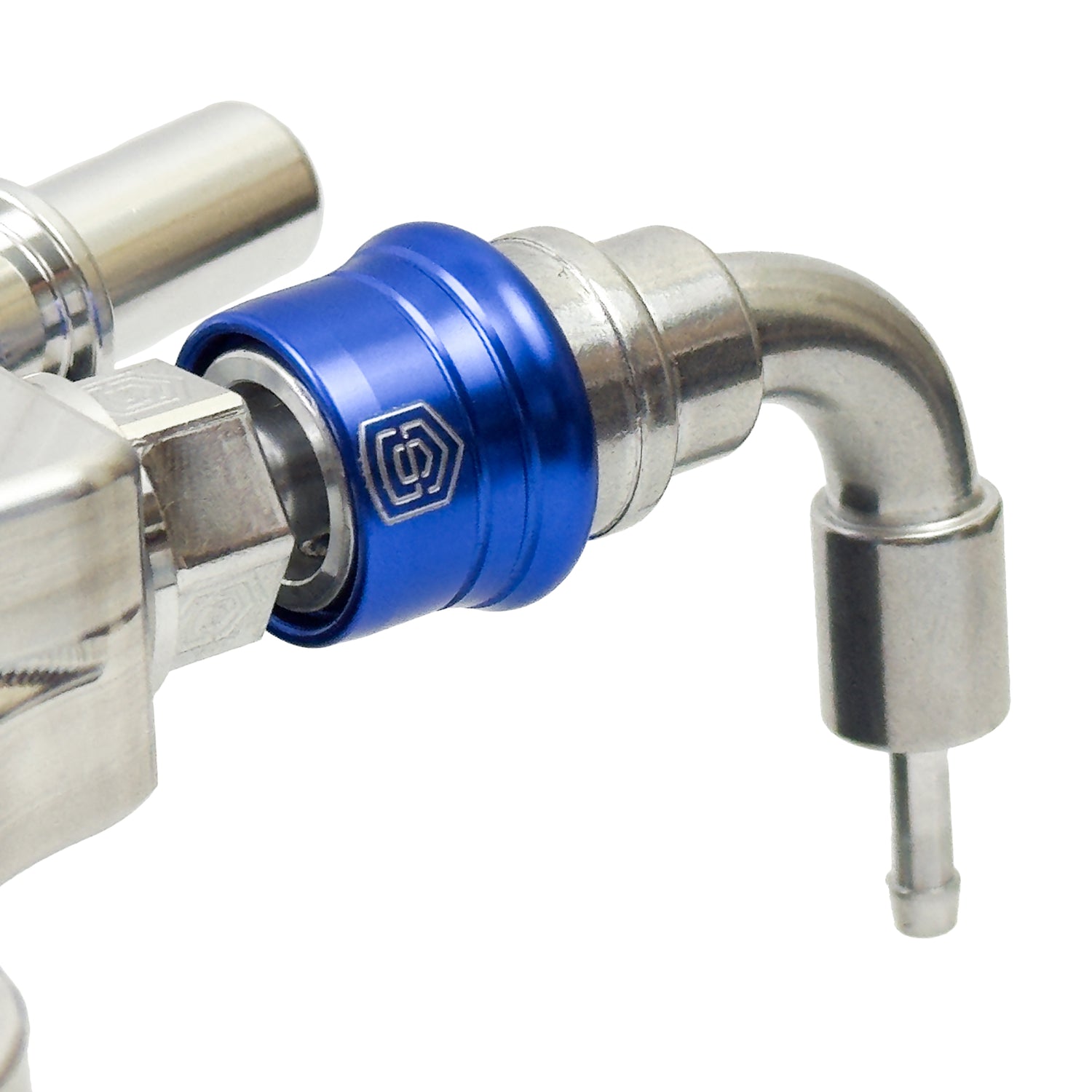

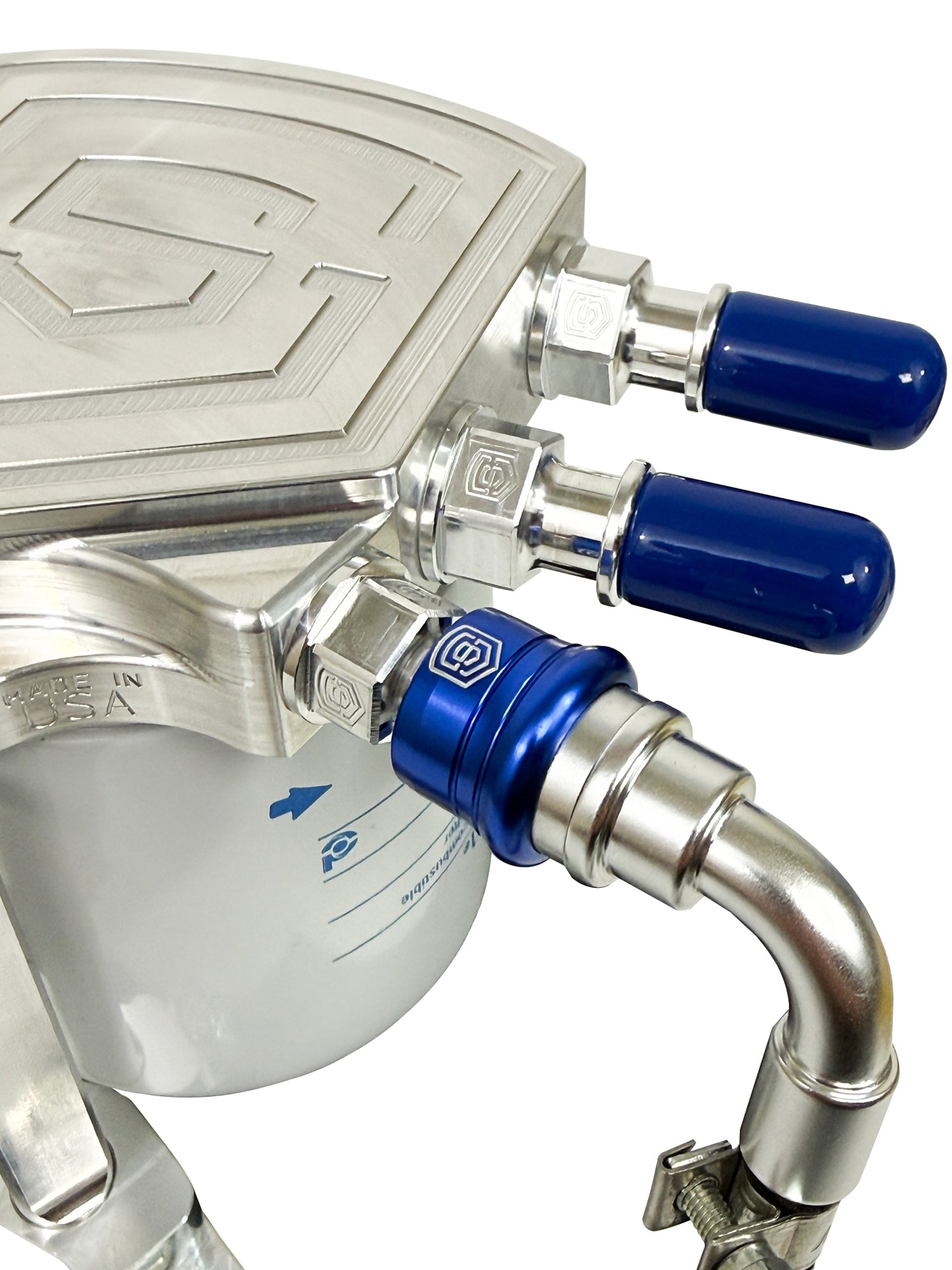

- Aluminum Fuel Leak Prevention Fitting replaces the brittle plastic OEM injector return fitting
- Durable aluminum hose barb
- Easy-release quick connect
- Perfect complement to the Ford 6.7L Disaster Prevention Kit, the DCR Pump Conversion, or completely stock fuel systems
- SEMA Category 4 – Replacement Part

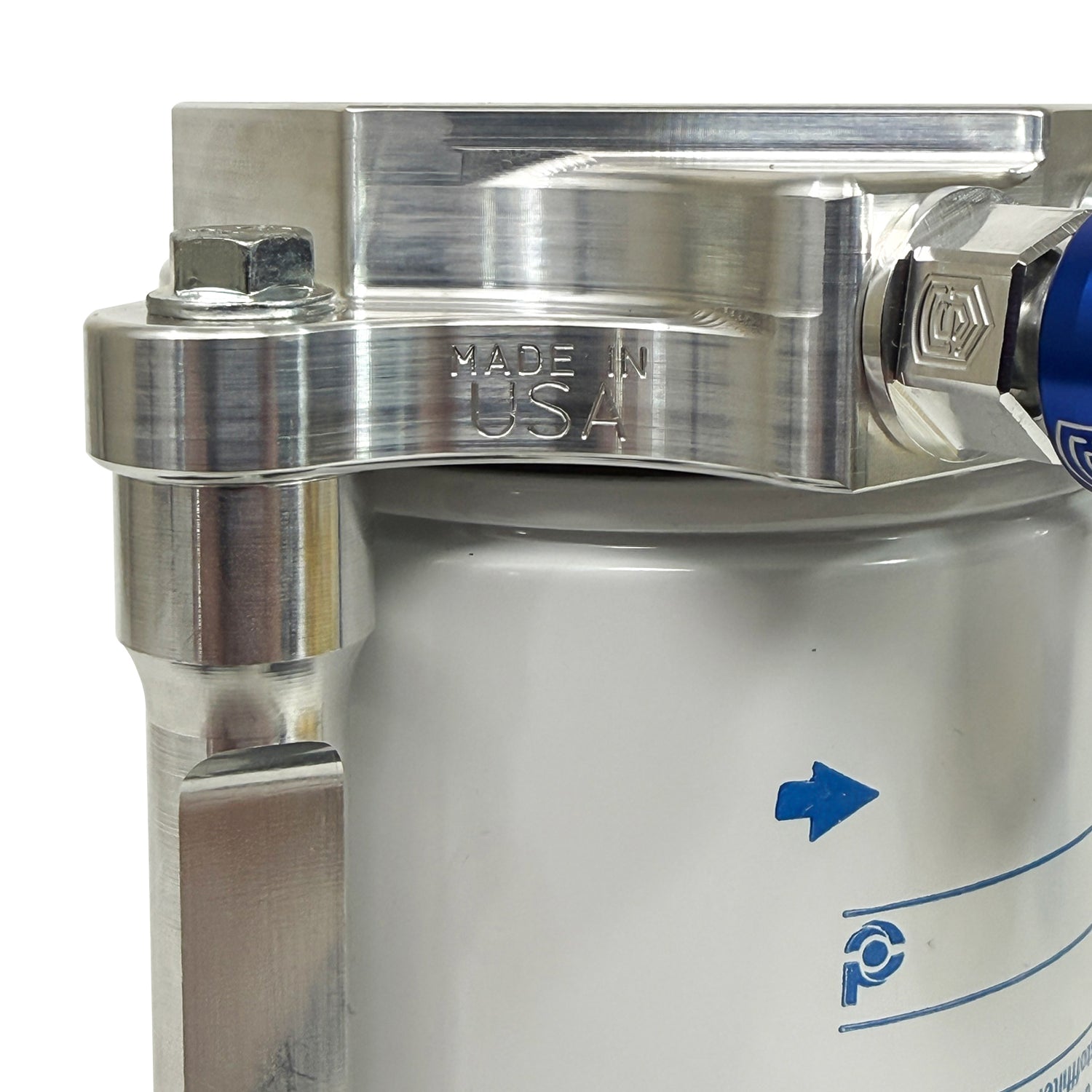

- Made in the USA
Fitment
2017-2026 Ford F250 through F750 trucks with the 6.7L Power Stroke diesel.
