This product is built to order. Please allow up to 7–12 business days for processing and fulfillment.

PMF  |  SKU: PMF-FRD-3075

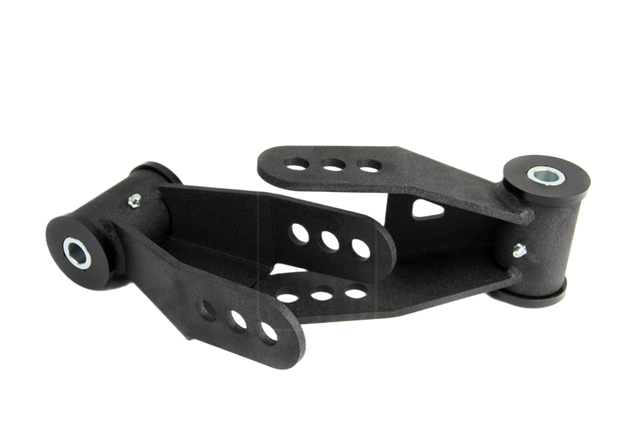

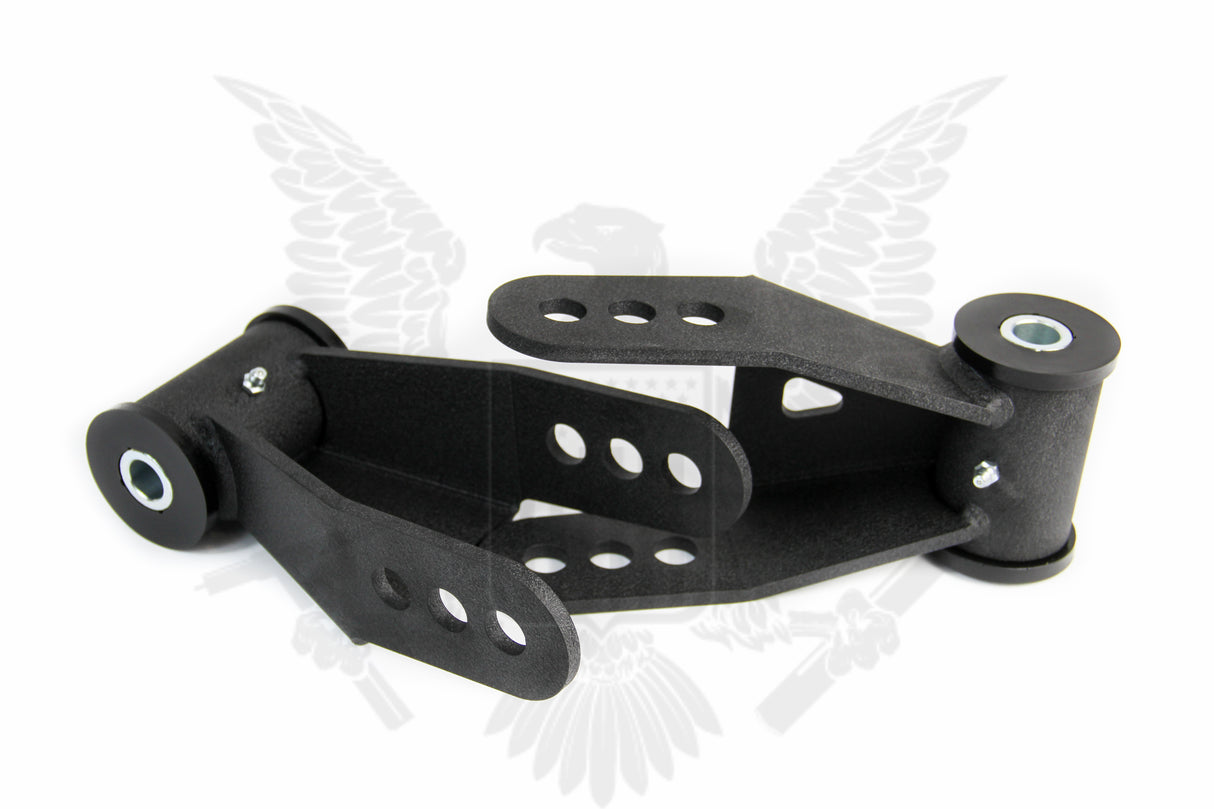

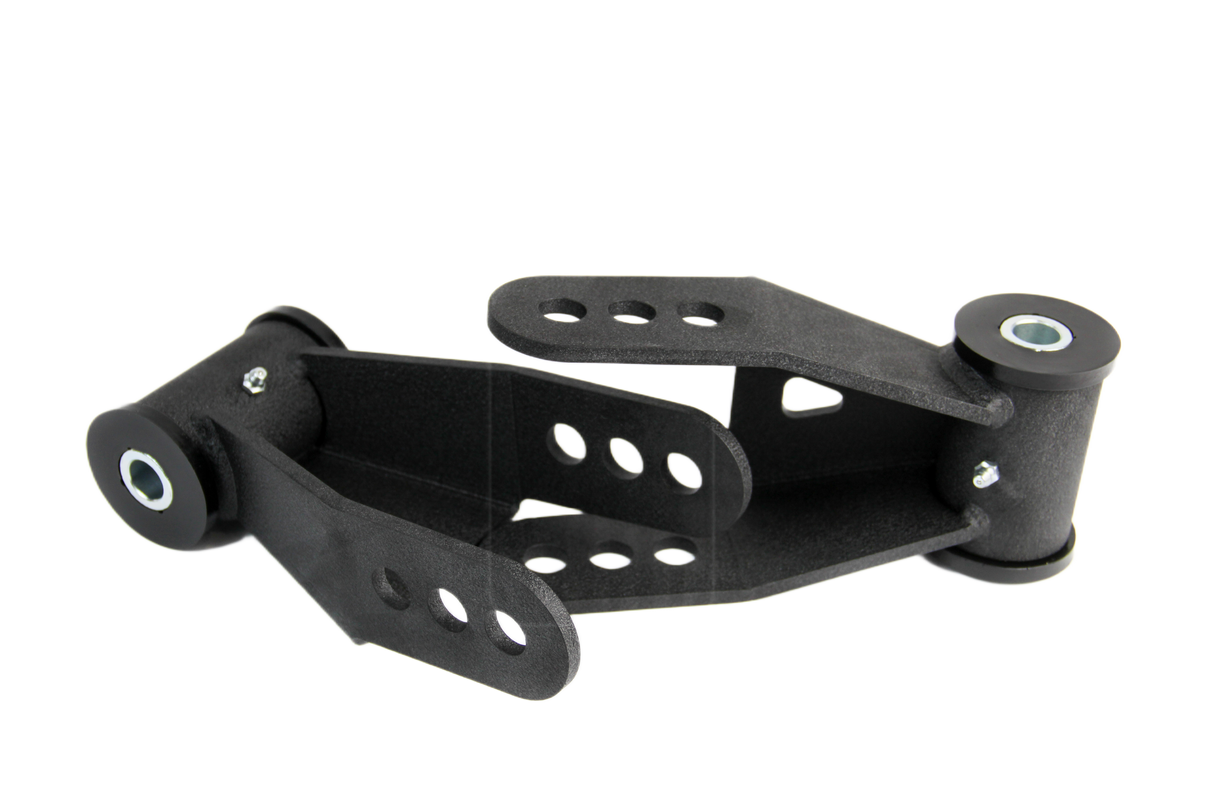

PMF 1999-2026 FORD F-250/350 REAR LOWERING SHACKLES

USD 14999

Can I pick up my order or have it installed at your shop?

Yes! We offer local pickup on most products and professional installation at our shop at 25 Town and Country Drive, Washington, MO. 63390. Contact us at 636-429-7020 to schedule a time to come in.

How do I know if this part fits my vehicle?

If no fitment info is listed, contact us at 636-429-7020 with your vehicle’s year, make, and model — we’ll help you find the right part.

What if I need to return a product or it’s defective?

Most items can be returned within 30 days if unused and in original packaging. Many products also include a manufacturer warranty. Contact us at 636-429-7020 for assistance.

How can I track my order?

Once your order ships, you’ll get a tracking number via email to monitor your shipment.

Description

These heavy-duty rear lowering shackles are built for 1999–2026 Ford F-250, F-350, and F-450 trucks, including both 2WD and 4WD models. Unlike most lowering shackles on the market, these are manufactured from 1/4" laser-cut steel and DOM tubing for serious strength and long-term durability.

Each shackle uses a polyurethane bushing with a grease zerk and a heavy-duty zinc-plated inner sleeve. The longer shackle design can also allow the rear leaf spring to flex more freely, giving the truck a slightly softer ride feel.

Key Features

  • Fits rear of 1999–2026 Ford F-250, F-350, and F-450 trucks
  • Compatible with 2WD and 4WD models
  • Heavy-duty 1/4" laser-cut steel construction
  • DOM tubing for added strength
  • Polyurethane bushings with grease zerks
  • Zinc-plated inner sleeves
  • Three adjustable leaf spring mounting locations
  • Bolts in using OEM hardware
  • Payload capacity is not affected
  • Powder coated finish included standard
  • Manufactured in-house in the USA

Adjustable Rear Drop Amounts

These shackles feature three mounting holes, allowing the user to fine-tune rear ride height when used with OEM leaf springs.

Hole Position Approximate Rear Drop
Position 1 1/4"
Position 2 7/8"
Position 3 1.25"

Note: Aftermarket leaf springs may respond differently than OEM leaf springs.

Installation Notes

  • Installs at the rear side of the leaf spring only
  • May change leaf spring, axle, and pinion angle
  • Trucks with top-mounted overload springs may engage the overload sooner or differently
  • Pinion angle changes may cause vibration in some applications
  • Pinion shims may be required and are sold separately
  • Trucks with overload air bags may require mount modification or replacement
Important: These shackles lower only the rear side of the leaf spring. Always verify driveline angle, overload spring clearance, and air bag mount compatibility after installation.
