RockJock Johnny Joint 2 1/2 in. End Forging - 1 1/4 in.-12 LH Thread
Can I pick up my order or have it installed at your shop?
Can I pick up my order or have it installed at your shop?
Absolutely. We offer local pickup on most products and full professional installation at our shop in Washington, MO. Whether you just want to grab your parts or have our techs handle the install, we’ve got you covered. Give us a quick call at636-429-7020or message us to schedule a visit — we’ll make sure the parts are ready when you arrive.
How do I know if this part fits my vehicle?
How do I know if this part fits my vehicle?
Unsure if it’ll fit? No problem — that’s what we’re here for. Send us your vehicle’s year, make, and model, and we’ll verify fitment before you order. We can also point you toward compatible upgrades or supporting parts if needed.
What if I need to return a product or it’s defective?
What if I need to return a product or it’s defective?
Most unused items can be returned within 30 days in their original packaging. Some products are covered by a manufacturer’s warranty as well. If something arrives damaged or doesn’t meet your expectations, just let us know — we’ll help you get it replaced, refunded, or repaired. (Tracking updates are also emailed automatically once your order ships.)
What's the lead time on custom or fabricated parts?
What's the lead time on custom or fabricated parts?
Many of our parts are built to order — especially fabricated or performance components. These can take additional time to produce before shipping. Lead times vary by manufacturer and demand, but we’ll always keep you updated along the way. If you’re working on a tight schedule, reach out before ordering at636-429-7020and we’ll confirm current availability or estimated ship dates.
Description
Description
RockJock's Johnny Joint Rod Ends have been a staple in the off road industry since 1996! Available universally for builders or found in our RockJock suspension components, John Currie’s proven formula provides a reliable, greasable, rebuildable joint that is capable of dramatic articulation in off-road applications, while still providing smooth, cushioned, quiet performance during on-road use.
Johnny Joints are available as a forged rod end with various RH and LH thread sizes from 3/4 in. up to a massive 1 1/2 in. thread! Additionally, weld-on versions of all Johnny Joints are available for fabricators.
Specialty joints, such as polished stainless steel, long body and bent forgings and application specific machined joints are all available for custom builder use.
All sizes of joints offer a standard or a narrow width joint body which provide different levels of overall articulation range (30 plus degrees on a standard body and up to 40 plus degrees on a narrow body). The narrow body’s 1 piece bushing will provide a slightly firmer ride.

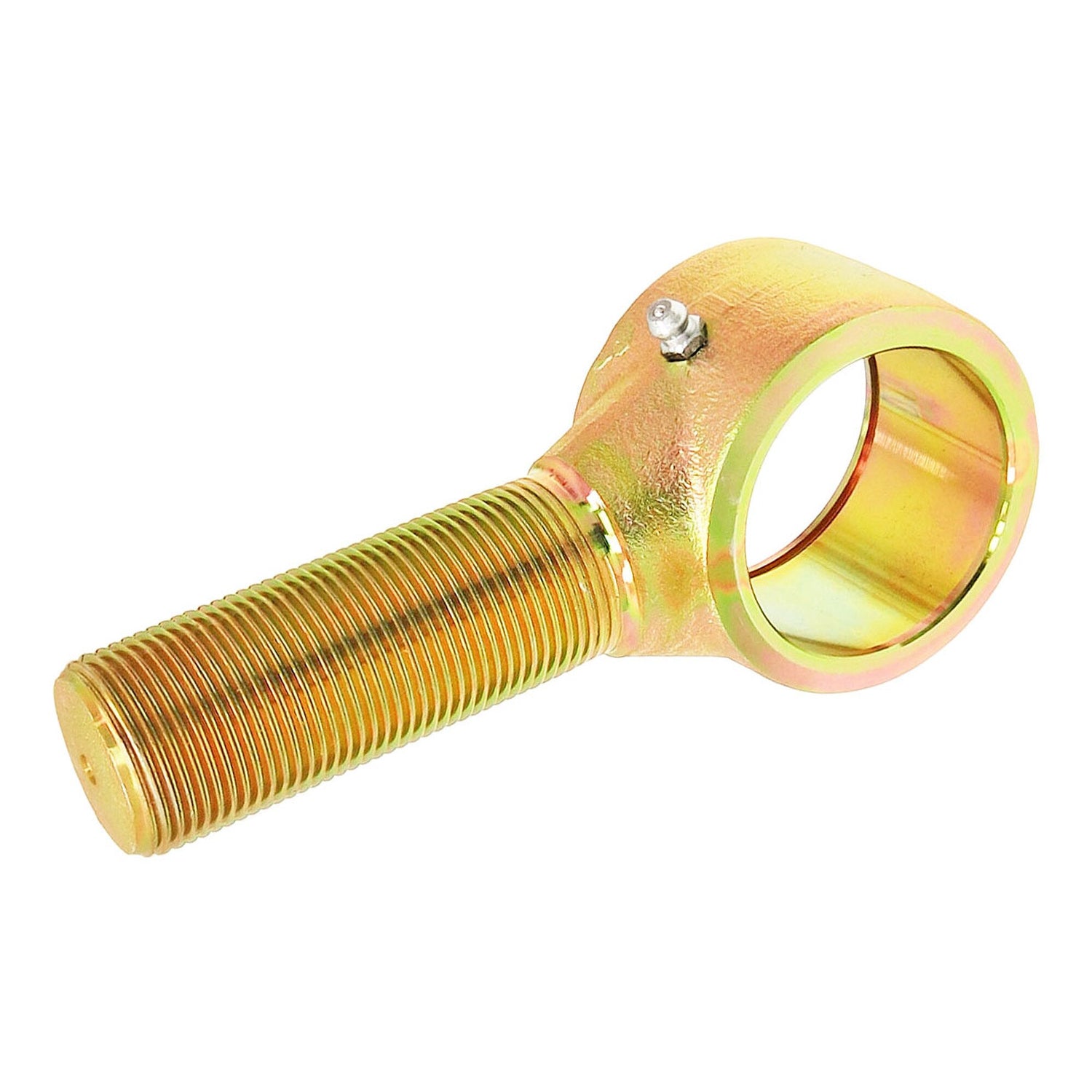

This Johnny Joint End Forging is a standard width, forged steel body that includes a 2 1/2 in. Johnny Joint barrel and 3.25 in. of 1 1/4 in.-12 LH threads.
The Johnny Joint barrel features a lip in one end of the bore that is the stop for the internals and a snap ring groove at the opposite end of the bore to retain the internals. Barrel accepts the 2 piece bushing style internals and will accept any 2 1/2 in. pivot ball that we make (2.365 in. width and wider).
Greasing is handled externally, via the installed 1/4 in.-28 zerk fitting.
End Forging Fits:
- Universal Application
End Forging Includes:
- (1) Johnny Joint End Forging
End Forging Features:
- Forged steel construction
- 2 1/2 in. O.D. x 2 in. wide joint outer barrel
- 3.25 in. of 1 1/4 in.-12 LH threads
- 4.94 inches from CL of joint to end of threads
- Accepts 2-piece bushing internals
- Accepts any 2 1/2 in. pivot ball that we make (2.365 in. width and wider)
- 1/4-28 in. zerk fitting for greasing
Notes:
- See CE-9114LJN if a Jam Nut is required
- See CE-9114BL if a Weld-In Bung and Jam Nut are required
- See RJ-576200-102 if a RockNut is required
- Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G
- Applicable Johnny Joint Tool for this Rod End: CE-9110T
- *** IMPORTANT *** - joints require greasing at normal intervals, but they do not hold a lot of grease! Over greasing can cause damage to the joint. To prevent damage, use only a hand pump grease gun, do not expect the joint to take a lot of grease and DO NOT use pneumatic or electric grease guns!
