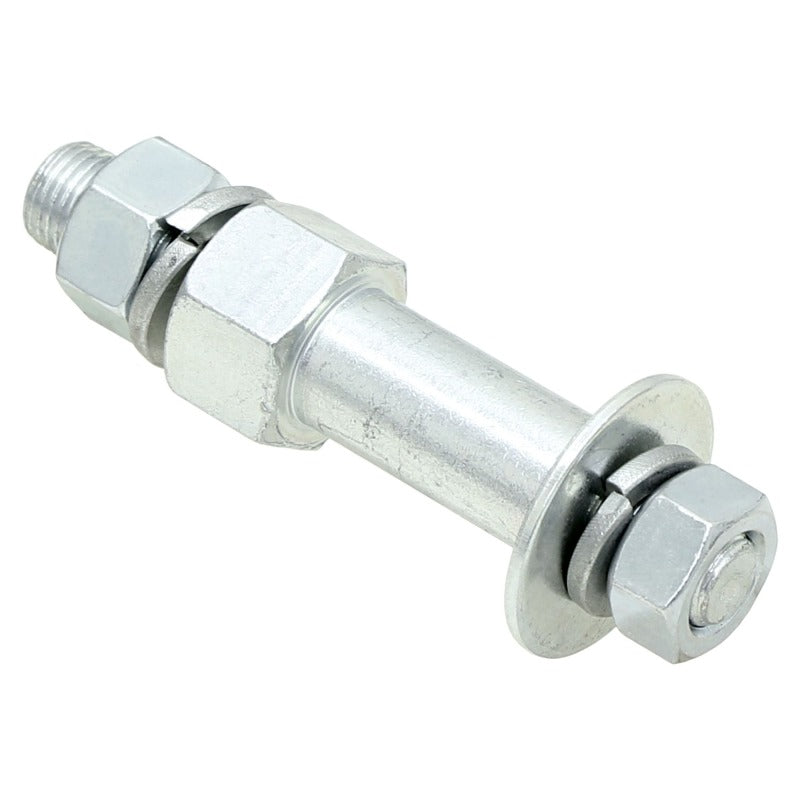

RockJock Stud Kit (7/16in. -20 & 1/2in. -20 Threads)

This RockJock Stud Kit can be used universally in essentially any application where it fits. It is included in our CE-9701SB Steering Stabilizer Shock Bracket Kit that is included in our CE-9701 TJ/LJ/XJ/MJ/ZJ Currectlync Steering System. Additionally, it is used as a sway bar stud in our front Spring Plate Kits for YJs and CJs
Available here as a replacement part or again, for universal usage.

Kit Fits:

• Universal Application
• Included in our CE-9701SB Steering Stabilizer Shock Bracket Kit
• Included in our CE-9031A CJ Front Spring Plate Kit
• Included in our CE-9031D CJ Front Spring Plate Kit
• Included in our CE-9031F YJ Front Spring Plate Kit
• Included in our CE-9031J YJ Front Spring Plate Kit

Kit Includes:

• (1)  Double Ended Stud
• All required hardware

Stud Specs.:

• Overall Length  =  3.610 in.
• Smooth Shank (where shock would ride)  =  5/8 in. OD
• Mounting Threads  =  1/2 in.-20
• Shock Retaining End Threads  =  7/16 in.-20

Notes:

• For universal use as a replacement part for studs found in RockJock kits such as our CE-9701SB Steering Stabilizer Shock Bracket Kit.
• Finished in clear zinc plating.

Parts List:  (not sold separately)

• Shock Stud
• 7/16 in.-20 Hex Nut
• 7/16 in. Lock Washer
• 7/16 in. x 1.25 in. OD Flat Washer
• 1/2 in.-20 Hex Nut
• 1/2 in. Lock Washer
• 5/8 in. x 1.25 in. OD Flat Washer
