Description
Description
The Stage 2 System is the first to include lower control arms and is the first system you'll be comfortable dragging over rocks. It includes all the components from the Stage 1.5 System with the addition of Heavy Duty Lower Control Arms (front/rear) to correct caster and increase durability off road. These lower control arms are designed to take abuse and are adjustable for low maintenance and worry free wheeling. This system will fit 35" tires with stock fenders or 37" tires with high fenders.
Fitments:
| Part # | Description |
|---|---|
| 8042-30 | JK / JKU 4-Door 3" Lift Stage 2 Kit (Fits 35" Tires, 37" with High Fenders) |
Fitment Notes:
- 2012+ JK's lifted over 2" will require exhaust spacers (5017), or a front aftermarket drive shaft to prevent interference with the exhaust.
- "3" and up lifts, aftermarket driveshafts are recommended. When a rear aftermarket driveshaft is used with the Stage 2 Suspension System, rear adjustable upper control arms must also be used to correct the rear pinion angle.
- Springs are designed to provide the advertised amount of lift with use of aftermarket bumpers, winches, & tire carriers. More lift will occur on vehicles in stock trim.
- Springs retain the factory rake of the vehicle where the rear is higher than the front. Vehicle should sit level when loaded. Request one size shorter rear springs to level the vehicle out when unloaded.
- Requires 16" or larger wheel diameter
Features:

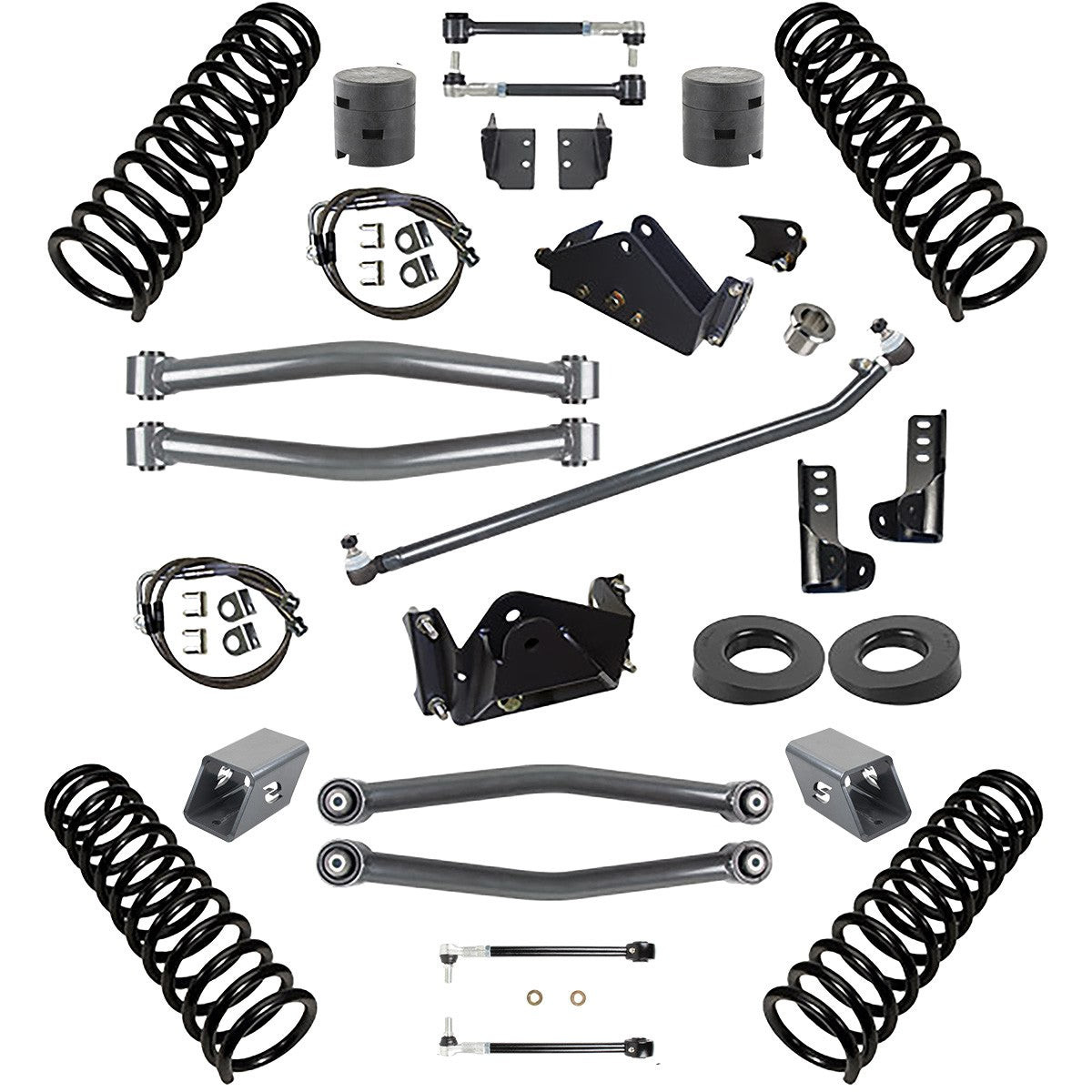

- Stage 2 key features are front and rear track bar relocation brackets, flipped drag link, and heavy duty fixed length lower control arms
- Front and rear bump stop extension kits
- Front and rear sway bar links
- Front and rear extended stainless steel braided brake lines
- Synergy double adjuster sleeve & pinch bolt assembly allows for adjustment of control arm, track bar, tie rod, and drag link length without removal
- Front and rear track bar relocation brackets raise track bar mounting positions increasing suspension roll center heights which improves handling on and off road
- Lower control arms manufactured from high quality crush resistant 1-3/4" X .188" Wall 1026 DOM tubing to increase durability and correct caster
- Features Synergy Dual Durometer Bushings (DDB) with Teflon® bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality.
- Front and rear lower shock mounts
- Optional front sway bar disconnect system for ultimate trail articulation mounts sway bar up and out of the way when disconnected from the axle
- Progressive wound coil spring manufactured using the latest in CNC hot winding technology keeps spring from coming unbound at full suspension droop
- Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
- 100% bolt on components assure an easy, trouble free installation with the use of basic hand tools
- Requires a maximum 4-3/4" backspace wheel or wheel spacer with factory wheel setup. 4-1/2" back spacing is recommended
