4.5-Inch Lift Kit for 2001-2010 Chevy Silverado + GMC Sierra 2500HD...
Description
Description

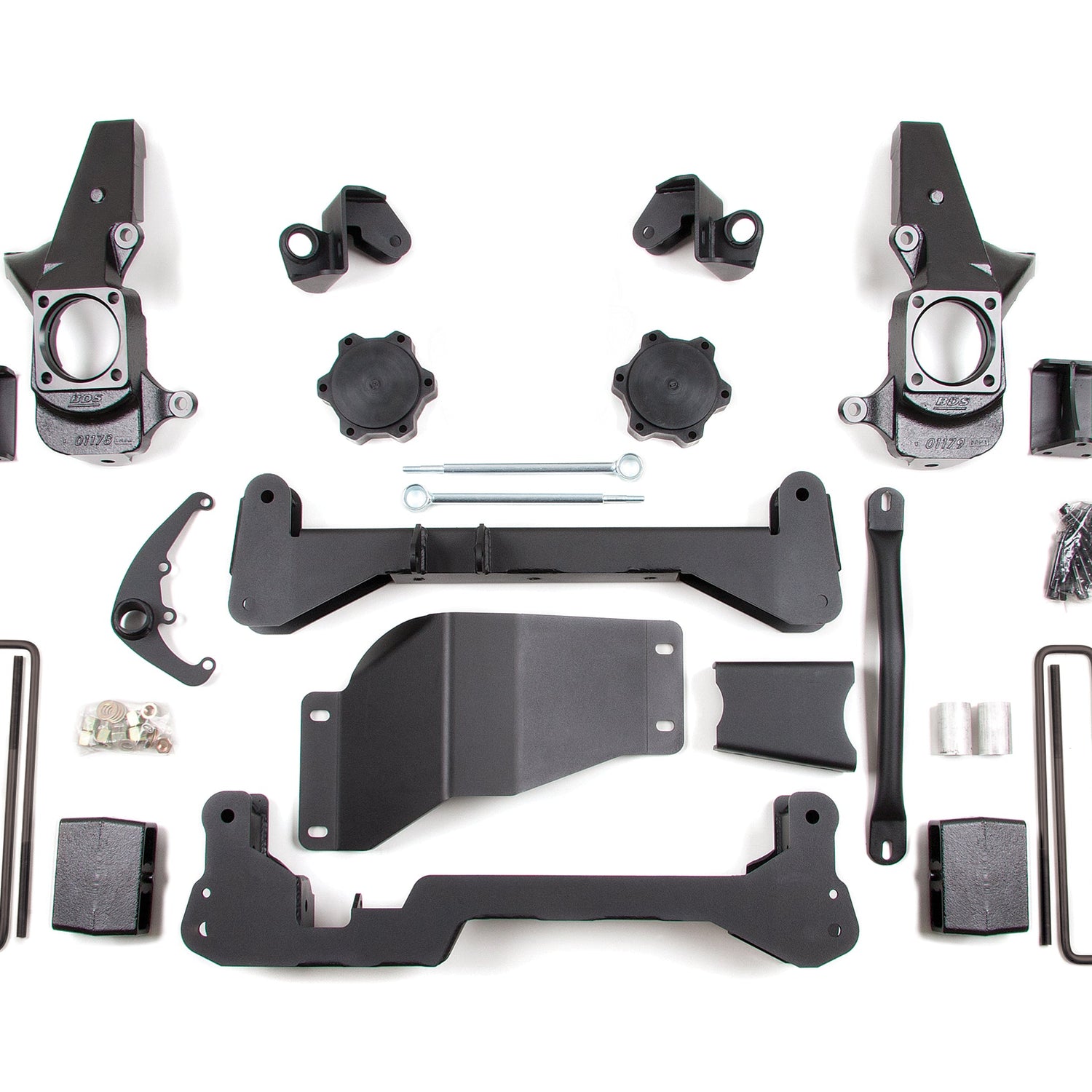

This kit features BDS's renowned high-clearance design for superior ground clearance, strength, and off-road protection. With torsion bar relocation brackets, heavy-duty skid plates, and CNC-machined ductile iron steering knuckles, this kit corrects suspension and steering geometry for exceptional on-road handling. Plus, included sway bar drops, bump stop extensions, brake line brackets, CV spacers, and more ensure a complete front suspension lift ready for any challenge.
Choose from a replacement lift block or full Glide-Ride leaf springs in the rear to lift and level your truck's stance. With new u-bolts, brake line brackets
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function..
Track Width Option
This system is available with two different knuckle designs. The standard knuckle widens the track width, but does not affect the turning radius. The narrow track knuckle reduces the total track width change by about 1.5" overall but does increase the turning radius slightly.
Shock Option

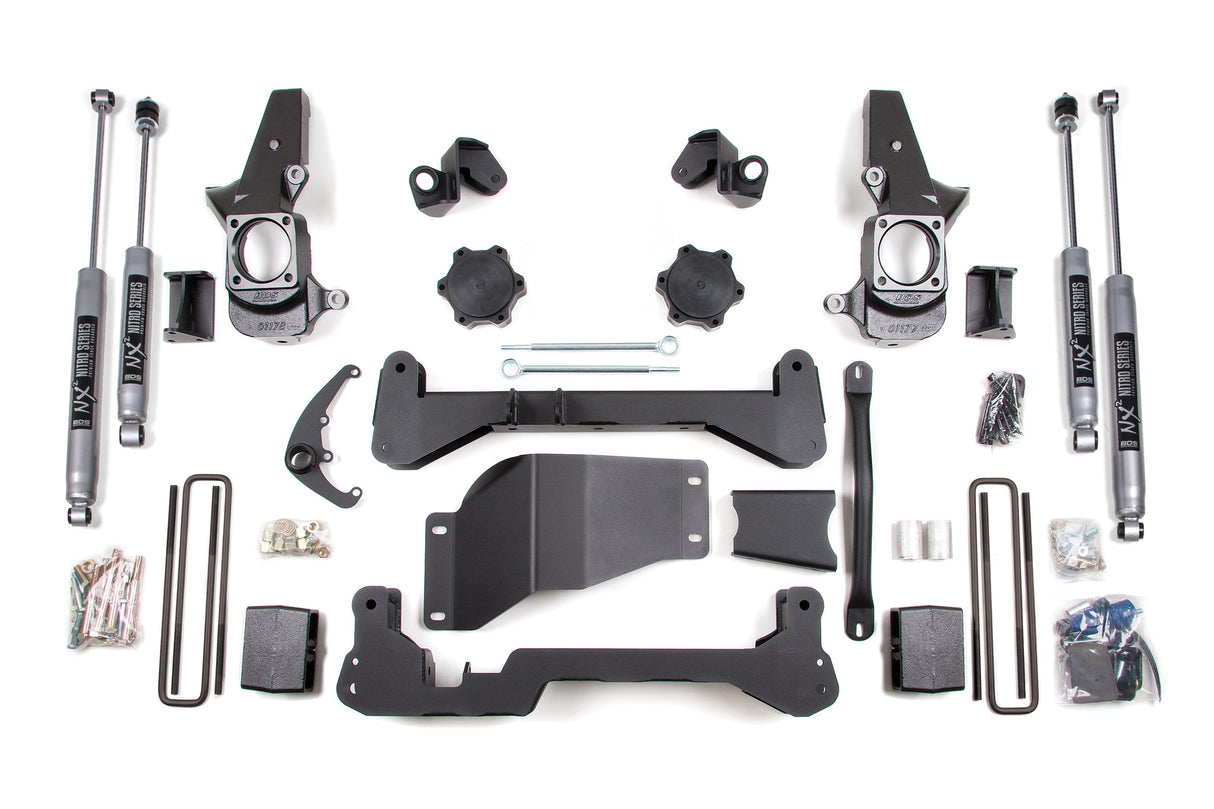

NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish

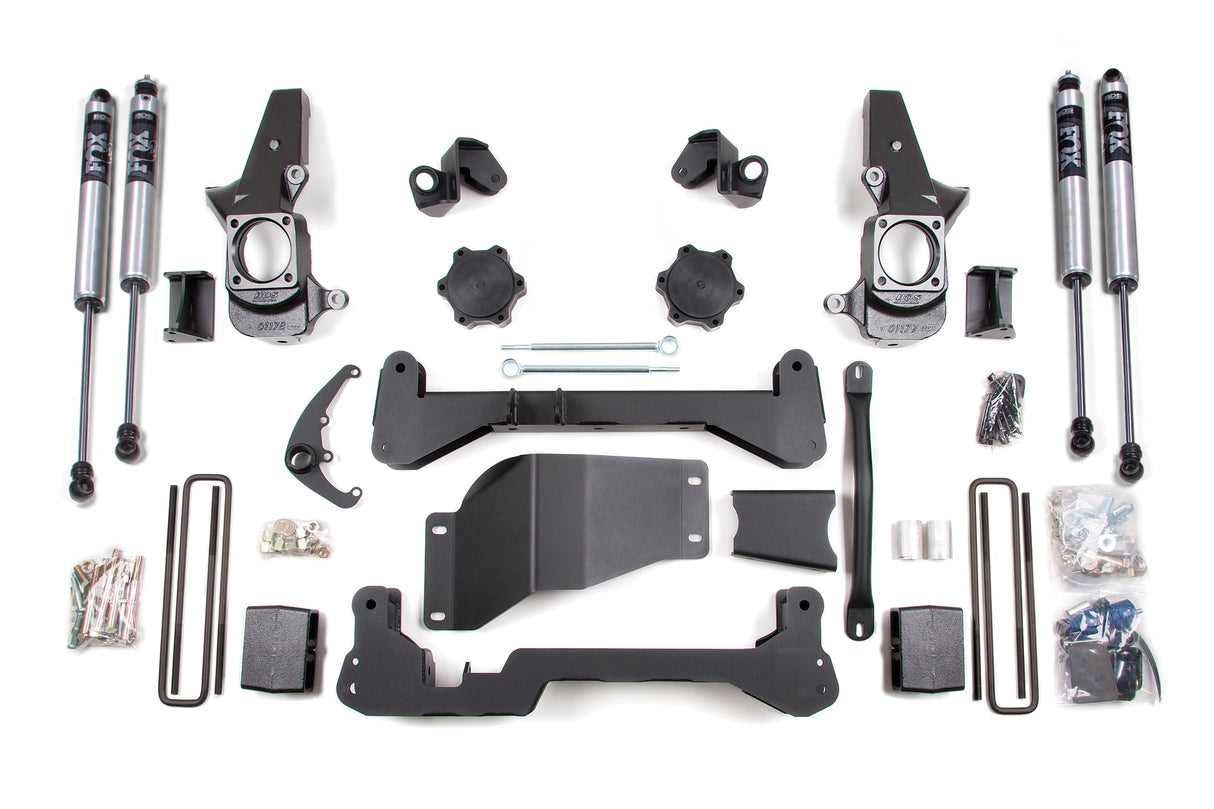

FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Features & Benefits
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
- Choice of NX2 or FOX 2.0 gas shocks for improved performance
Recommended Tires & Wheels
(Trimming may be required)
- 33 x 12.5 with 17 x 9 and 5.5 in. Backspace
- 33 x 12.5 with 18 x 9 and 5.5 in. Backspace
- 33 x 12.5 with 20 x 9 and 5.75 in. Backspace
2001-2010 Chevy Silverado + GMC Sierra 2500HD/3500 SRW 4WD 4.5-Inch Lift Kit | SKU BDS1817FS
