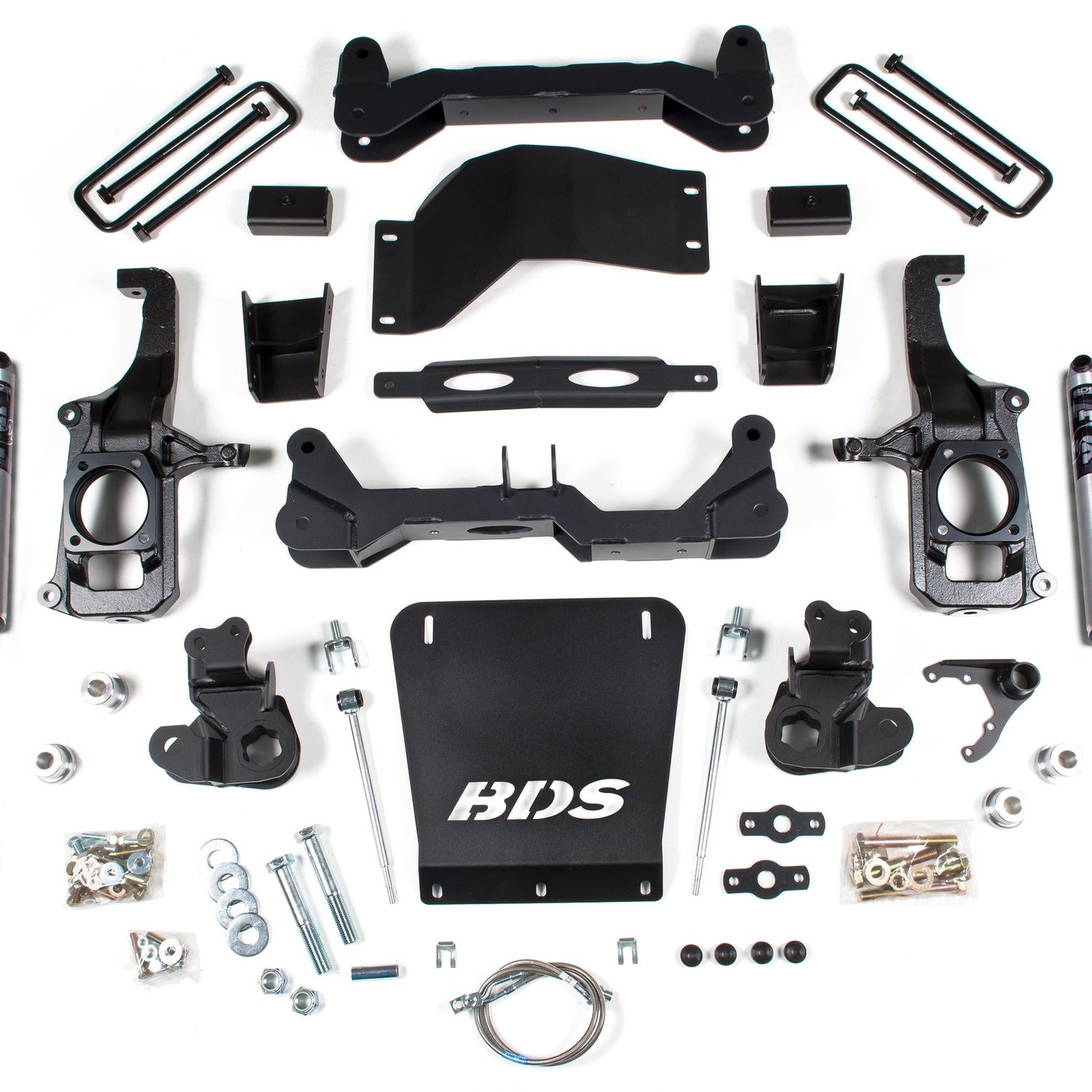

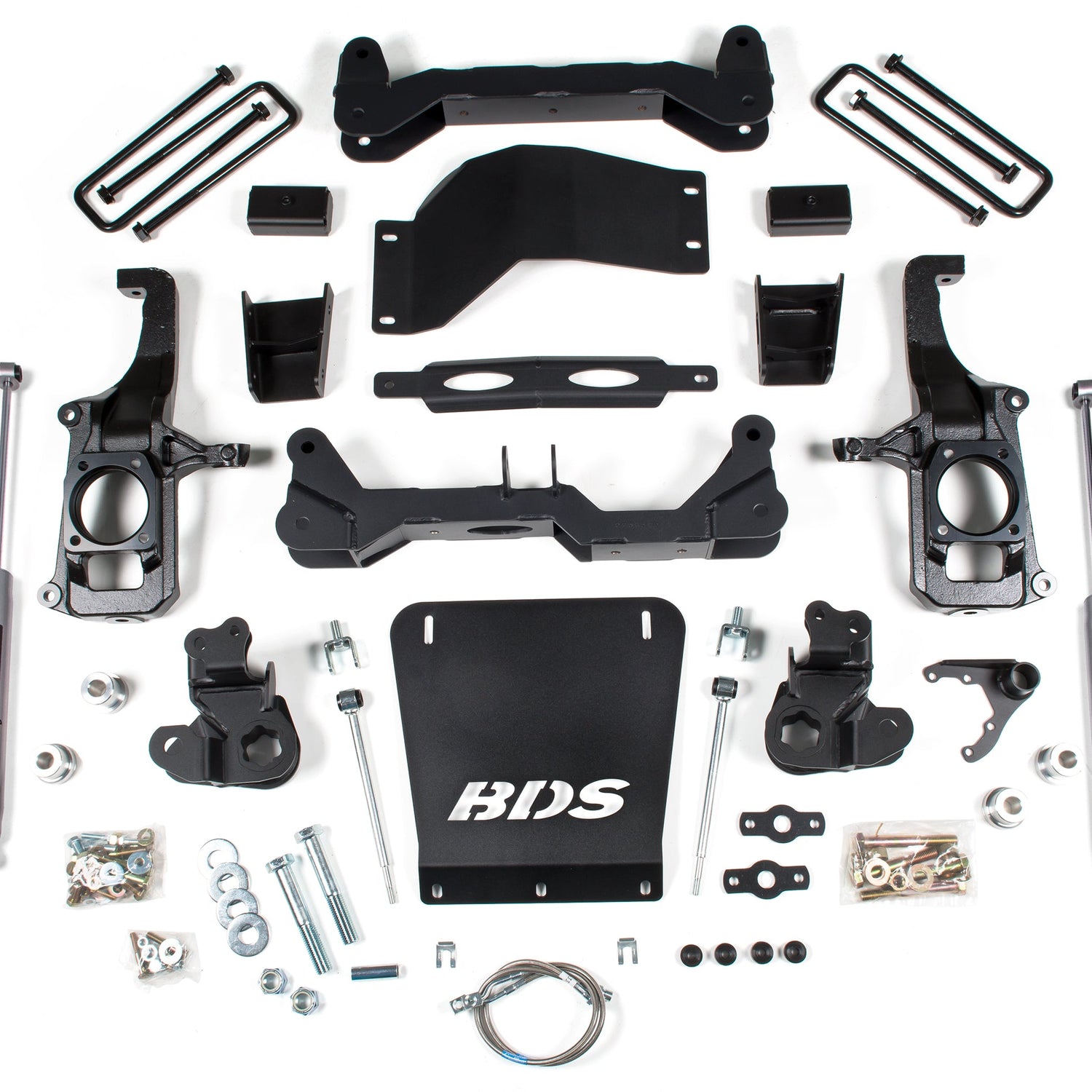

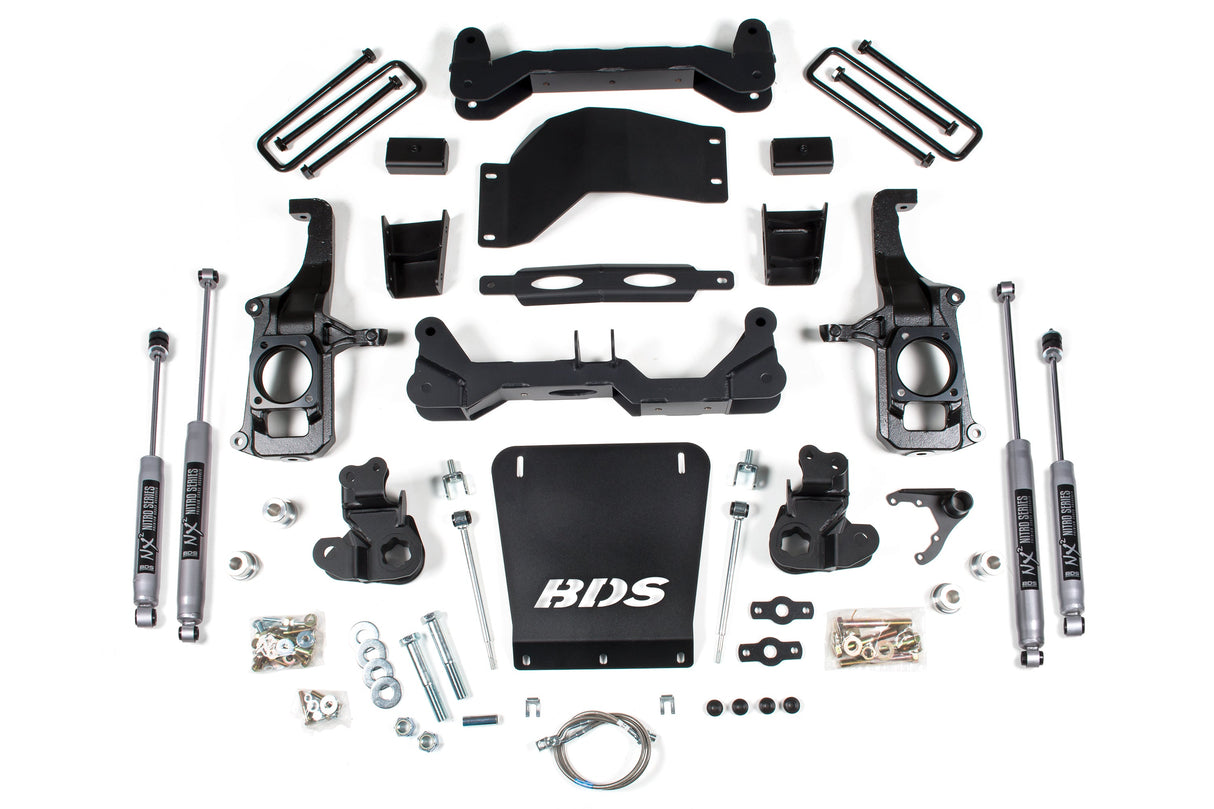

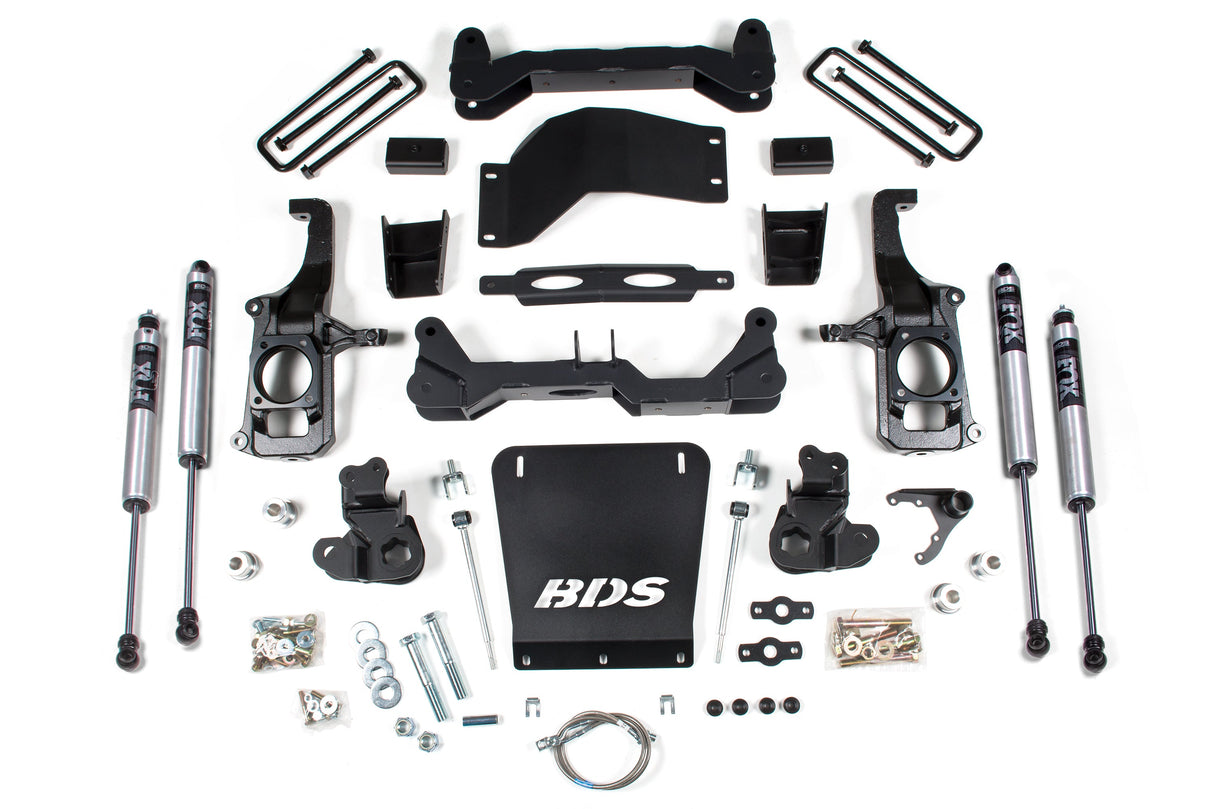

4.5-Inch lift Kit for 2011-2019 Chevy Silverado + GMC Sierra 2500HD/3500HD
Couldn't load pickup availability
Can I pick up my order or have it installed at your shop?
Can I pick up my order or have it installed at your shop?
Yes! We offer local pickup on most products and professional installation at our shop at 25 Town and Country Drive, Washington, MO. 63390. Contact us at 636-429-7020 to schedule a time to come in.
How do I know if this part fits my vehicle?
How do I know if this part fits my vehicle?
If no fitment info is listed, contact us at 636-429-7020 with your vehicle’s year, make, and model — we’ll help you find the right part.
What if I need to return a product or it’s defective?
What if I need to return a product or it’s defective?
Most items can be returned within 30 days if unused and in original packaging. Many products also include a manufacturer warranty. Contact us at 636-429-7020 for assistance.
How can I track my order?
How can I track my order?
Once your order ships, you’ll get a tracking number via email to monitor your shipment.
4.5-Inch lift Kit for 2011-2019 Chevy Silverado + GMC Sierra 2500HD...
Description
Description
The included components ensure proper truck setup and allow for clearance of up to 35" tires. With a tried and true high-clearance design, this kit improves ground clearance, strength, and offroad protection, while also correcting suspension and steering geometry for improved on-road handling.
The front of the kit features torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and heavy-duty skid plates for added offroad protection. CNC-machined ductile iron steering knuckles and other
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function.
Features & Benefits
- High Clearance design w/ no torsion bar drop maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
- Choice of NX2 or FOX 2.0 gas shocks for improved performance
Recommended Tires & Wheels
(Trimming may be required)
- 35 x 12.5 with 17 x 8 and 4.625 in. Backspace
- 35 x 12.5 with 18 x 9 and 4.625 in. Backspace
- 35 x 12.5 with 20 x 9 and 6 in. Backspace
NOTES:
- Torsion Bar Tool required to load/unload the torsion bars.
- Stock 17" & 18" wheels cannot be reinstalled.
- Stock 20" wheels cannot be reinstalled on 2015-2019 models
- Factory dually wheels cannot be reinstalled.
- Models with two-piece rear driveshaft may require #121612.
- Top mounted rear overload spring-equipped models require a different kit than non-overload equipped models. Be sure to select the correct option for your truck.
- Depending on the specific wheel and tire combination trimming may be required for 35x12.50s
4.5-Inch lift Kit for 2011-2019 Chevy Silverado + GMC Sierra 2500HD/3500HD | SKU: BDS719FS
