07-17 JEEP JKU 3.0" COMMUTER 2.0 SYSTEM, BASE, 4X4
Description
Description

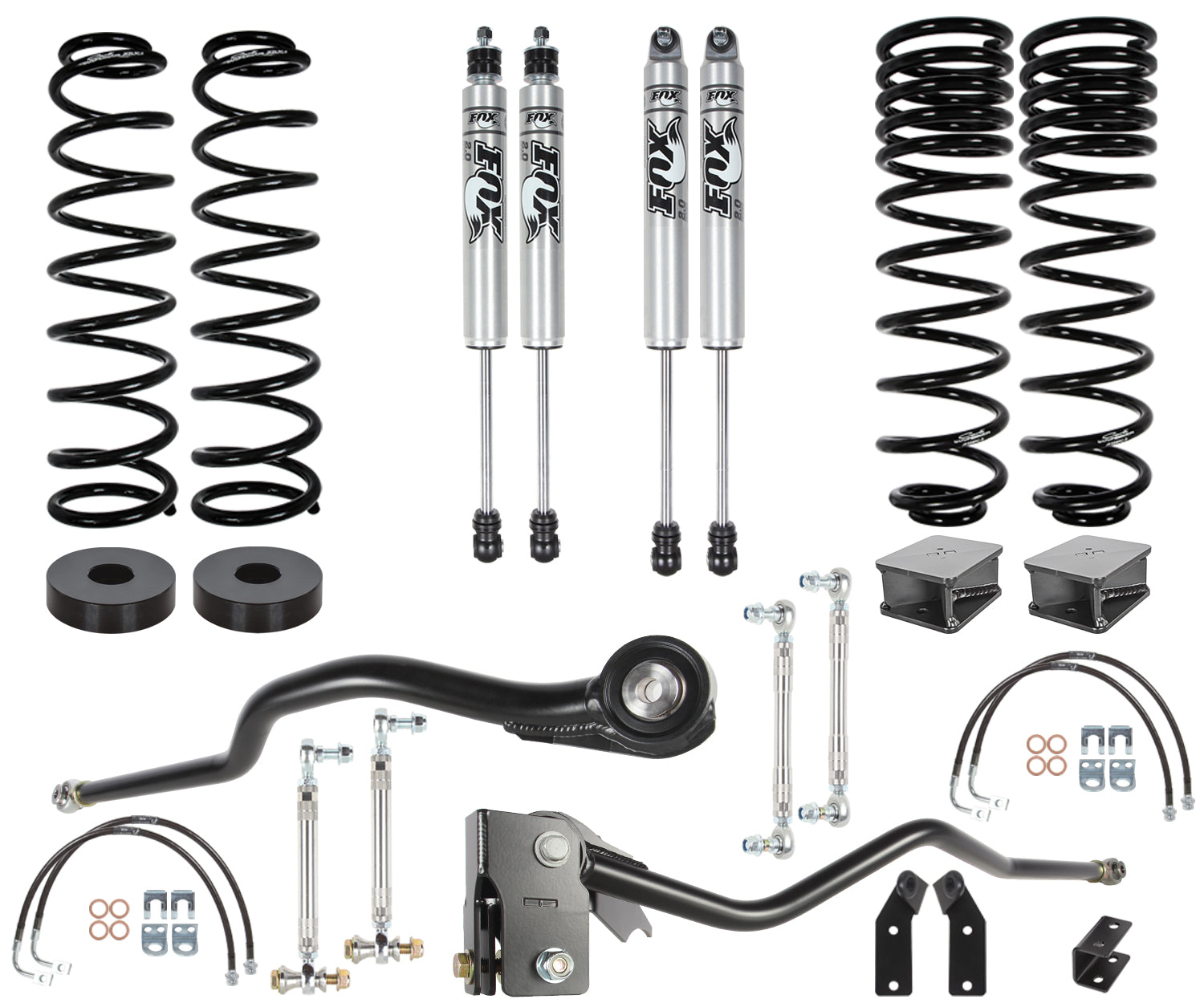

Jeep JKU Commuter 2.0 System

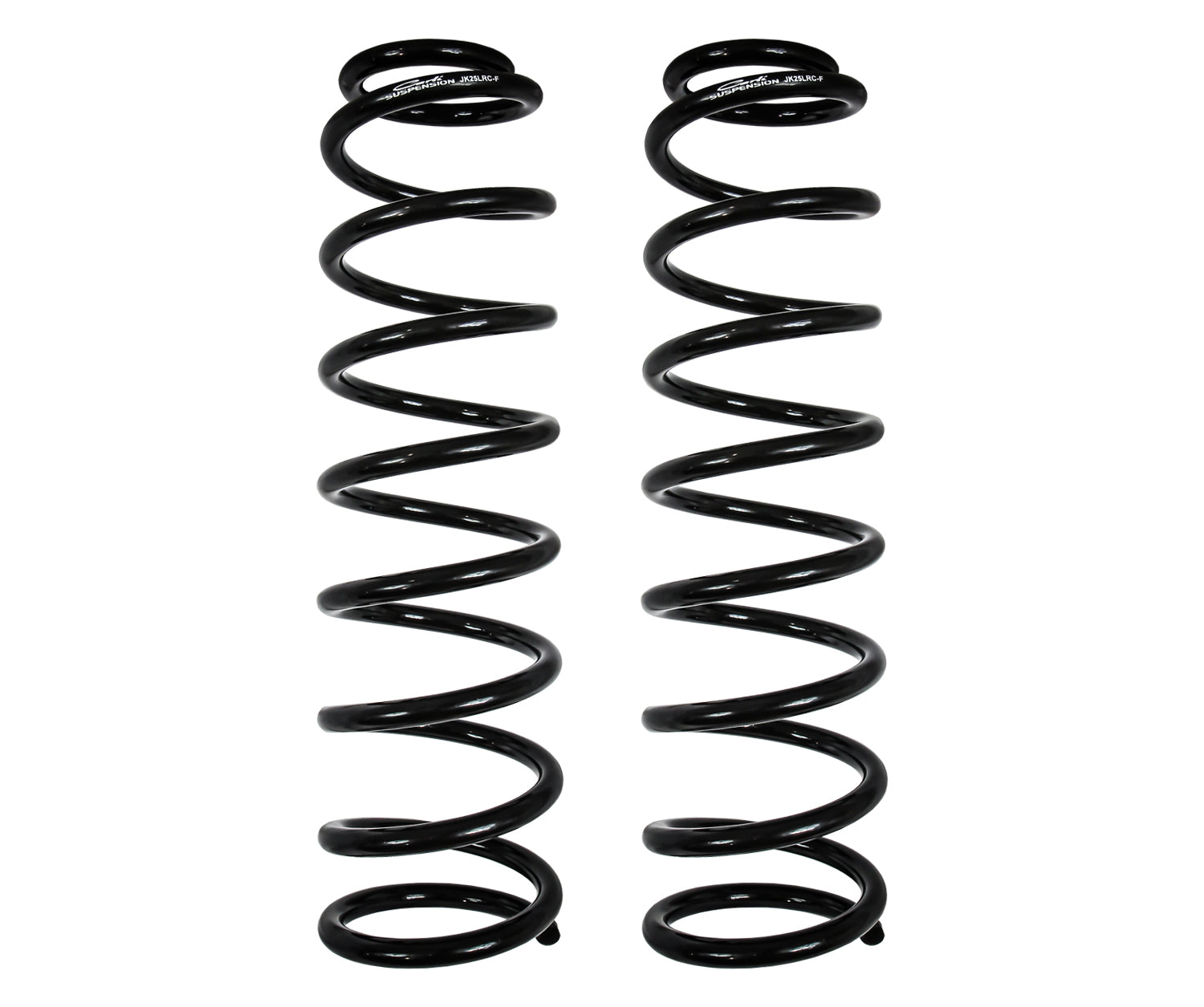

The front linear rate Carli springs will lift your Jeep JKU 3.0” while the rear is lifted 2.5” utilizing progressive coil springs.
Front Suspension

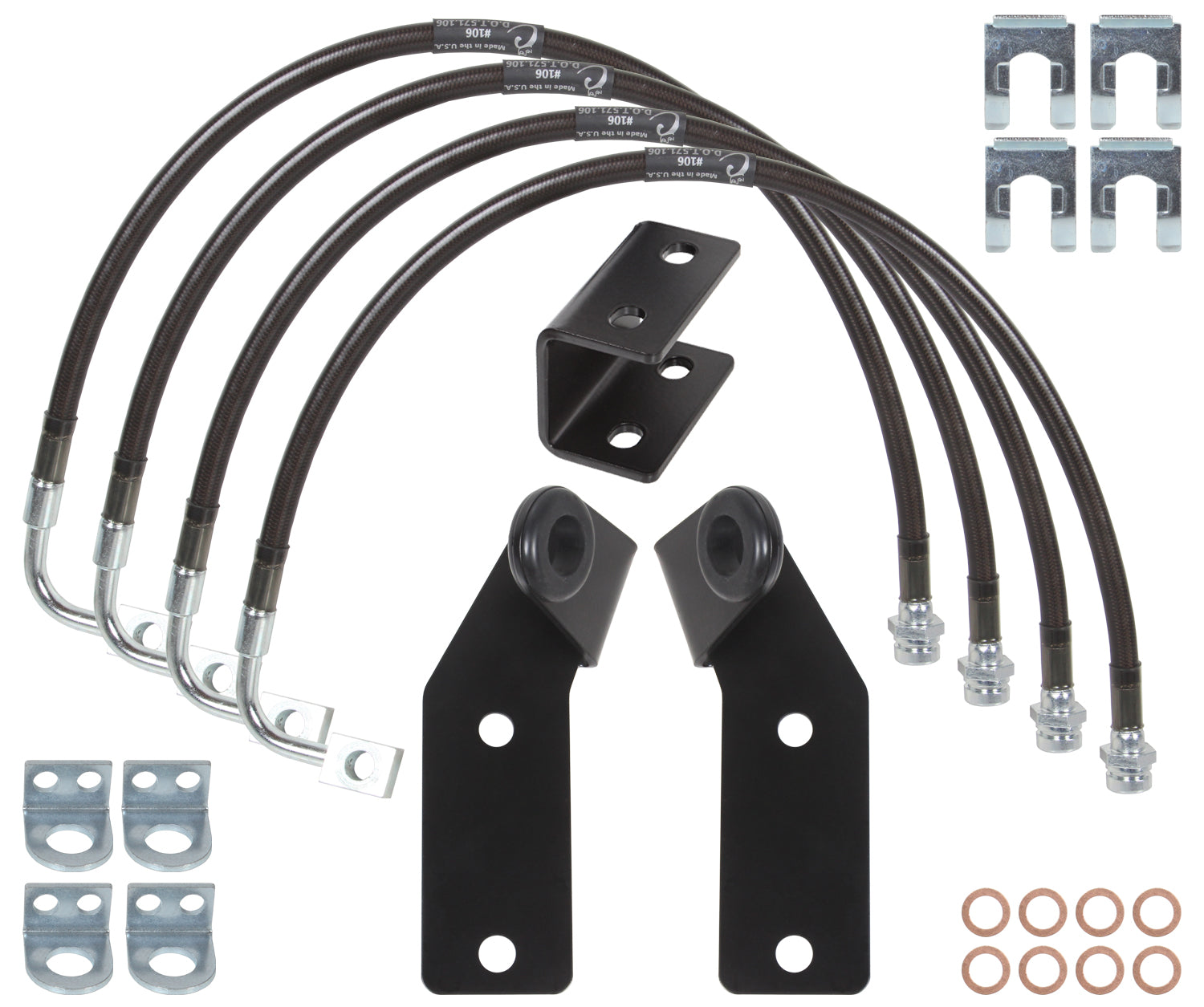

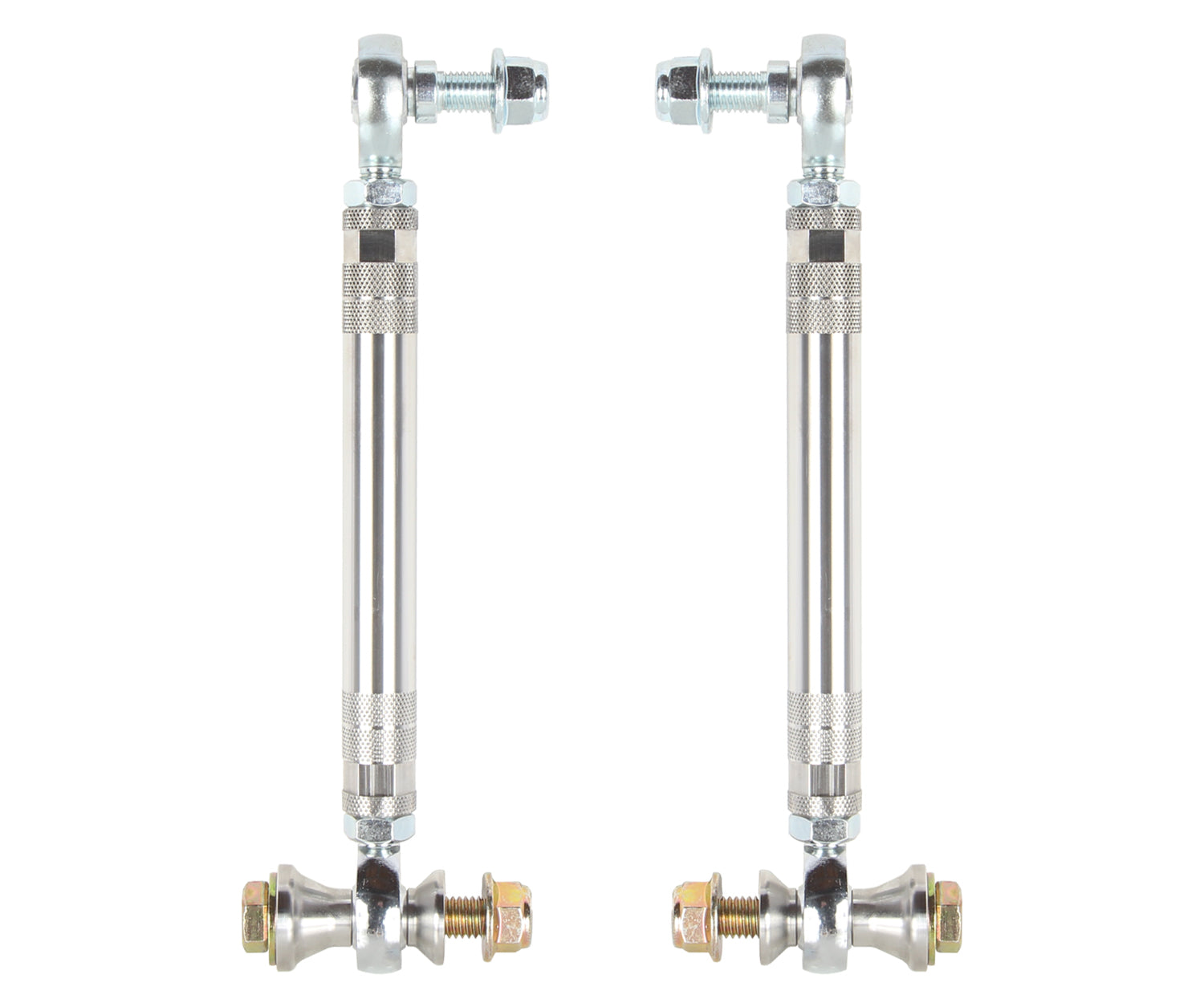

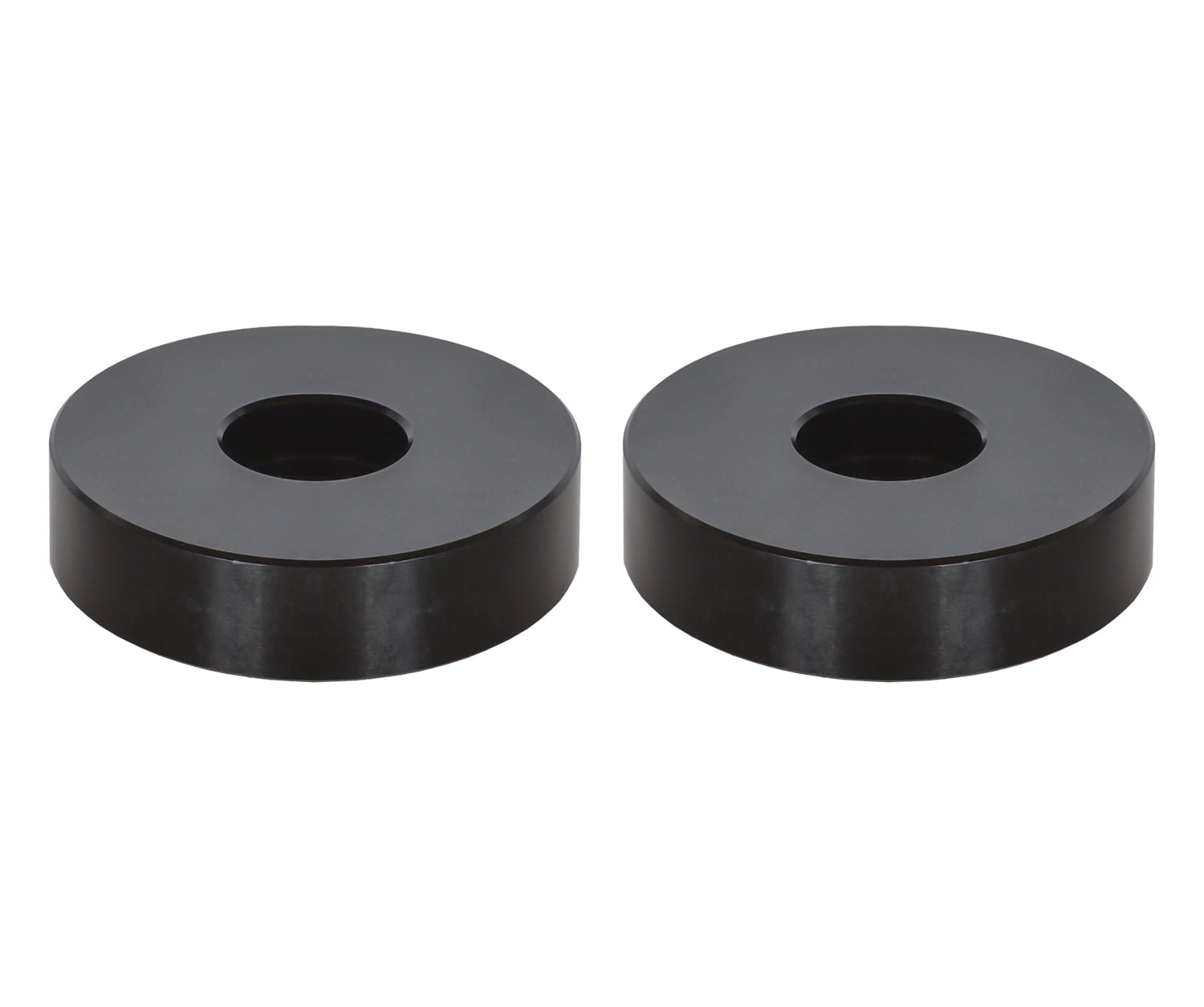

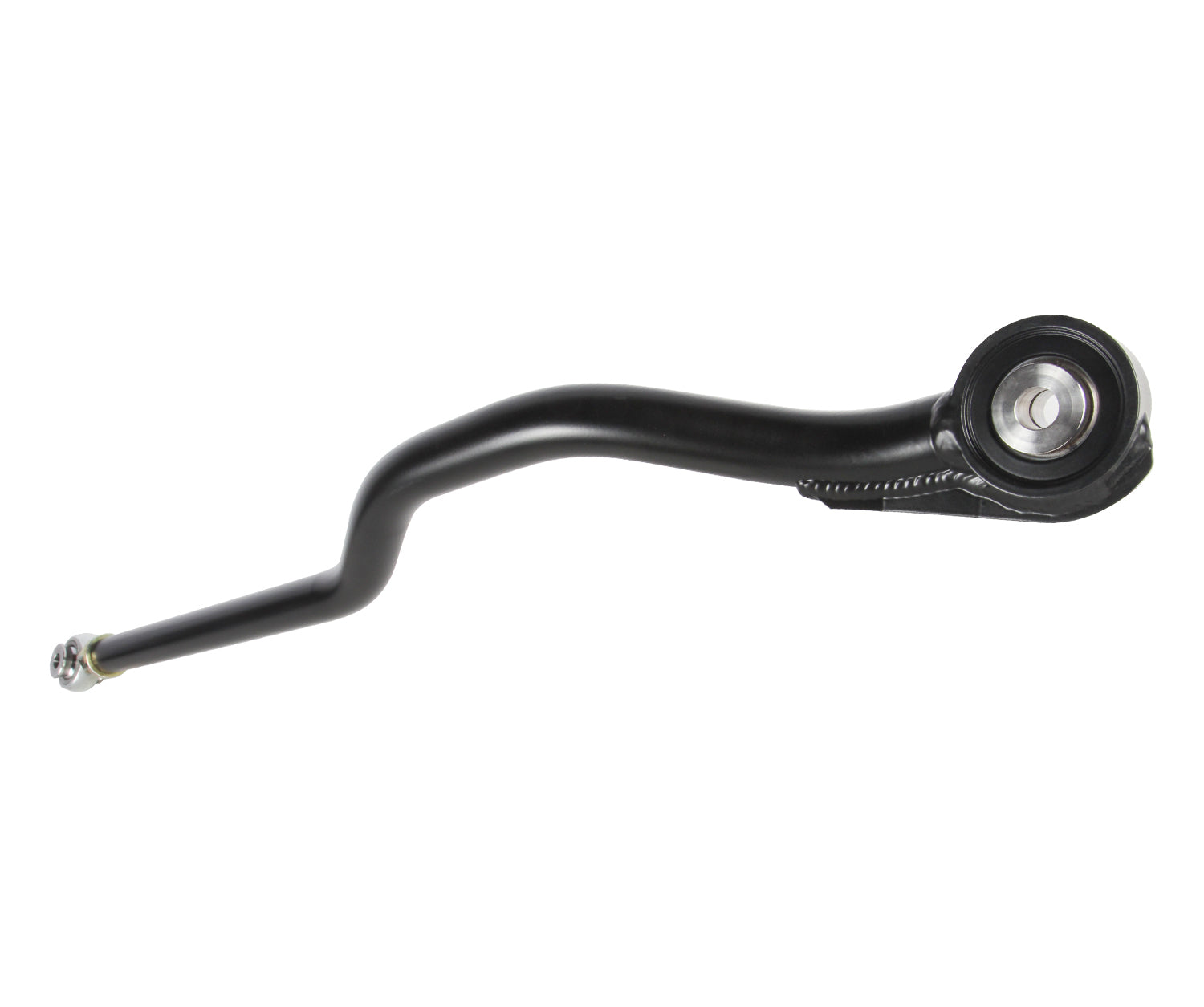

When lifting the front end of a straight axle vehicle, the front axle is pulled off-center unless the proper linkages are addressed. This system includes an Adjustable Track Bar that’s designed to extend (we provide this measurement) to correct the driver’s side axle shift. Extended sway bar end links with spherical bearings accommodate the added travel while maintaining the factory Rubicon Sway Bar Disconnect. Extended stainless brake lines ensure the full travel stroke can be achieved without stressing components. A billet bump riser is included to match the front shock travel.
Rear Suspension

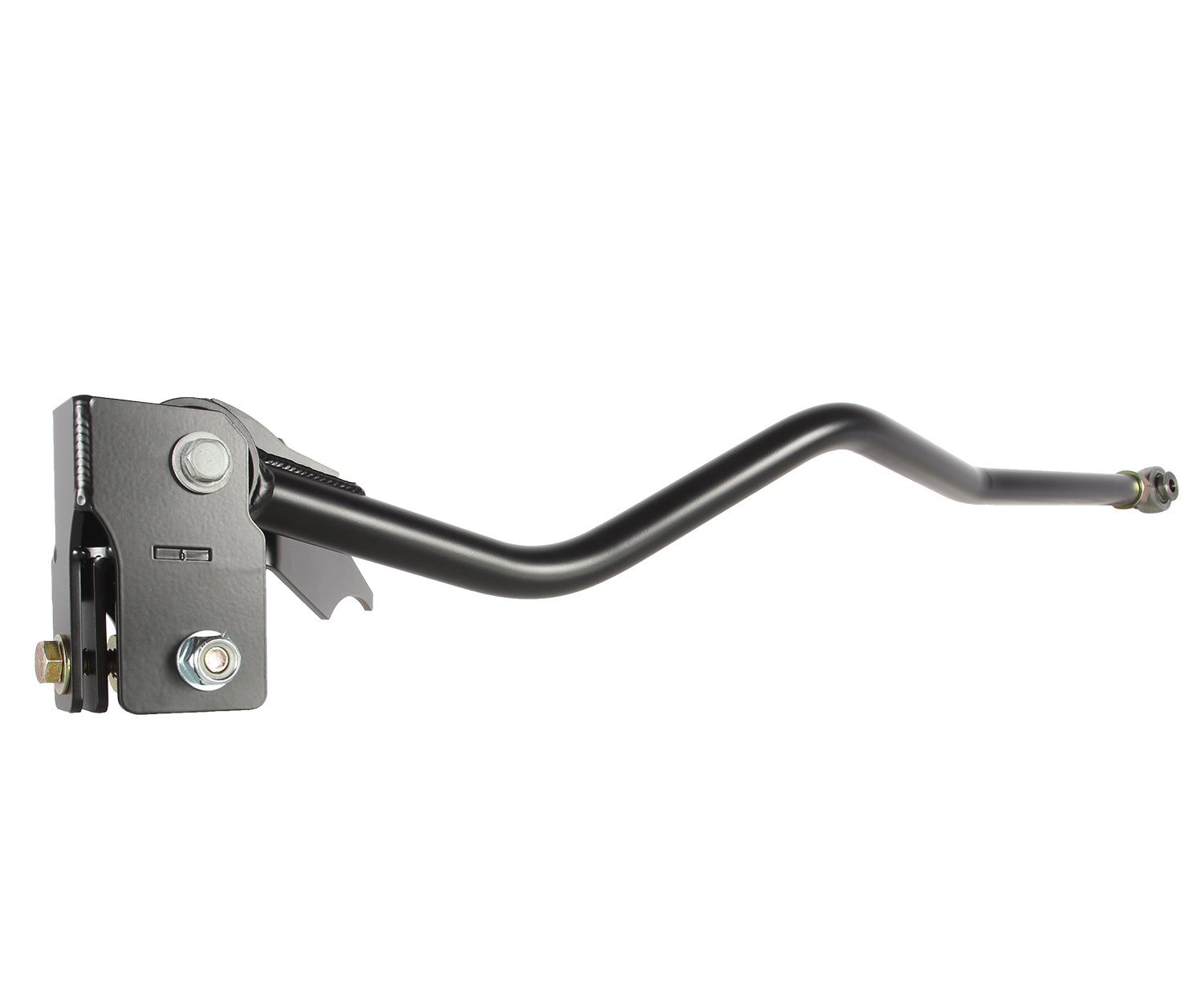

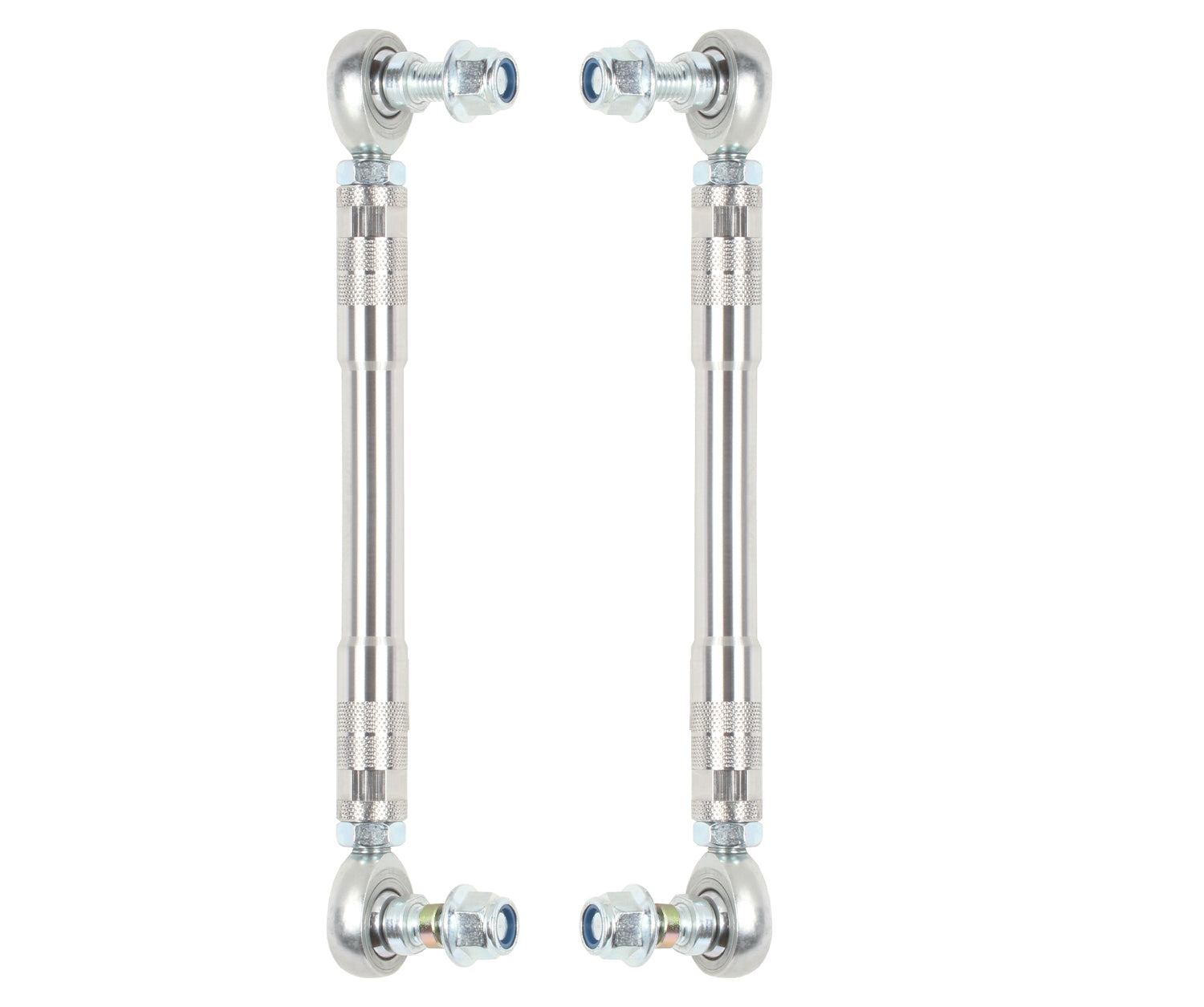

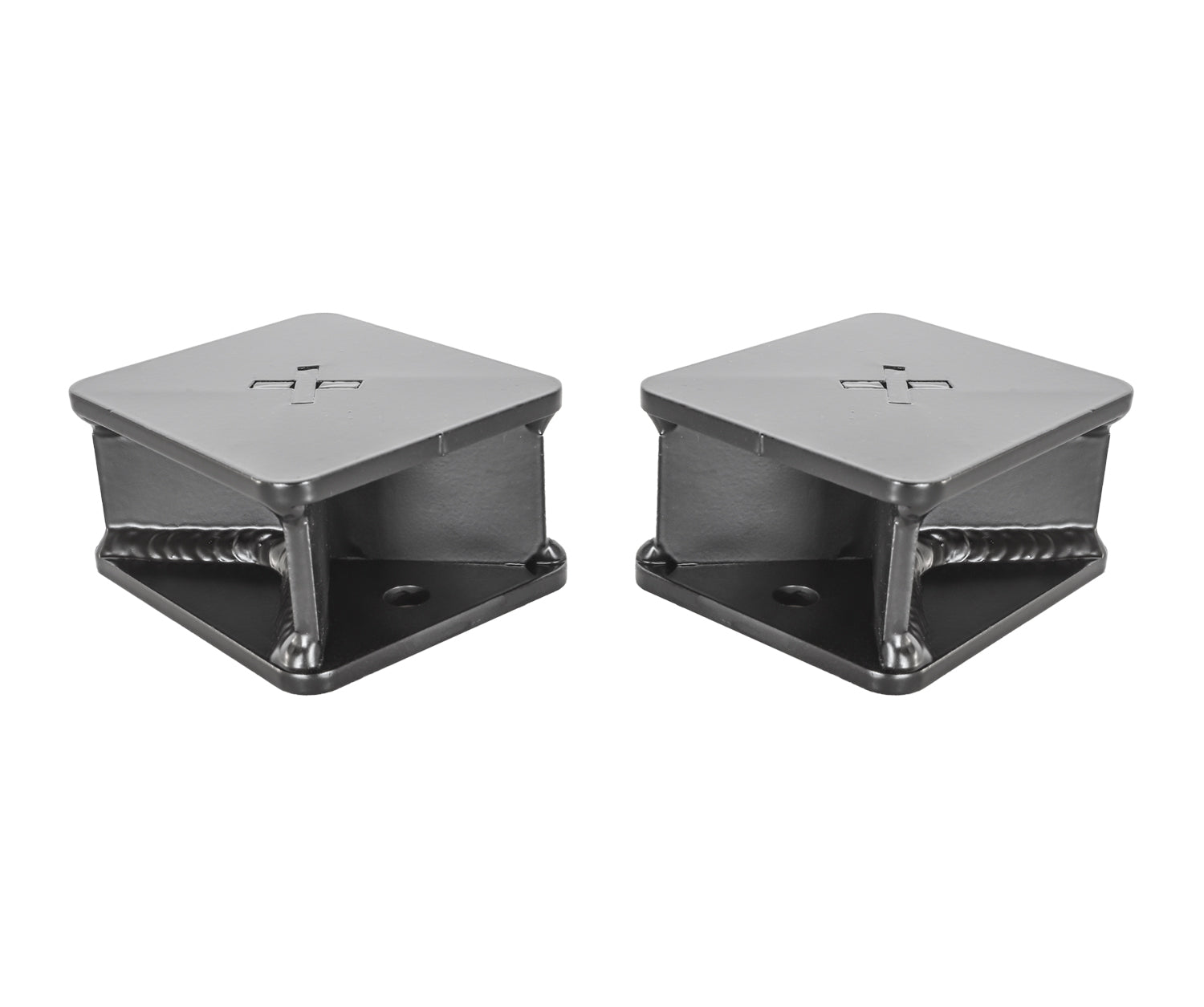

To match the front, the rear is lifted 2.5” with a multi-rate coil spring, ensuring a supple ride and reasonable carry capacity. Rear geometry being similar to the front, everything is included to support flawless operation. A Rear Track Bar Riser and adjustable track bar correct axle position and minimize yaw (side-to-side body movement as the axle travels). Extended sway bar links and stainless brake lines with routing brackets keep components clear during suspension cycling. Fabricated rear bump risers are also included.
Commuter 2.0 System
The Commuter 2.0 system is designed for people seeking the best on-road ride quality on a budget. Utilizing Carli-Specific front and rear Fox 2.0” internal reservoir shocks, this system features a Carli Signature shock tune that delivers all-around comfort and ride quality for in-town driving, highway cruising, and low-speed trail use.
The Fox 2.0s are fully rebuildable, built with hourglass bushings, and boast extruded aluminum construction with a clear anodized finish for corrosion resistance. Fox fills these shocks with their legendary red oil, engineered to flow consistently down to -55°F.
