17-23 FORD F250/F350 2.5" COMMUTER 2.0 SYSTEM, BASE, GAS

17-23 FORD F250/F350 2.5" COMMUTER 2.0 SYSTEM, BASE, GAS

Brand: Carli Suspension

SKU: CS-FLVL-COM-CS-17-GAS

Base Kit Includes:

3.0" Lift - 2020+ F250/350 4x4 GAS, Base Kit
2.0" Lift - 2017-19 F250/350 4x4 GAS, Base Kit

Introducing the Carli Suspension Leveling Commuter 2.0 Carli Spec System, specifically designed for 2017-2023 Ford Super Duty Gas trucks. This state-of-the-art suspension upgrade is perfect for those looking to elevate their driving experience, both on and off the road. Engineered to provide a smooth, comfortable ride while maintaining excellent handling and control, this system is ideal for daily drivers, commuters, and weekend warriors alike.

Features and Benefits:

1. Custom-Tuned Carli Spec Shock Absorbers: These high-performance, custom-tuned shock absorbers are built to provide unparalleled ride comfort and improved handling. Designed to reduce body roll and increase stability, the Commuter 2.0 Carli Spec System ensures a smooth ride on any terrain.

2. Front Leveling Coils: The 2.5" front leveling coils are manufactured to provide an even, level stance without compromising ride quality. Engineered for optimal spring rate and load-carrying capacity, these coils improve ground clearance and maintain factory payload ratings.

3. Rear Add-A-Pack: The rear add-a-pack system replaces the factory overload spring, providing an additional 1" of rear lift. This enhances load-carrying capability while maintaining a comfortable and controlled ride.

4. Adjustable Track Bar: The heavy-duty adjustable track bar corrects axle positioning, ensuring proper alignment and improved steering response. Constructed from high-strength materials, this track bar is designed for long-lasting durability and performance.

5. Sway Bar End Links: Upgraded sway bar end links improve steering response and stability, providing a more connected and controlled feel during cornering.

6. Bump Stop Drops: These bump stop drops protect your suspension components from over-compression, ensuring longevity and consistent performance.

7. Brake Line Brackets: Designed to accommodate the increased suspension travel, these brake line brackets maintain proper brake line length and prevent overextension during extreme articulation.

8. Detailed Installation Instructions: The Carli Suspension Leveling Commuter 2.0 Carli Spec System comes with comprehensive installation instructions, ensuring a seamless upgrade experience for both professional installers and DIY enthusiasts.

Upgrade your 2017-2023 Ford Super Duty Diesel with the Carli Suspension Leveling Commuter 2.0 Carli Spec System and experience a new level of driving comfort, handling, and performance.

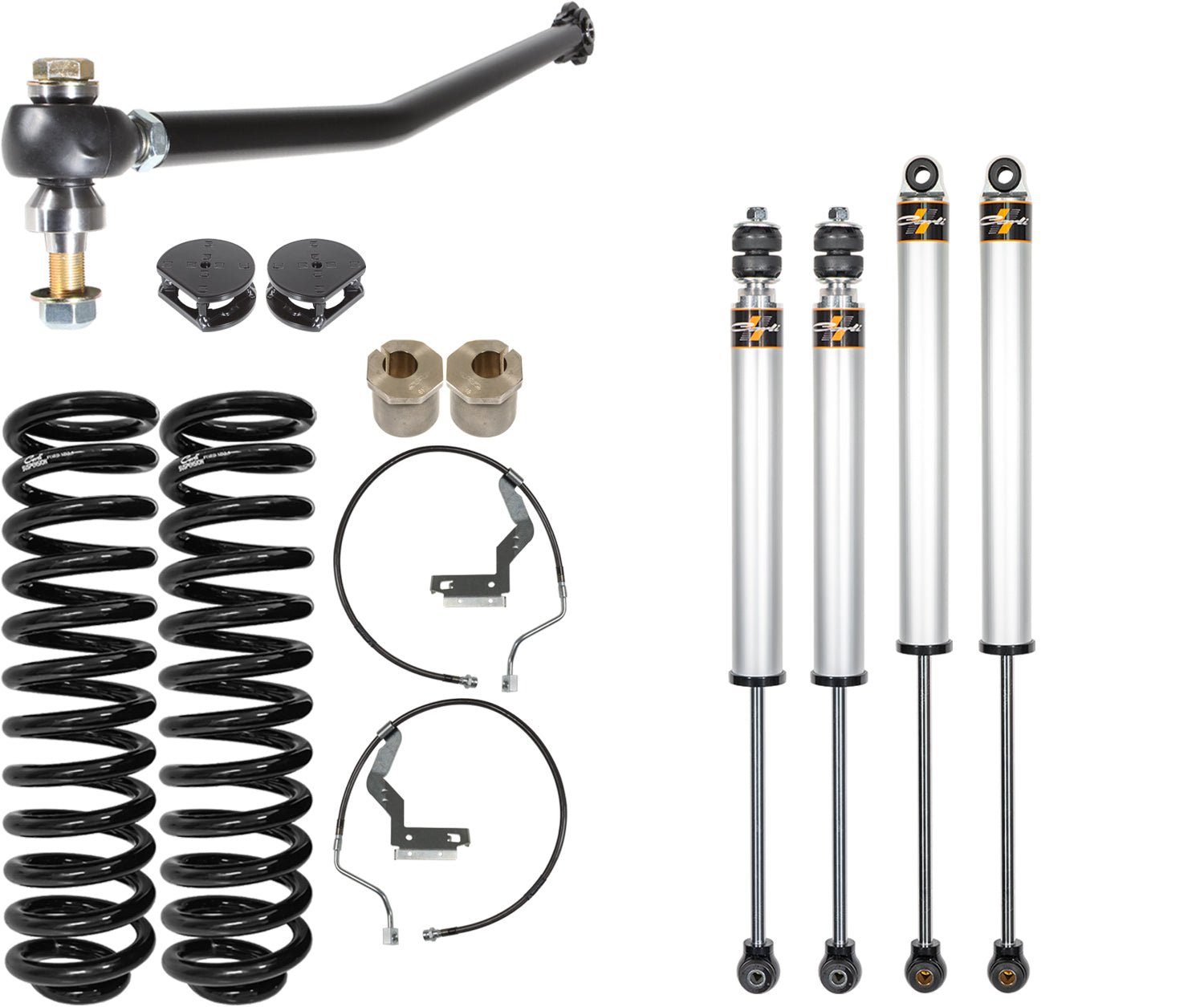

Base Kit Includes:

• CS-FLC-11-GAS - Front Leveling Coils
• AS-FLVLSPKG-CS20IFP-A - Carli Custom Tuned
• CS-FORDBBL-17-C - Front Brake Lines
• CS-FCASTERSHIM-25 - Caster Shims
• CS-FBDF-2.5-17 - High Clearance Bump Stop Drops, Front
• CS-FPRB-17 - Track Bar

Wheel and Tire:

On Carli Suspension's 2.5” Ford Systems, we recommend 17”-18” wheels, no more than 9” wide with 5.5” of backspacing with Carli Fabricated Radius Arms or 5” Backspace with factory arms; 5” will require a bit more trimming. Tires, 37x12.5” will fit with some trimming; 35” will likely fit without trimming.

The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter. For more details, see our article on wheel and tire selection and tire pressures

System Notes:

Wheels: Carli Recommends a 17"-18" Wheel, no more than 9" wide with 5"-5.5" of Backspacing on Leveling Systems

Tires: 35", E-Rated Tire Fitment is Recommended. Recommended unloaded Tire Pressure 45F/40R.

Recommended Configuration: Carli Leveling Systems are Designed and Tested on Vehicles with 17"-18" Wheels with 35", E-Rated Tires. Stock wheels and tires or running a larger wheel diameter will result in a stiffer ride.

Add-A-Packs: Add-A-Pack Option Requires NO BLOCKS to achieve level Stance
