PMF | SKU:
PMF-FBLK30-B1-1A00-T1
PMF FORD 1999-2016 F-250/350 FABRICATED BLOCKS SINGLE REAR WHEEL
Regular price
$ 17500
Unit price
/
Unavailable
Couldn't load pickup availability
Can I pick up my order or have it installed at your shop?
Can I pick up my order or have it installed at your shop?
Yes! We offer local pickup on most products and professional installation at our shop at 25 Town and Country Drive, Washington, MO. 63390. Contact us at 636-429-7020 to schedule a time to come in.
How do I know if this part fits my vehicle?
How do I know if this part fits my vehicle?
If no fitment info is listed, contact us at 636-429-7020 with your vehicle’s year, make, and model — we’ll help you find the right part.
What if I need to return a product or it’s defective?
What if I need to return a product or it’s defective?
Most items can be returned within 30 days if unused and in original packaging. Many products also include a manufacturer warranty. Contact us at 636-429-7020 for assistance.
How can I track my order?
How can I track my order?
Once your order ships, you’ll get a tracking number via email to monitor your shipment.
PMF FORD 1999-2016 F-250/350 FABRICATED BLOCKS SINGLE REAR WHEEL
Regular price
From
$ 16500
Unit price
/
Unavailable
Description
Description

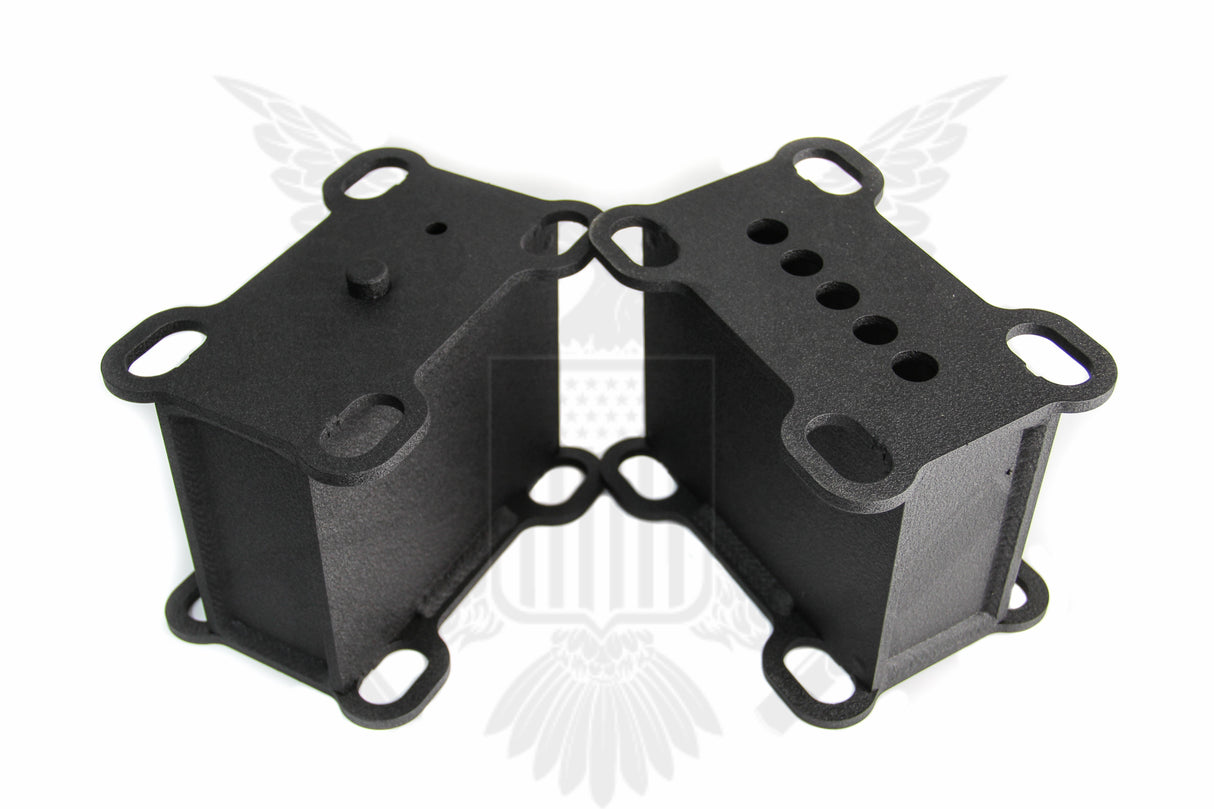

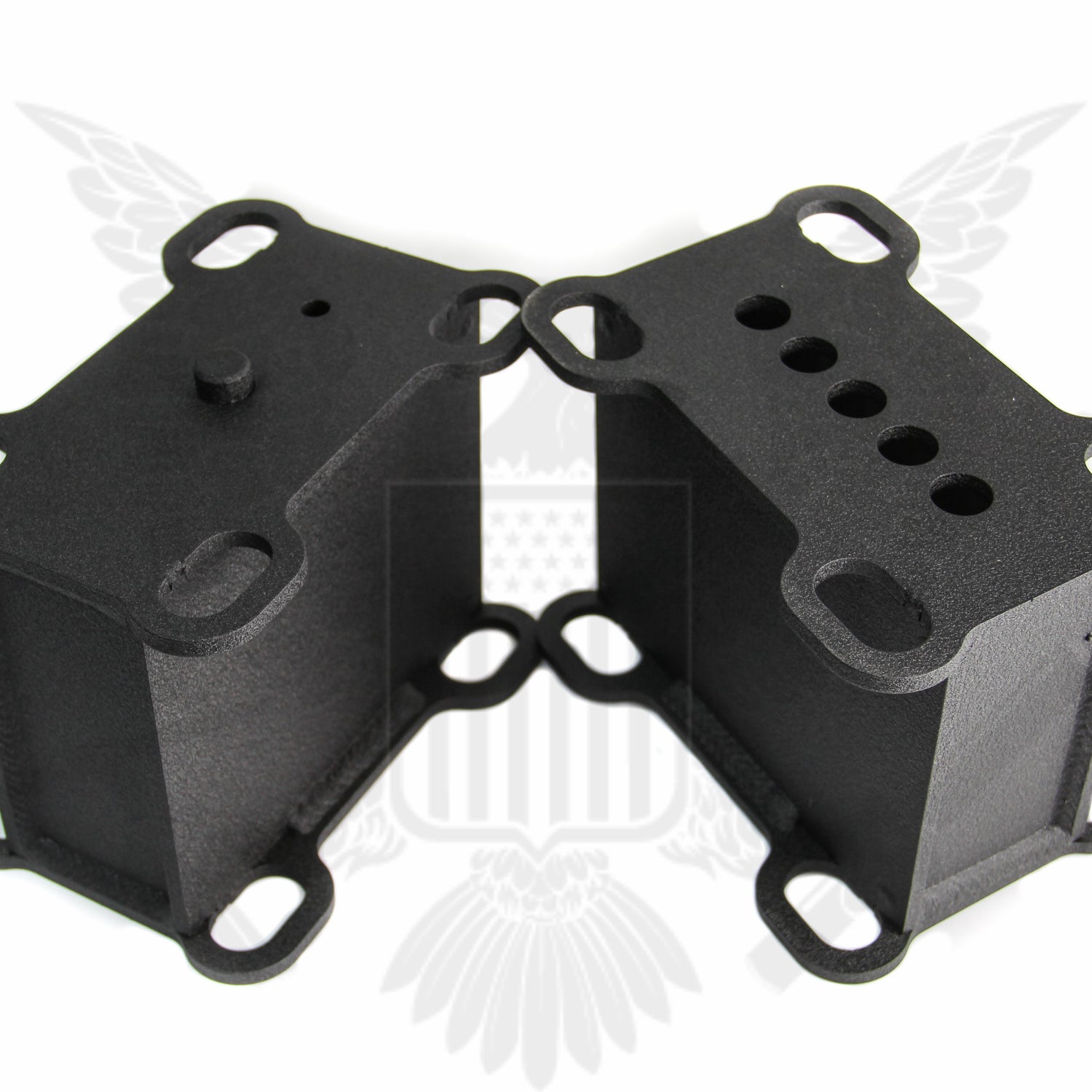

Heavy duty lift blocks incorporate the u-bolts for an extremely solid and secure setup. You will never have to worry about your block shifting around, or worse yet a failure. Many aftermarket lifts make you stack multiple blocks which not only looks bad but could allow one to be spit out. Replace them with one of our blocks to prevent any worry! The quality of construction on these and welding is second to no one.
We also make these in 1/2" increments which allows you to set the stance of your truck EXACTLY how you want it! All blocks are fabricated from 1/4" and hand welded to ensure every set that leaves here is perfect! All blocks are designed to accept up to 3/4" ubolt. If you need something different, please shoot us a call and we can custom build a different configuration.
All blocks have multiple pin locations to allow you to move the location of your axle. This is needed sometimes to allow you to center your axle within the fender-well. If you need to make use of this option, you will need to order our Adjustable Ubolt Top Plates as well.
To order simply select the size of the block that you would like to order. This is the height of the block in the center directly over the axle.
Then select the pinion angle you would like. This is the angle or taper of the block to help align your driveshaft. The block taper necessary for your application will vary depending on the year, bed length, and drive shaft type. Please see our driveline angle chart in the related pics or call one of sales reps to further assist!
Bumpstops are optional on all blocks. This is the tang that sticks out on the side of the block and makes contact with the bumpstop on the bottom of your frame rail. With some lifted applications these are not functional because the tire will hit the body before the bumpstops come into effect.
We also make these in 1/2" increments which allows you to set the stance of your truck EXACTLY how you want it! All blocks are fabricated from 1/4" and hand welded to ensure every set that leaves here is perfect! All blocks are designed to accept up to 3/4" ubolt. If you need something different, please shoot us a call and we can custom build a different configuration.
All blocks have multiple pin locations to allow you to move the location of your axle. This is needed sometimes to allow you to center your axle within the fender-well. If you need to make use of this option, you will need to order our Adjustable Ubolt Top Plates as well.
To order simply select the size of the block that you would like to order. This is the height of the block in the center directly over the axle.
Then select the pinion angle you would like. This is the angle or taper of the block to help align your driveshaft. The block taper necessary for your application will vary depending on the year, bed length, and drive shaft type. Please see our driveline angle chart in the related pics or call one of sales reps to further assist!
Bumpstops are optional on all blocks. This is the tang that sticks out on the side of the block and makes contact with the bumpstop on the bottom of your frame rail. With some lifted applications these are not functional because the tire will hit the body before the bumpstops come into effect.

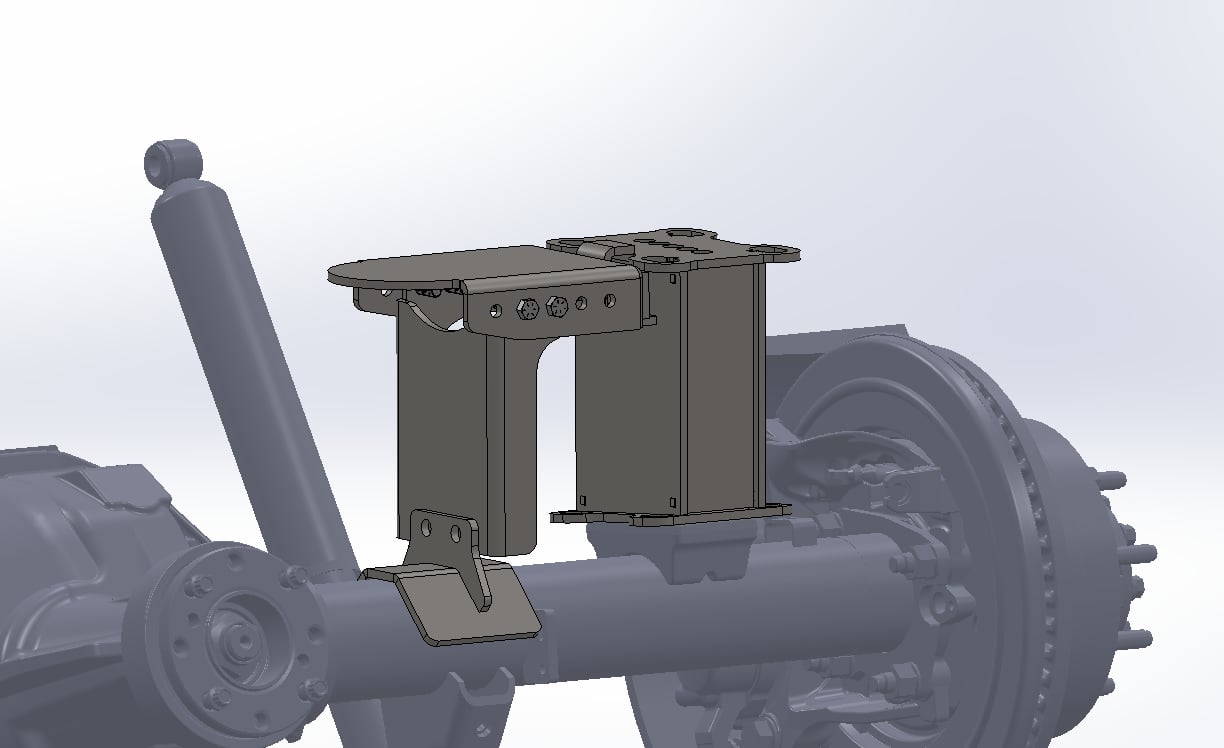

We also offer the strongest and most unique air bag tangs on the market designed for an "inboard" bag setup. This unique tangs have adjustability to rotate so that the bag sits straight and even. It also has the ability to adjust up or down a little bit to fine tune how the bag sits in the truck. We are also the only company to offer an additional support down to the top of the axle tube so there is no concern with higher capacity bag systems (Airlift 7500) bending or breaking the tang!! This does require you to locate and drill whatever mounting holes are needed for your particular bag configuration and in the support brace.
We also offer custom length and larger diameter ubolts. We bend them in house which allows us to make virtually any length you would like. If you order 3/4" ubolts, they will automatically include new top plates as well! These ARE NOT included with the blocks, please view our other items if you need them!
As always if you are unsure of exactly what you need to order, don't hesitate to give us a call!
We also offer custom length and larger diameter ubolts. We bend them in house which allows us to make virtually any length you would like. If you order 3/4" ubolts, they will automatically include new top plates as well! These ARE NOT included with the blocks, please view our other items if you need them!
As always if you are unsure of exactly what you need to order, don't hesitate to give us a call!
THESE ARE A CUSTOM BUILT TO ORDER ITEM. THEY WILL ***TYPICALLY HAVE AROUND A 5-7 BUSINESS DAY LEAD TIME.*** BUT SOMETIMES LONGER DEPENDING ON WORKLOAD. SPECIAL ARRANGEMENTS MAY BE MADE, PLEASE CONTACT US DIRECTLY TO DISCUSS.
THESE ARE CONSIDERED A CUSTOM ORDER ITEM AND AS SUCH ARE NON-RETURNABLE!
THESE ARE SOLD AS A PAIR!

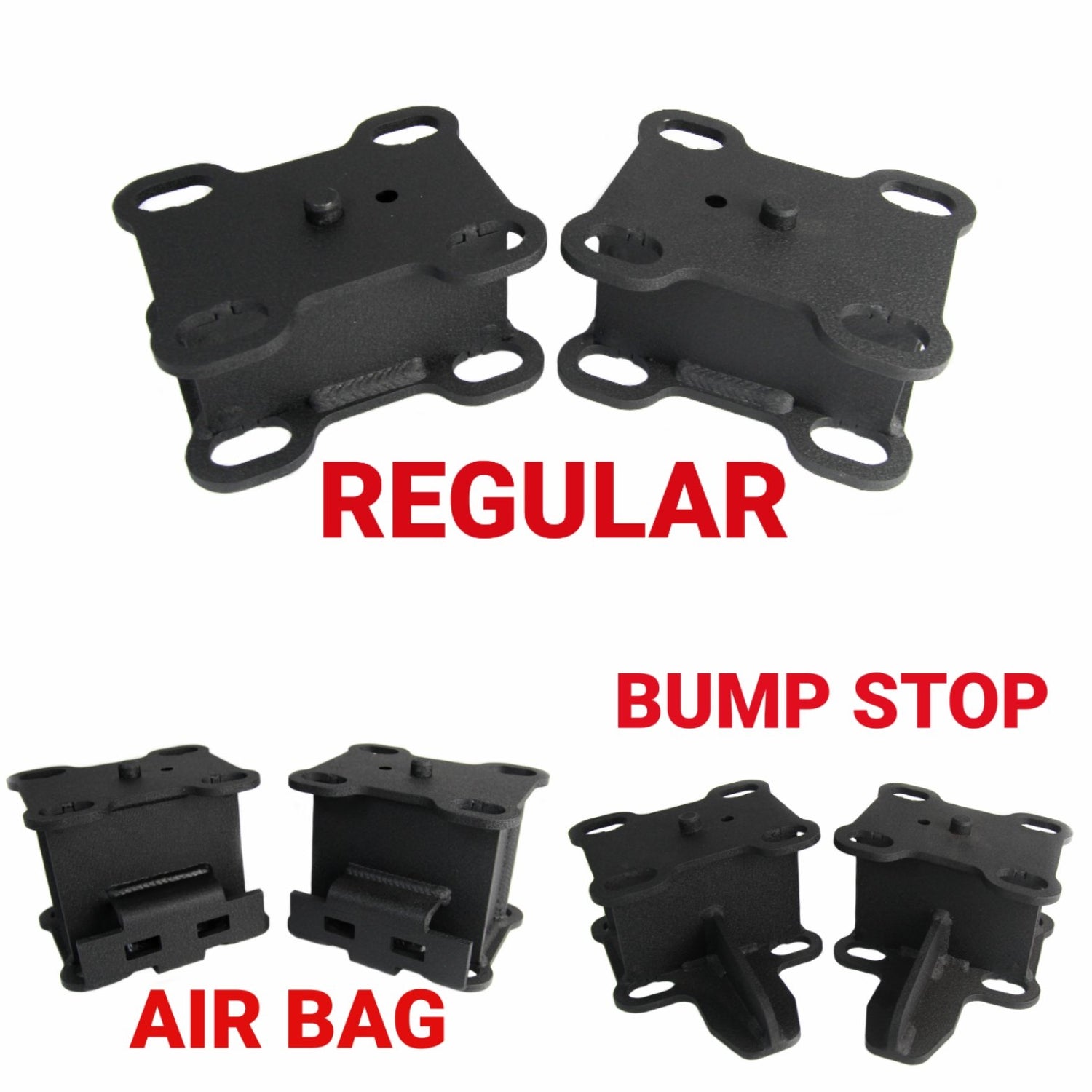

Call for more configurations
- Bumpstop Tangs
- Air Bag Platforms
- Single Rear Wheel Configuration
- Dual Rear Wheel Round Axel Tube Configuration
- Dual Rear Wheel Square Axle Housing Configuration
