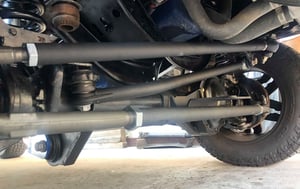

PMF 2005-24 Ford F-450/550 Widetrack HD Single Piece Draglink
Can I pick up my order or have it installed at your shop?
Can I pick up my order or have it installed at your shop?
Absolutely. We offer local pickup on most products and full professional installation at our shop in Washington, MO. Whether you just want to grab your parts or have our techs handle the install, we’ve got you covered. Give us a quick call at 636-429-7020 or message us to schedule a visit — we’ll make sure the parts are ready when you arrive.
How do I know if this part fits my vehicle?
How do I know if this part fits my vehicle?
Unsure if it’ll fit? No problem — that’s what we’re here for. Send us your vehicle’s year, make, and model, and we’ll verify fitment before you order. We can also point you toward compatible upgrades or supporting parts if needed.
What if I need to return a product or it’s defective?
What if I need to return a product or it’s defective?
Most unused items can be returned within 30 days in their original packaging. Some products are covered by a manufacturer’s warranty as well. If something arrives damaged or doesn’t meet your expectations, just let us know — we’ll help you get it replaced, refunded, or repaired. (Tracking updates are also emailed automatically once your order ships.)
What's the lead time on custom or fabricated parts?
What's the lead time on custom or fabricated parts?
Many of our parts are built to order — especially fabricated or performance components. These can take additional time to produce before shipping. Lead times vary by manufacturer and demand, but we’ll always keep you updated along the way. If you’re working on a tight schedule, reach out before ordering at 636-429-7020 and we’ll confirm current availability or estimated ship dates.
Description
Description
THIS IS ONLY FOR TRUCKS EQUIPPED WITH THE DANA SUPER 60 WIDETRACK AXLE!! THIS IS ALL 450/550 TRUCKS AND SOME OF THE OLDER F-350 DUAL REAR WHEEL TRUCKS WITH THE UPGRADED TOW BOSS FRONT AXLE!!
The factory draglink on the 2005-24 trucks is a known weak link in the steering system. There are a few causes for the weakness, but the majority lies within the design of the split collar adjusting sleeve. This allows the rod to flex when put under a load caused by road variations or steering input. Increased tires and lift size adds even more stress to this part. Upgrading to our single piece unit will eliminate ALL flex and tighten up the feel of your steering wheel. This is an upgrade that you can notice a night and day difference in the second you open the box and lay the two side by side. We use a heavy wall single piece DOM tube and CNC single point thread the bar for the strongest possible threads. We don't weld in tube adapters to eliminate the concern of a weld failing resulting in a loss of control of your vehicle.
We have two versions of this bar.
A "Direct Replacement" which comes with a XRF Platinum series of tie rod end that will fit.
The second is our "Offroad" version. This uses a much stronger and MUCH more durable 1" FK heim. We custom machine from high strength 17-4 stainless steel to fit the oem taper of the pitman arm with a built in safety washer on the opposite side. We also supply a custom High Strength Grade 9 bolt for even more security! Because this uses a heim and not all states allow a heim to be used in your steering system, we list this product as an offroad only item. If you live in a state that allows heims to be used, the offroad version is BY FAR our recommended option. One thing to note, the heims slightly larger diameter may create clearance problems with some aftermarkets drop track bar brackets when turning all the way to steering stop.
Since the entire bar spins when adjusted, it cannot have a tapered hole for a OEM style of steering stabilizer as it would never align properly. It is recommended running a dual steering stabilizer kit or a stabilizer that clamps on the outside of the bar (OD is 1.5") instead.
Rod is powder coated black wrinkle for a long-lasting finish.
As an option for a complete R&R, we have a heavy duty XRF lower/passenger side tie rod end available for purchase separately.
SKU: PMF-FRD-5007
