PMF 2011-24 Ford F-250/350/450 HD Front Sway Bar End Links
Description
Description

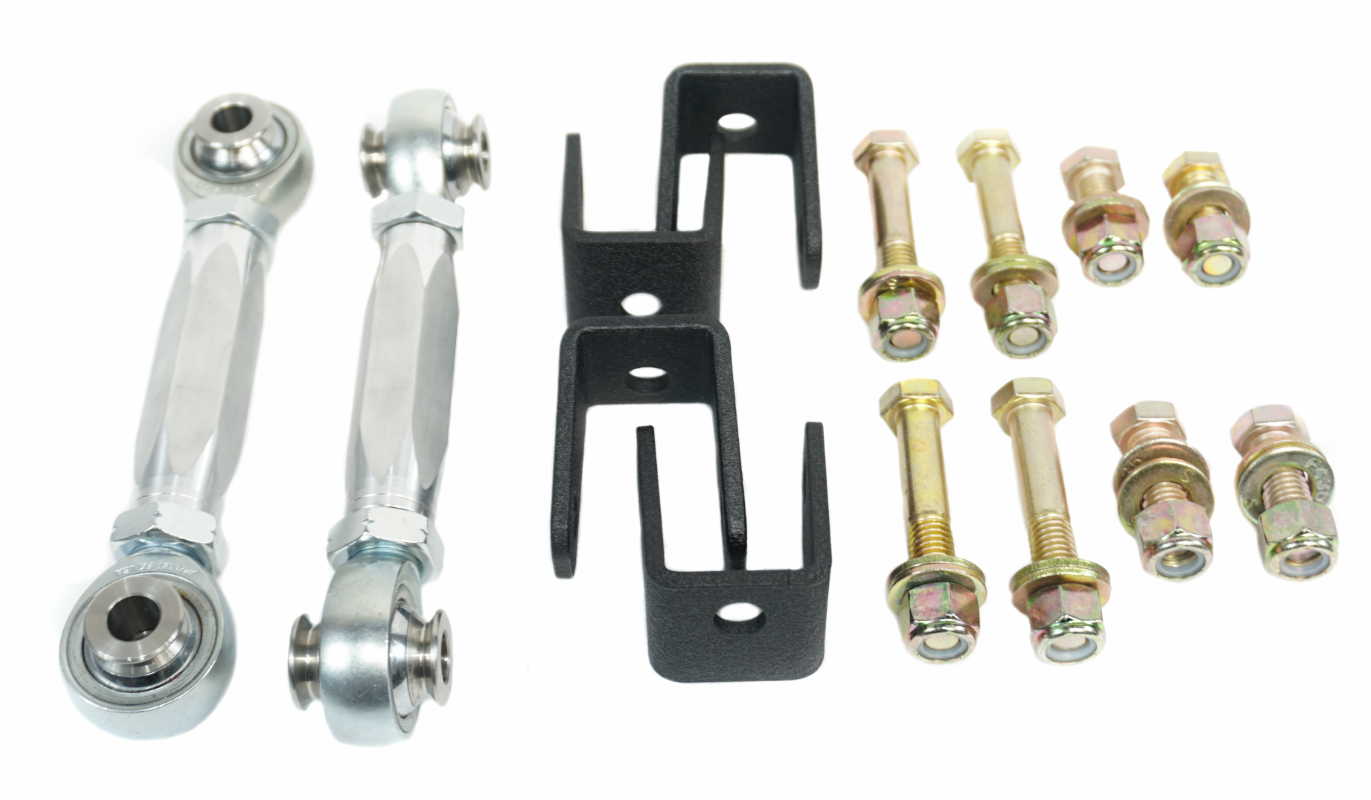

2011+ Ford F-250/350/450's come stock with a stem style of sway bar end link. These are marginal at best even on a factory application. Add to that additional lift, more travel, or harsh operating conditions and the OEM links are prone to bending and failure. Our HD 6061 billet end links convert to a stronger 3/4" FK heim joint which allows more misalignment and bind free travel. We offer these in a variety of lengths to allow proper geometry at any lift amount. Lift amount is calculated as though no other sway bar drop bracket is being used. If a drop bracket is being used in conjunction with these, deduct the drop amount from the overall lift amount and select the range of link for that height. These are for the front axle and come as a pair.
When selecting the length of the link, you must subtract whatever the drop amount of the brackets between the sway bar and frame are providing. For example, If you have an 8" lift kit and the sway bar drop brackets are 4" tall, you will order links in a 4" lift amount.
These use a jam nut to lock the heim in place. You MUST ensure they are properly tightened. IF they loosen up, it will eventually pull the heim out of the link and this will not be covered under any warranty!!!
SKU: PMF-FRD-5002-11-06
