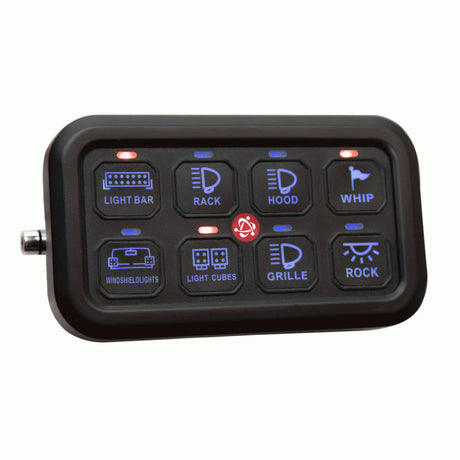

This gang switch panel system allows you to control up to 8 different auxiliary LED lights or electrical devices. With 50 different switch stickers included, the panel can be customized accordingly and has blue LED backlighting to illuminate the switches.

This versatile panel can handle all types of 12V DC accessories, can be installed in multiple positions and is ideal for all applications such as cars, trucks, Jeeps®, ATV/UTVs, RVs and even boat installations.

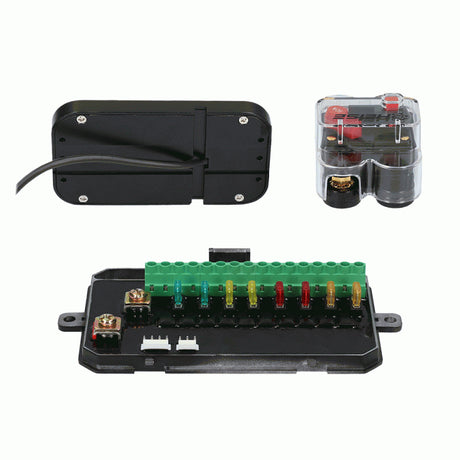

The compact control panel measures 2.6×4.6 inches while the under-hood mounted control box utilizes IBGT (Insulated Gate Bipolar Transistor) technology instead of bulky relays, and only has a 4.2×7.5 inch footprint.

Specifications

Switched or momentary operation
Input Voltage: 12-24V DC
Power Handling: 600-1200 watts
Maximum Current: 60 amp
Panel Material: Die-cast aluminum
Control Box Material: Die-cast aluminum
Control Box Cover: ABS plastic
Operating Temperature: -40°F to 302°F
Panel Size: 4.53×0.59×2.60 inches
Circuit Box Size: 7.48×1.34×4.13 inches

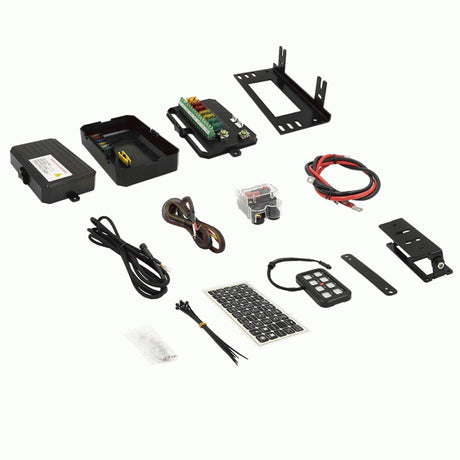

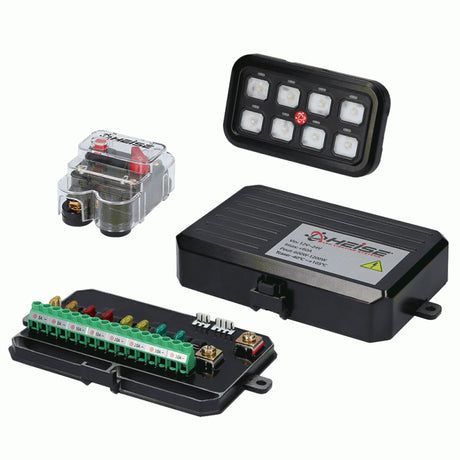

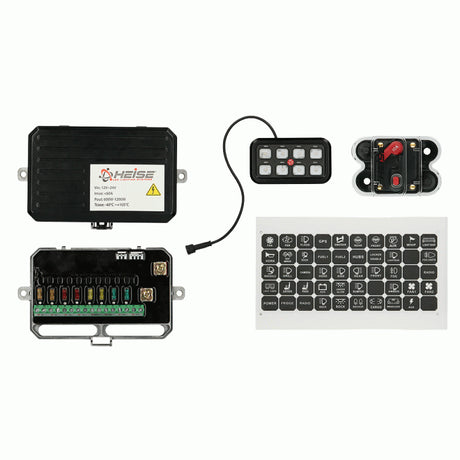

Products Included

Splash proof 8 gang switch panel
IP68 Control box with cover

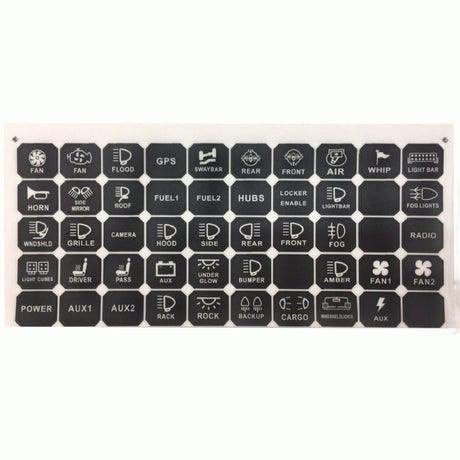

(50) custom label decals
(6) extra fuses

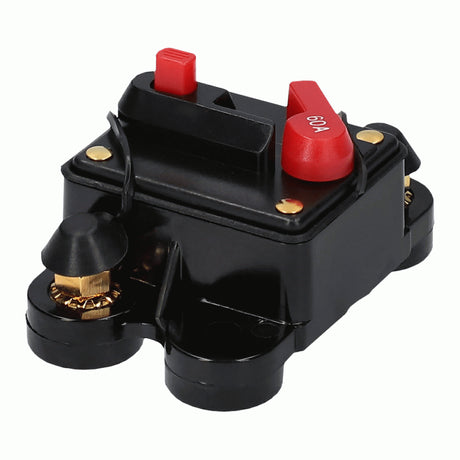

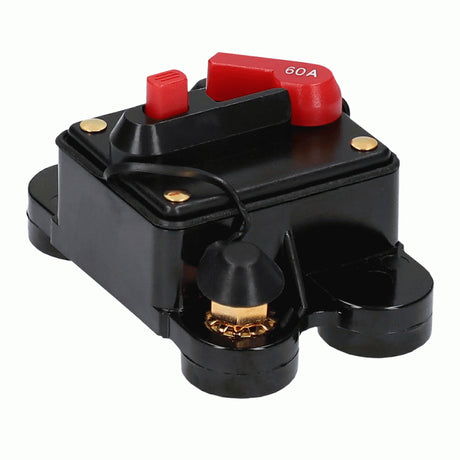

60 amp resettable circuit breaker
Power harness and battery cables
(2) switch panel brackets
(1) control box bracket
Mounting hardware, screws and zip ties
Dash illumination control wire

8 gang switch panel system | SKU: HESWP8

HEISE
