Yukon Gear 2005-2015 Toyota Tacoma Rear Diff w/ Grizzly Locker 30 Spline & 4.30 Ratio Drop Out Assembly

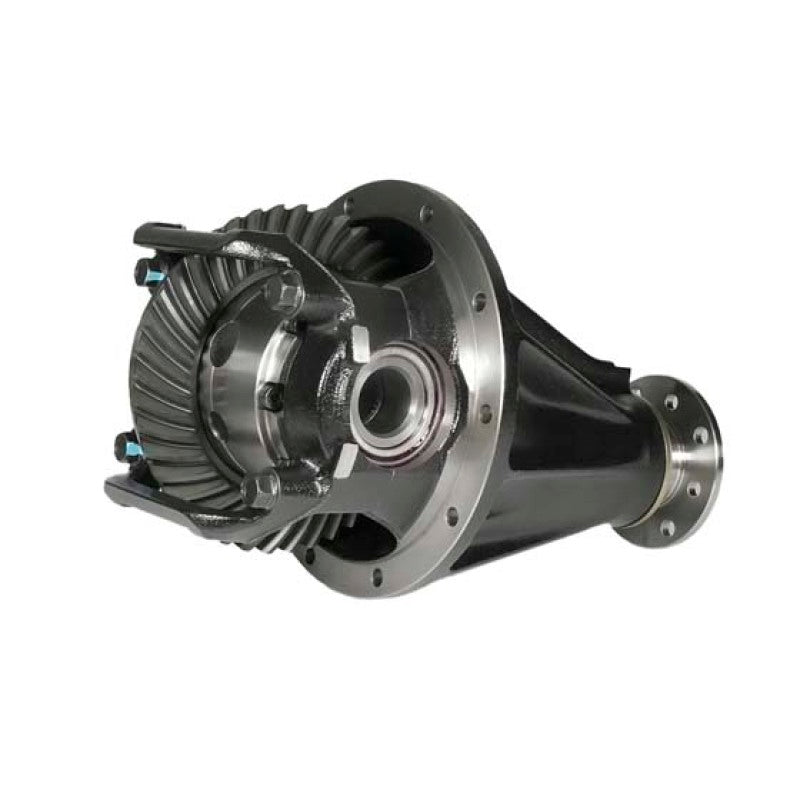

The Yukon YDAT100-430YGL Dropout Assembly is a complete, pre-assembled third member designed for Toyota 8.4″ rear differentials using 30-spline axles. With a 4.30 gear ratio and an integrated mechanical Grizzly Locker, this unit arrives pre-adjusted and ready to install—just bolt it in, add fluid, and hit the road.

Technical Specifications

• Gear Ratio: 4.30
• Spline Count: 30 spline
• Differential: Mechanical Grizzly Locker
• Housing Material: Nodular iron, for improved rigidity and heat resistance
• Dropout Type: Complete third member with yoke pre-installed
• Factory Setup: Shims, preload, and backlash set at the factory — no setup required on your end

Fitment / Compatibility

• Intended for Toyota 8.4″ rear differential housings with 30-spline axle shafts.
• Often used in T100, older Tacomas, and early Tundra models—verify your current rear end before ordering.

Benefits & Use Cases

• Install-Ready: Comes pre-adjusted so you bypass complex differential setup.
• Stronger Construction: Nodular iron case maintains gear alignment under stress.
• Maximum Traction: Grizzly Locker locks both wheels under torque, enhancing off-road and low-traction performance.

Notes & Best Practices

• Follow break-in procedures for new ring & pinion units.
• Use the correct type and amount of gear oil as recommended by Yukon or Toyota specs.
• Expect slightly heavier turn feel and increased tire wear on hard turns due to full locking behavior.
• Confirm axle housing, bearing fits, and differential clearances before installation.
