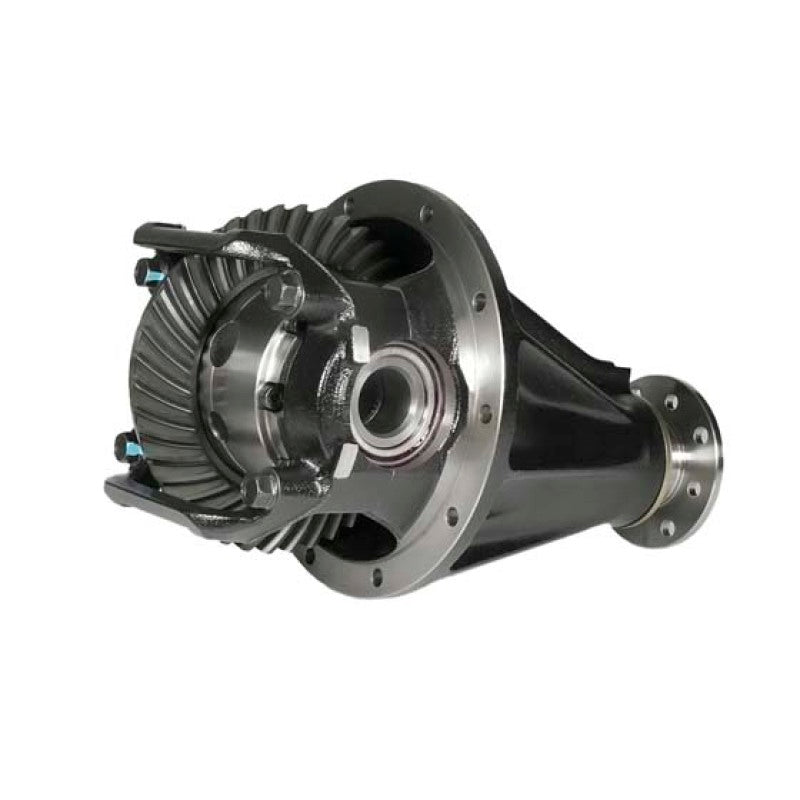

Yukon Gear 1995-2015 Toyota Tacoma Rear Diff w/ Grizzly Locker 30 Spline & 4.56 Ratio Drop Out Assembly

The Yukon YDAT100-456YGL Dropout Assembly is a factory-shimmed, ready-to-install third member for Toyota 8.4″ rear axles (T100/Tacoma/Tundra). It ships with the ring & pinion already setup (4.56 ratio) and includes a Yukon Grizzly Locker to maximize both on-road and off-road traction. Simply drop it in your housing, fill with gear oil, and you’re ready to roll.

Full Product Specs

• Part Number / SKU: YDAT100-456YGL
• Ring & Pinion Ratio: 4.56 ish gearing
• Spline Count: 30 spline axles compatible

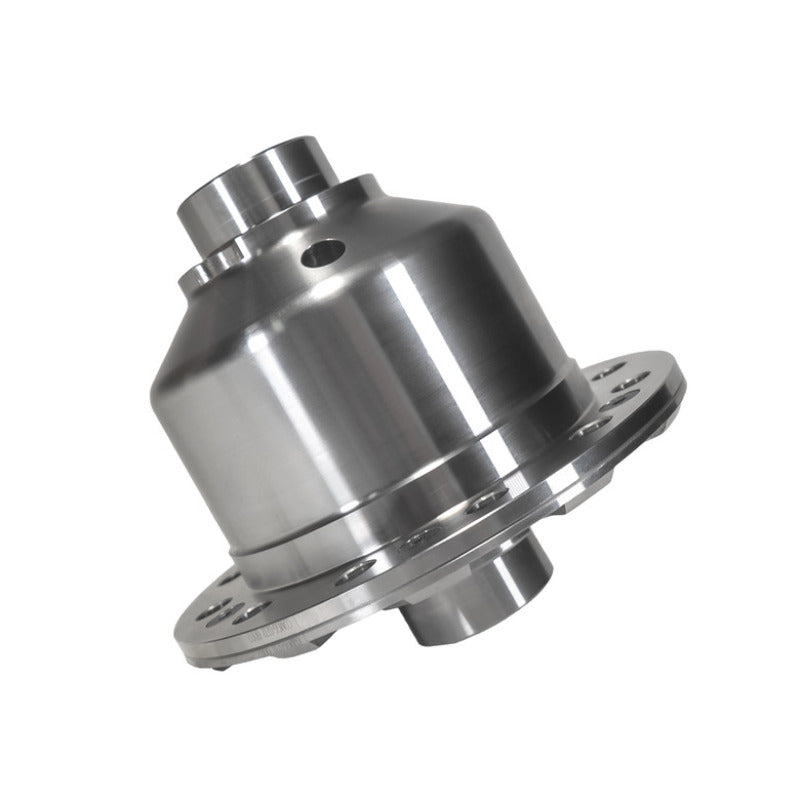

• Differential Type: Mechanical Grizzly Locker
• Included Yoke: Yes, pre-installed
• Shimmed & Backlashed: Yes, by Yukon factory techs
• Housing Material: Nodular iron for superior rigidity and strength

Vehicle Fitment

• Designed for Toyota 8.4″ rear differential setups using 30-spline rear axles (common in T100, Tacoma, early Tundra). Verify your housing before ordering.

Why Go with a Yukon Dropout?

• Plug-and-Go Installation: Delivered pre-adjusted—no setting backlash or preload at home.
• Stronger Case: Nodular iron resists flex and helps maintain precise gear tooth geometry under load.
• Locking Capability: Yukon’s Grizzly Locker provides full locking traction when needed and unlocks in turns.

Notes & Install Advice

• Ensure proper fluid fill and break-in steps after installation.
• Torque housing bolts to spec and re-check after first heat cycles.
• Because locker locks both sides under torque, expect increased tire wear in tight turns.
• Confirm compatibility with brake gear, axle housing, and bearing setup before ordering.
