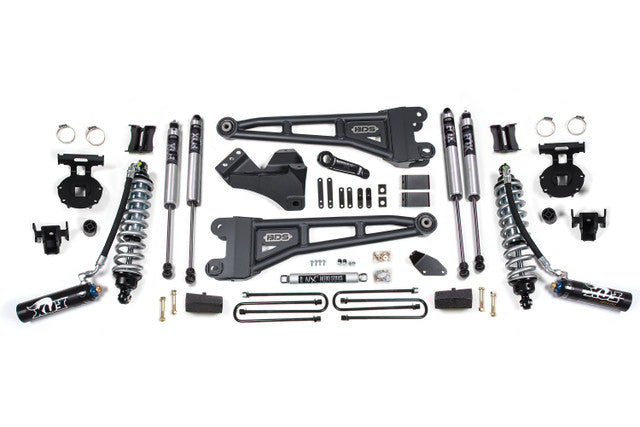

2.5 Inch Lift Kit with FOX 2.5 Coil-Over for 2005-2007 Ford F250 and F350 Super Duty Diesel

Built to outperform, engineered to upgrade your 2005-2007 Ford F250 and F350 Super Duty diesel powered truck this 4-inch radius arm lift kit and FOX 2.5 Coil-over conversion from BDS Suspension delivers. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks heavy duty replacement radius arms forged drop pitman arm and track bar bracket for steering correction sway bar relocation brake line brackets and secondary FOX 2.0 shocks. In the rear this kit utilizes a high-strength lift block longer u-bolts and a matching set of FOX Performance shocks.

FOX 2.5 Coil-Over Conversion

FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth quiet service-free operation.

Steering Correction

To optimize steering geometry once lifted a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy-duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

• Tapered and roll-pointed leafs add flexibility and provide an even deflection rate
• Increased wheel travel and a softer ride from tapering allow smoother transition between leafs as compression takes place
• Higher articulation from bolt-style leaf alignment clamps prevents leafs from fanning out allowing leafs to twist and flex
• Multi-leaf progressive design for smooth ride
• Anti-friction pads provide a smooth and quiet ride
• Front Lift Height: 4 IN
• Front Lift Method: Coil Over
• Installation Difficulty: moderate
• Installation Time: 9 Hrs
• Installation Tools: puller pitmanArm
• Rear Lift Height: 3 IN
• Rear Lift Method: Block
• Rear Lift Option: Block Kit Without Factory Overload
• Shocks Included: Yes

2.5 Inch Lift Kit with FOX 2.5 Coil-Over for 2005-2007 Ford F250 and F350 Super Duty Diesel | SKU BDS1931FDSC
