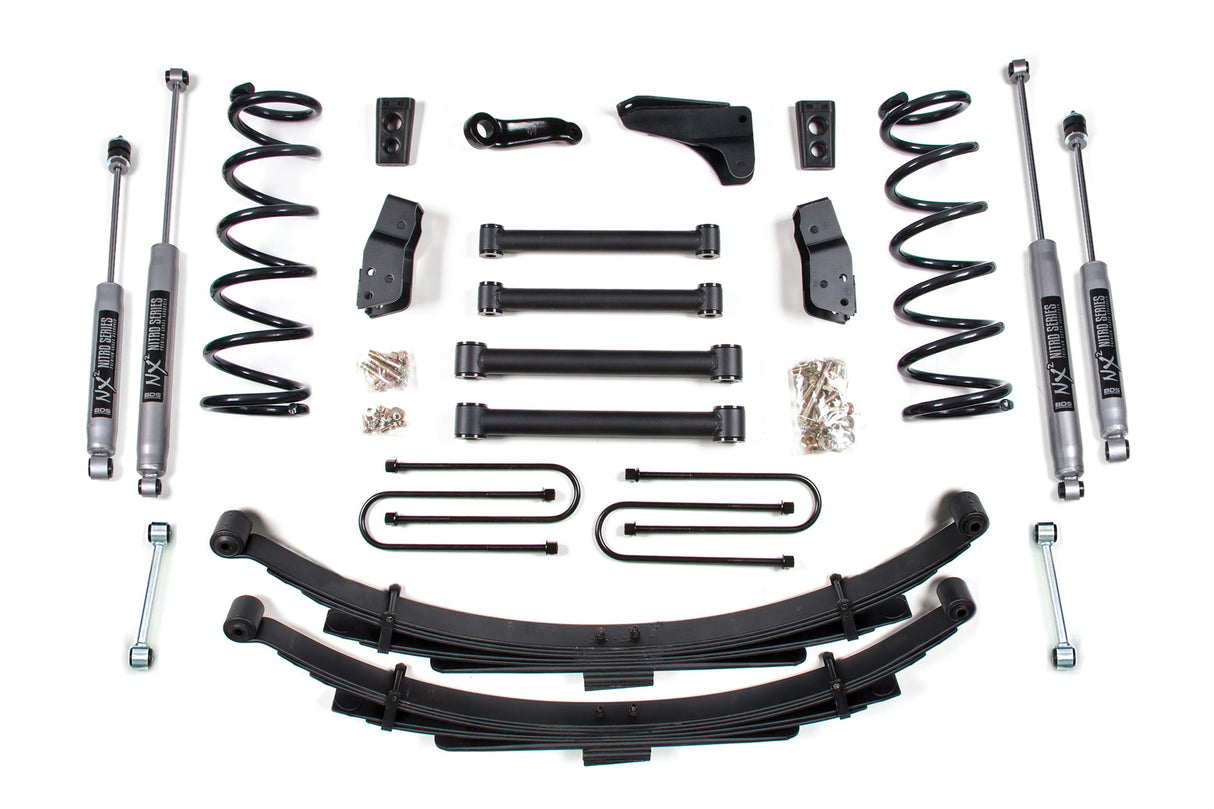

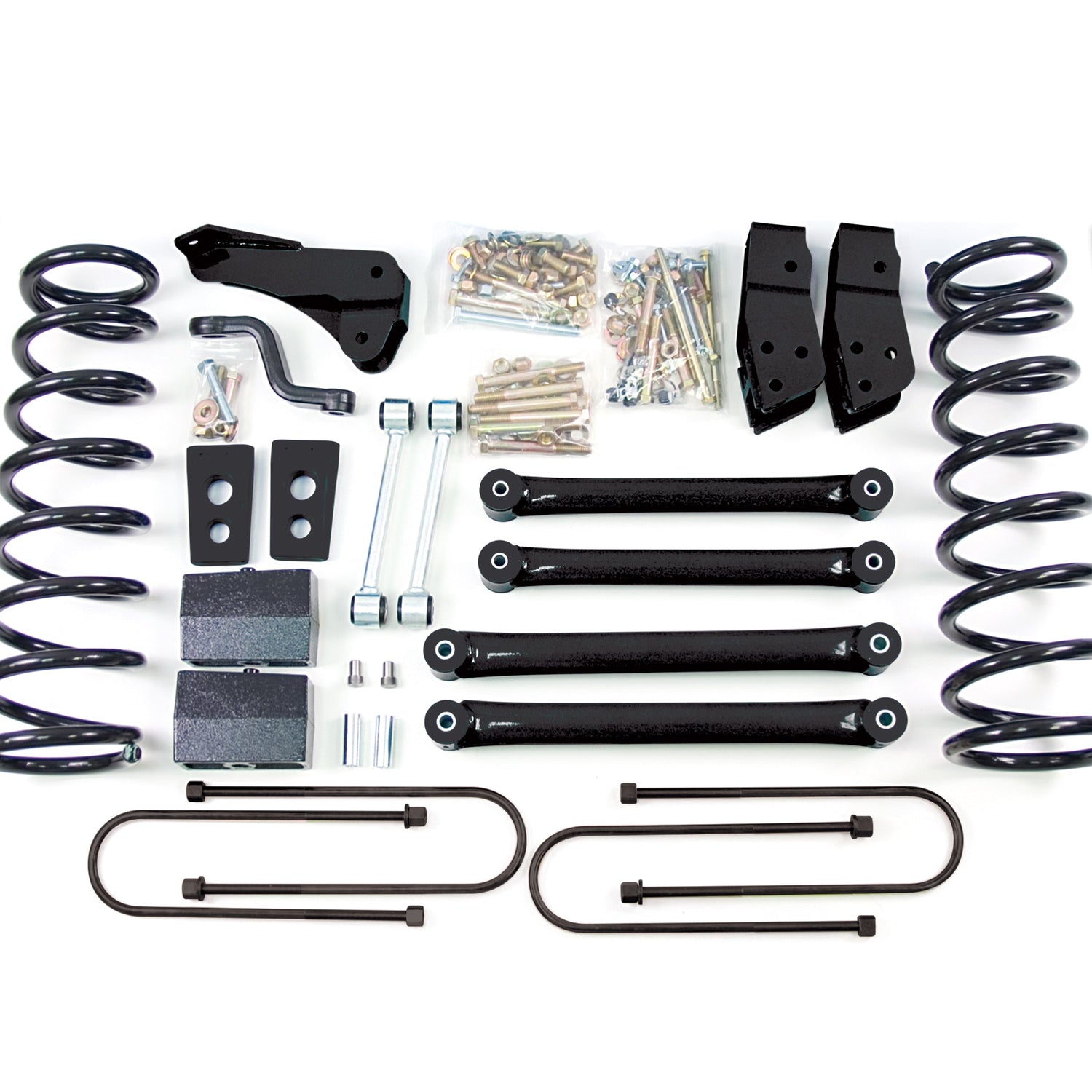

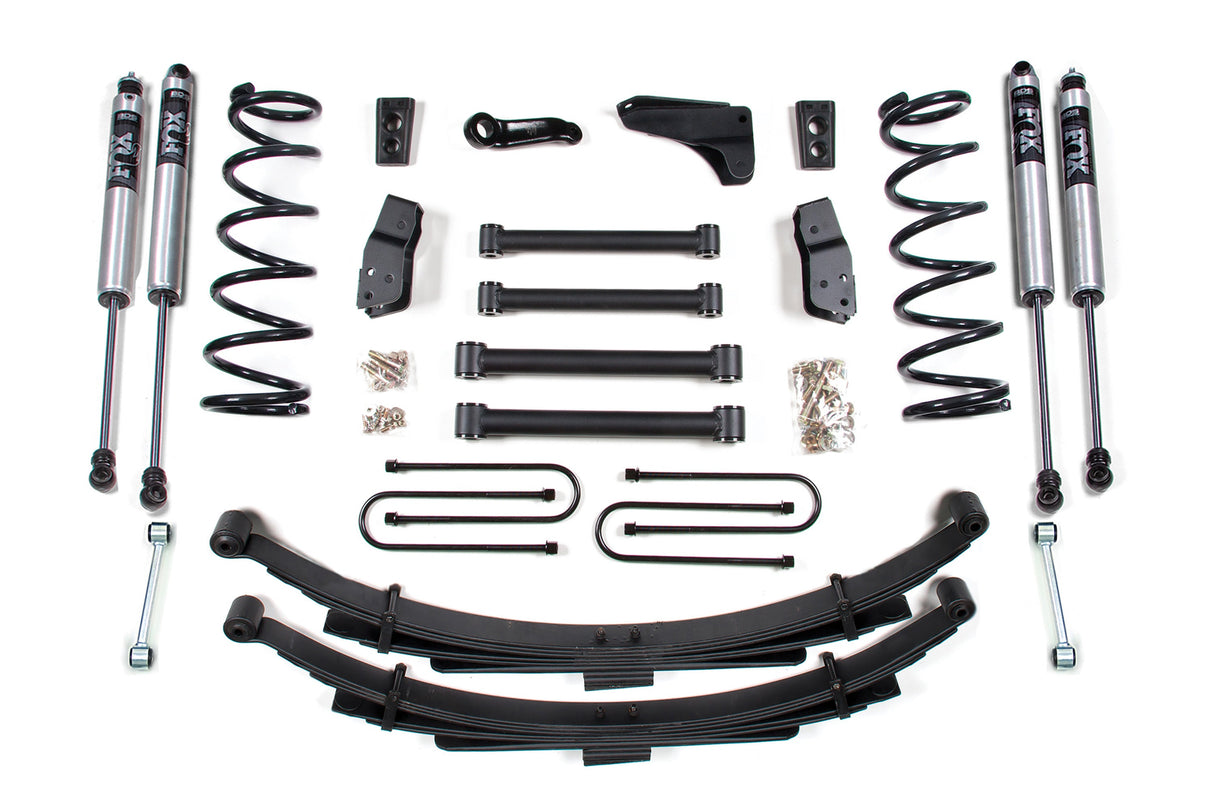

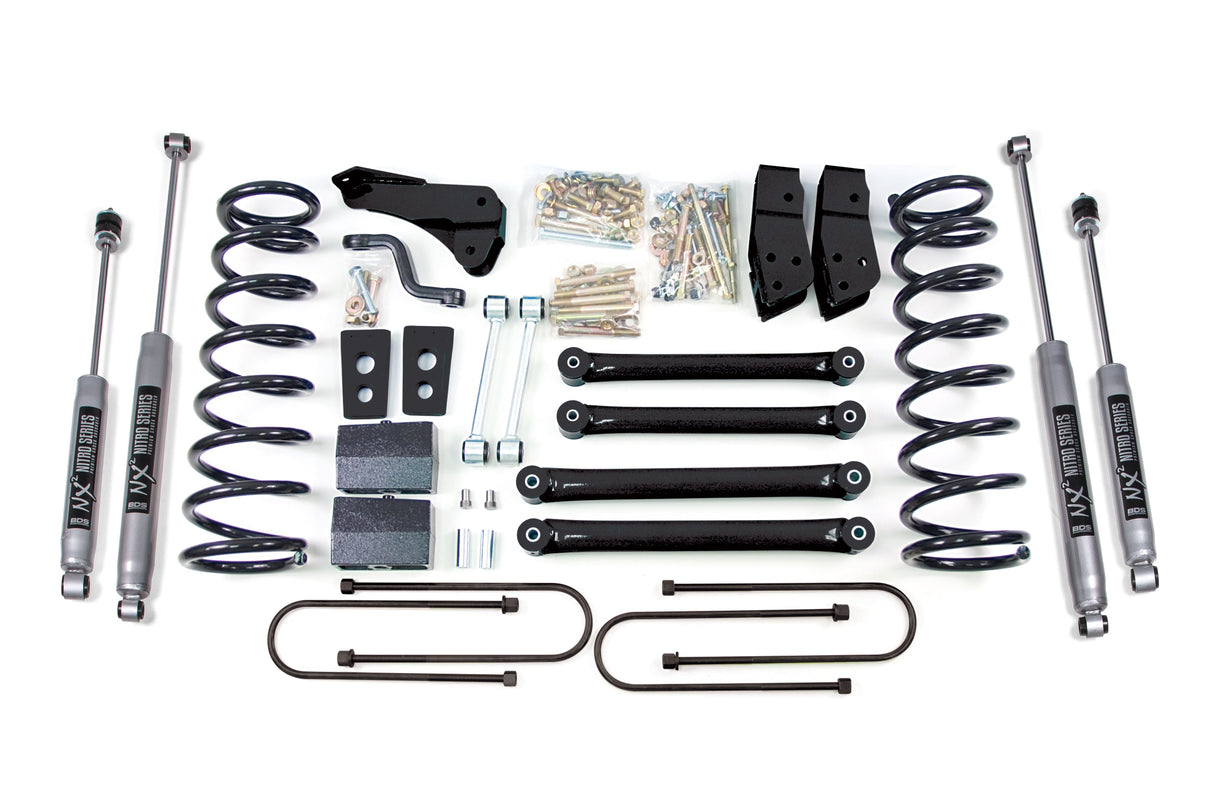

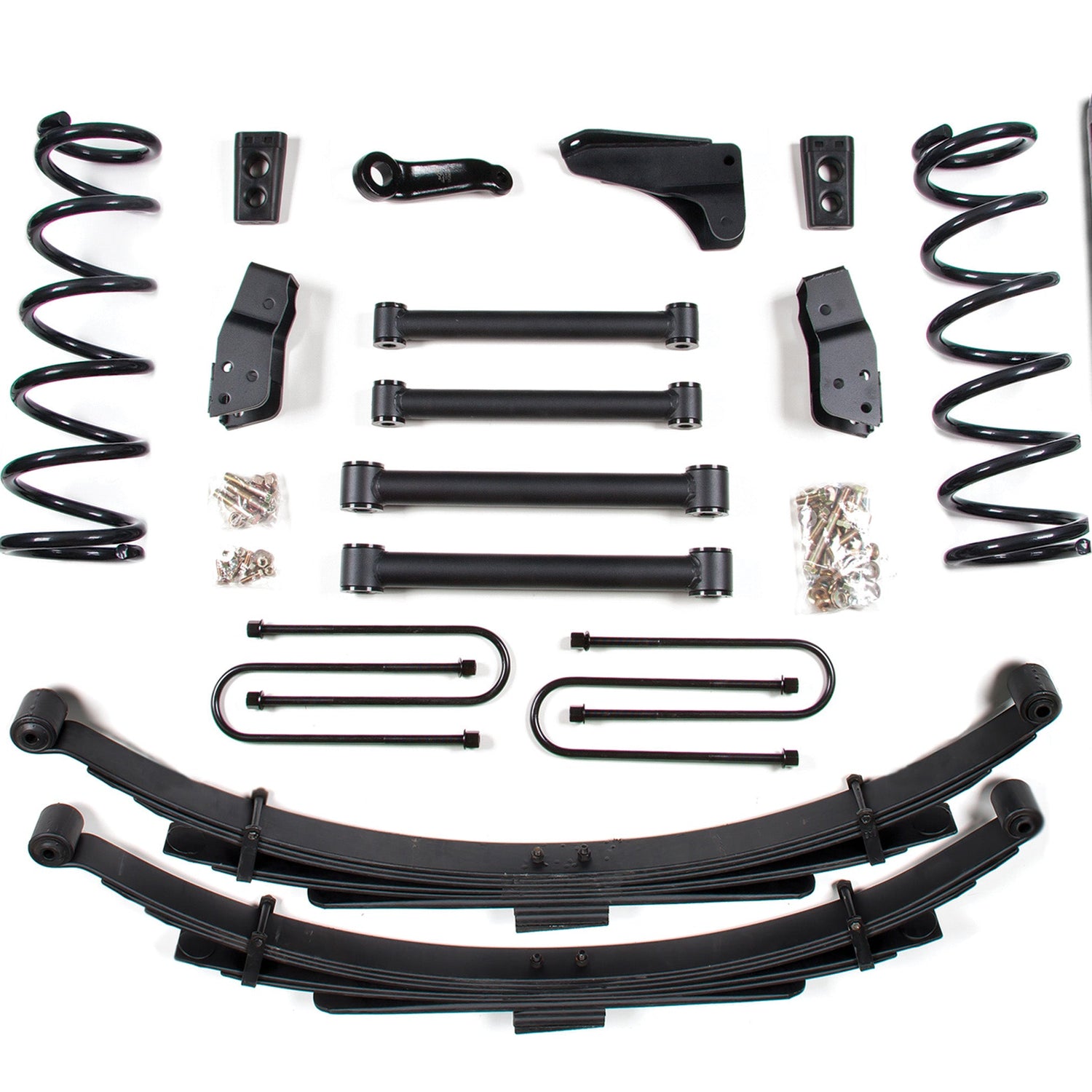

4-Inch Lift Kit for 2008 Dodge Ram 2500 Power Wagon 4WD
Description
Description
Transform your 2008 Dodge RAM 2500 Power Wagon truck with this 4-inch lift kit from BDS Suspension. Elevate stance, performance, and capability with ease, utilizing everything necessary for proper clearance up to 36" tires.
With BDS's engineered longer lower control arms and relocation bracket, the upper control arm is adjusted for optimal handling while the front includes Pro-Ride coil springs, control arms, pitman arm, track bar bracket, bump stops, sway bar links, and precision-tuned NX2 or FOX 2.0 shocks.
The rear boasts heavy-duty cast steel blocks and longer u-bolts, paired with NX2 Nitro or FOX 2.0 Performance shocks for the ultimate driving experience.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Rear Lift Option
Block Kit
- Includes a rear block and u-bolt kit to achieve a 4" rear lift.
- Blocks are made from cast iron for strength.
- Tapered for correct pinion angle.
- Steel pin and hole are offset to restore axle position.
Leaf Springs
- BDS leaf springs provide a 5" rear lift and come with u-bolts.
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
Axle Diameter
The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.
Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Features & Benefits
- Tubular short arms improve strength, handling and caster control
- Heavy duty control arm brackets maintain proper suspension geometry
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front track bar relocation bracket to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
Recommended Tires & Wheels
(Trimming may be required)
- 36 x 12.5 with 17 x 9 and 5 in. Backspace
4-Inch Lift Kit for 2008 Dodge Ram 2500 Power Wagon 4WD | SKU BDS1767FS
