6-Inch Lift Kit w/ Radius Arms for 2019-2024 Dodge Ram 2500 w/ Rear...
Description
Description

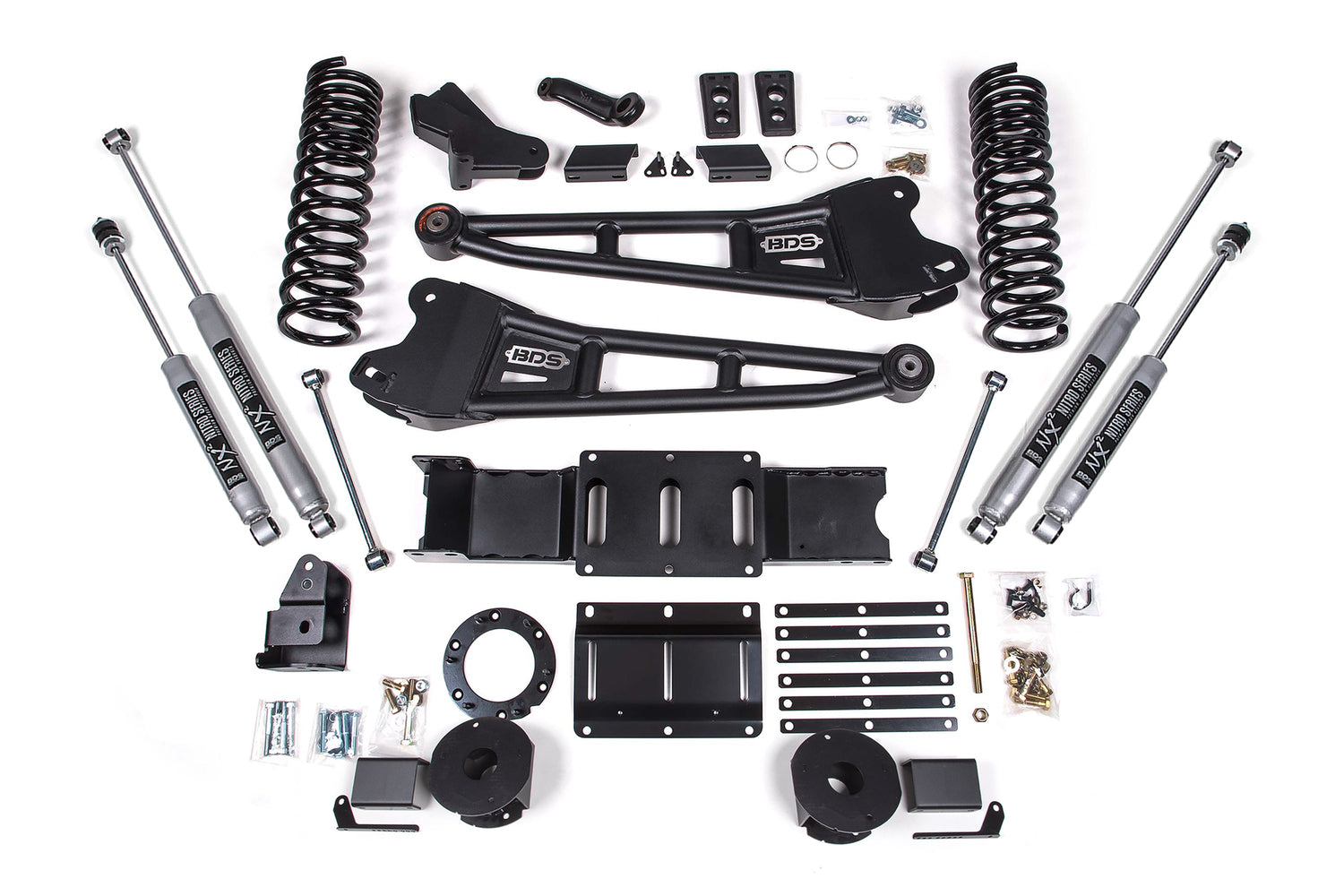

The front portion of the kit contains diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
For proper use of the factory front driveshaft, an indexing ring and new transmission crossmember are provided for transfer case indexing at this height. In the rear, this kit uses heavy duty air bag spacers, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks. Heavy duty
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy-duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Features & Benefits
- Heavy duty 4-link arms improve strength, handling and caster control
- High strength progressive rate coil springs for a great ride on any terrain
- Track bar relocation brackets to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
- BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
Recommended Tires & Wheels
(Trimming may be required)
- 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 37 x 13.5 with 20 x 9 and 5.625 in. Backspace
Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
6-Inch Lift Kit w/ Radius Arms for 2019-2024 Dodge Ram 2500 w/ Rear Air Ride 4WD Diesel | SKU BDS1736FS/BDS1736H
