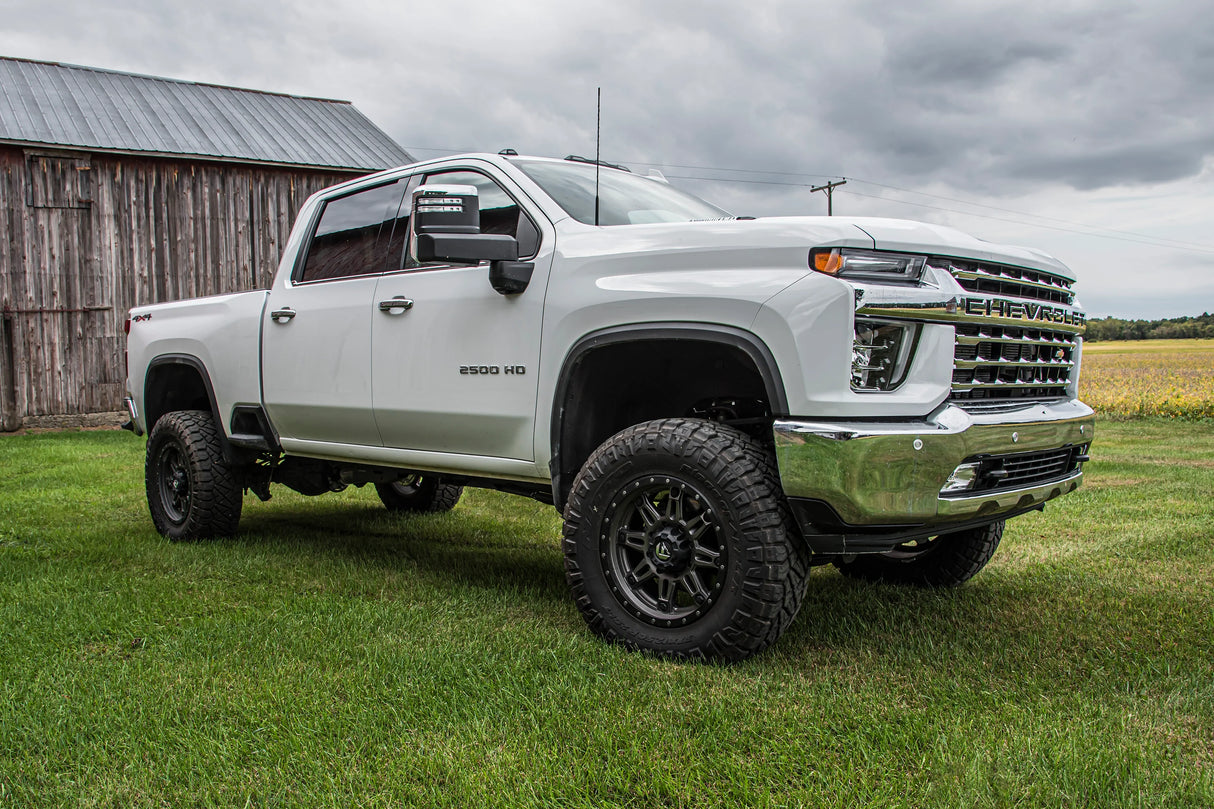

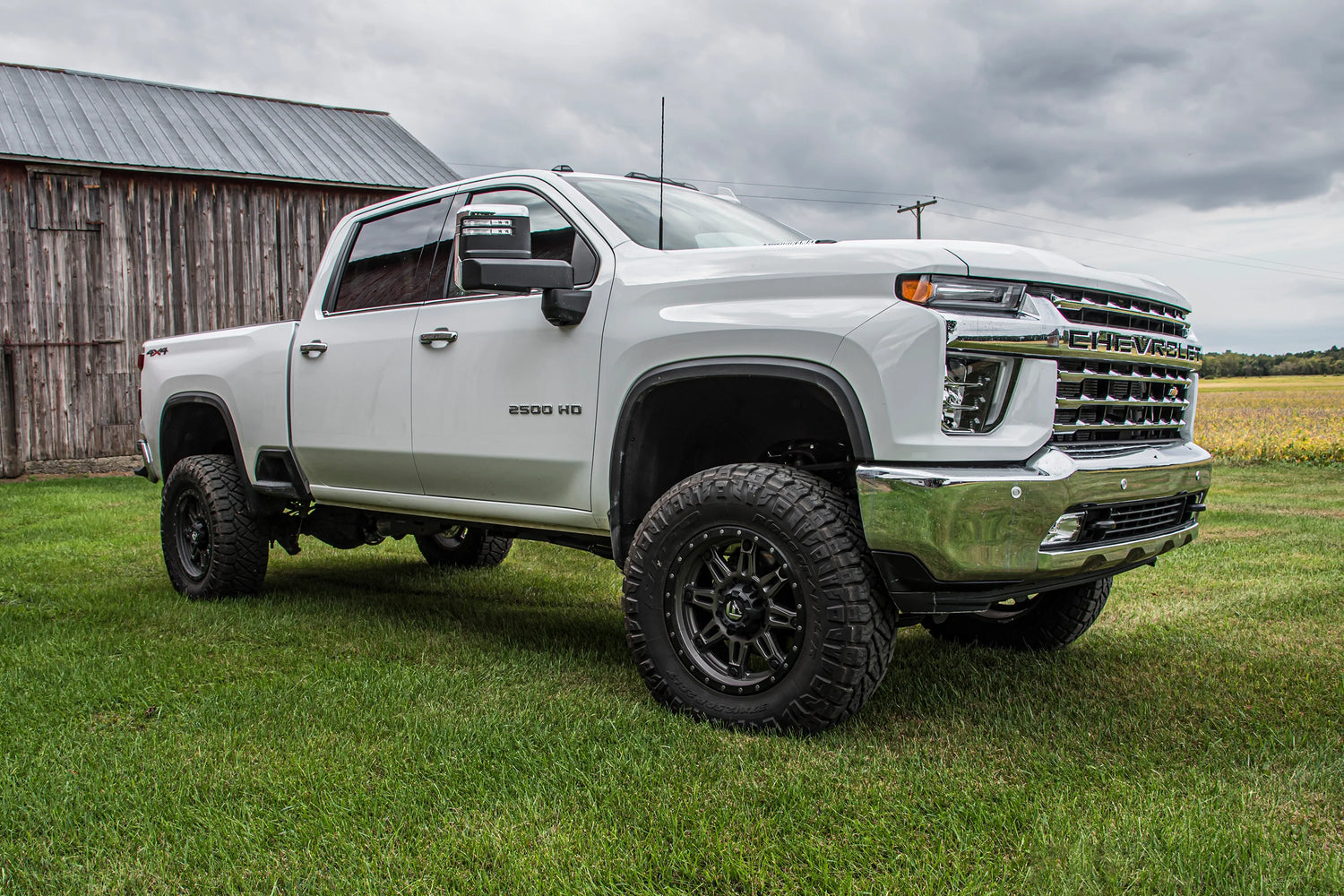

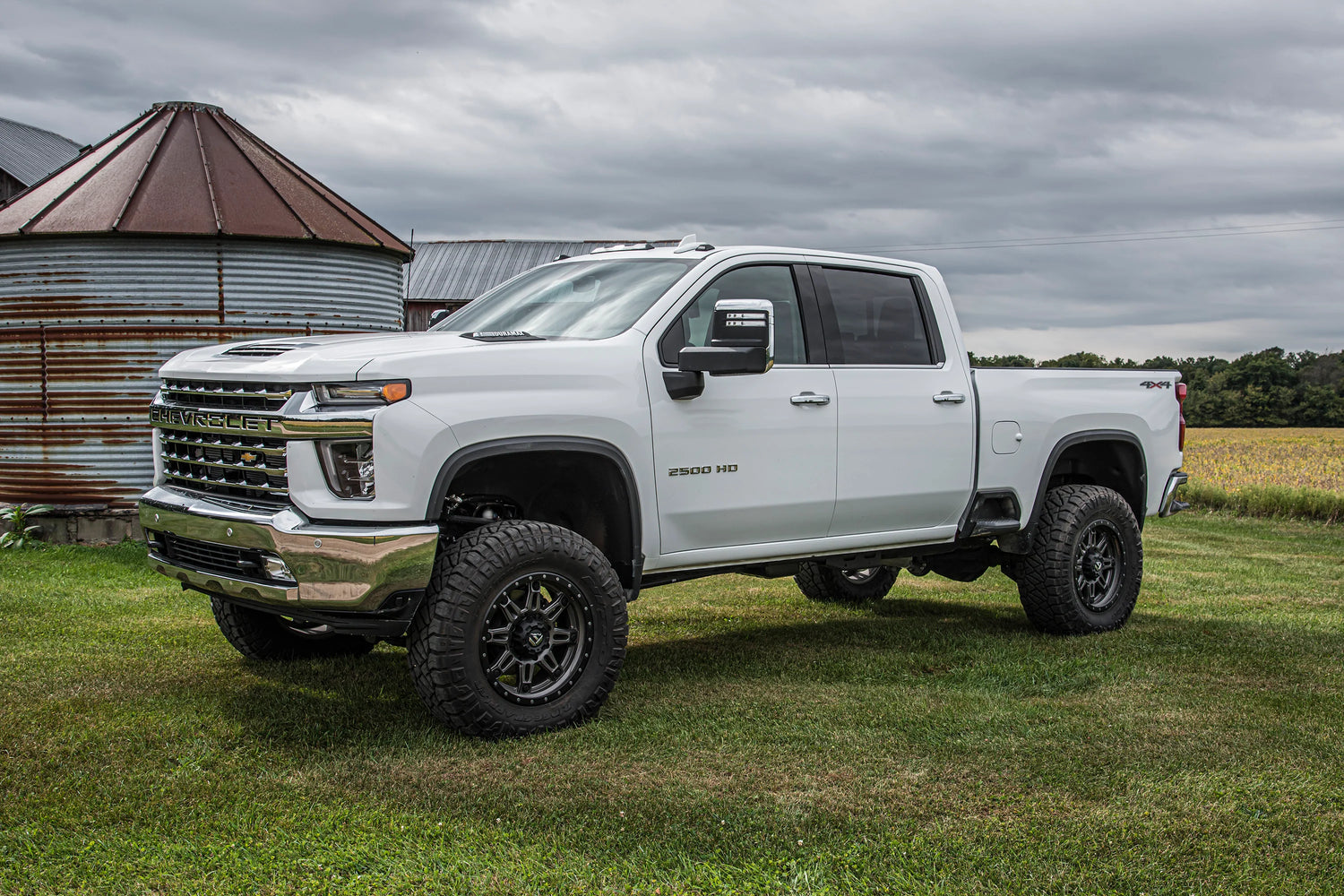

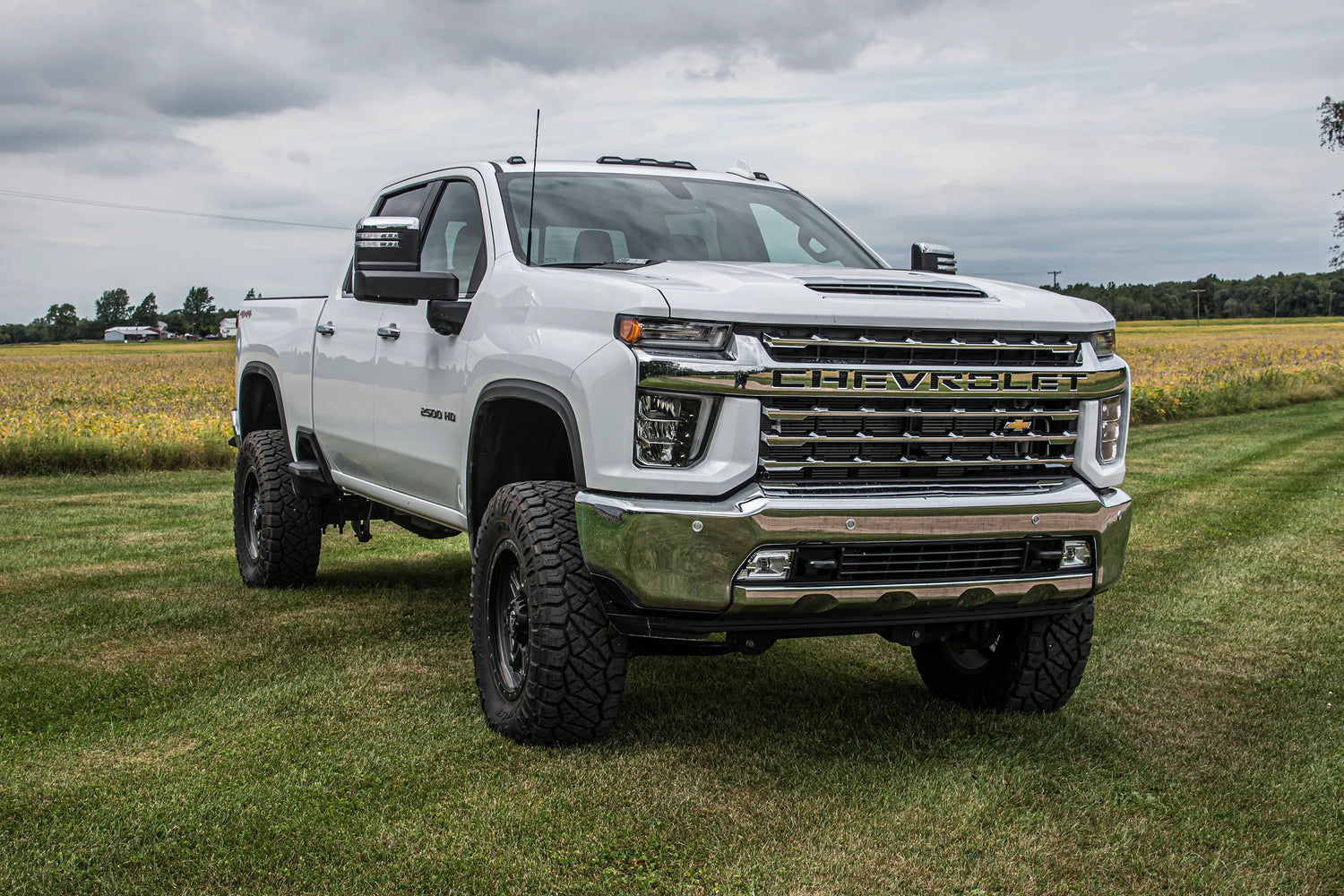

5 Inch Lift Kit for 2020-2026 Chevy Silverado or GMC Sierra 2500HD/3500HD 4WD

Take your 2020–2026 Chevy Silverado or GMC Sierra 2500HD/3500HD to the next level with the BDS 5-Inch Lift Kit. Designed to improve stance, performance, and capability, this complete kit gives your truck up to 37″ tire clearance with upgraded strength, geometry correction, and premium shocks. :contentReference[oaicite:0]{index=0}

Why Choose This Kit?

• Full Suspension Performance Upgrade — Includes torsion bar relocation brackets, high-arched ¼-inch steel crossmembers, diff-relocation brackets, and heavy-duty skid plates to protect vital components.
• Steering Geometry Corrected — CNC-machined ductile iron steering knuckles keep your steering tight and alignment consistent at 5″ lift.
• Rear Lift Block Options — Options include blocks with or without overload springs, plus matching U-bolts to maintain load capacity and factory ride quality.
• Shock Choices to Fit Your Style — Choose between FOX 2.0 Performance monotube or NX2 Nitro twin-tube, both suited for off-road abuse or daily driving.
• Tire Fitment Up To 37″ — With proper wheel width and backspacing, this lift supports aggressive tire sizes while managing clearances.

Fitment & Specifications

• Fits 2020–2026 Chevy Silverado / GMC Sierra 2500HD & 3500HD (4WD).
• Front and rear lift height: **5 inches** (front via cross-member, rear via block)
• Shocks included: Yes (pick FOX 2.0 or NX2)
• Tire/Wheel recommendations:
  • 35×12.5 with 17×9 (4.625″ backspacing)
  • 35×12.5 with 20×10 (5.5″ backspacing)
  • 37×12.5 with 20×9 (5.5″ backspacing)

Important Notes

• Requires frame bracket modification.
• Torsion bar tool required to load/unload torsion bars (GM tool #CH48809).
• Two-piece rear driveshaft trucks need a carrier bearing drop kit.
• Stock 17-18″ wheels often can’t be reused due to tie-rod end interference; stock 20″ wheels work with up to 35×12.50.
• Highway use in 4WD may cause minor front driveline vibrations—consider a dual Cardan front shaft if this is a concern.
• Some trimming may be necessary depending on your wheel and tire setup.
• Not compatible with AT4X or ZR2 models due to different lower control arm profiles.
