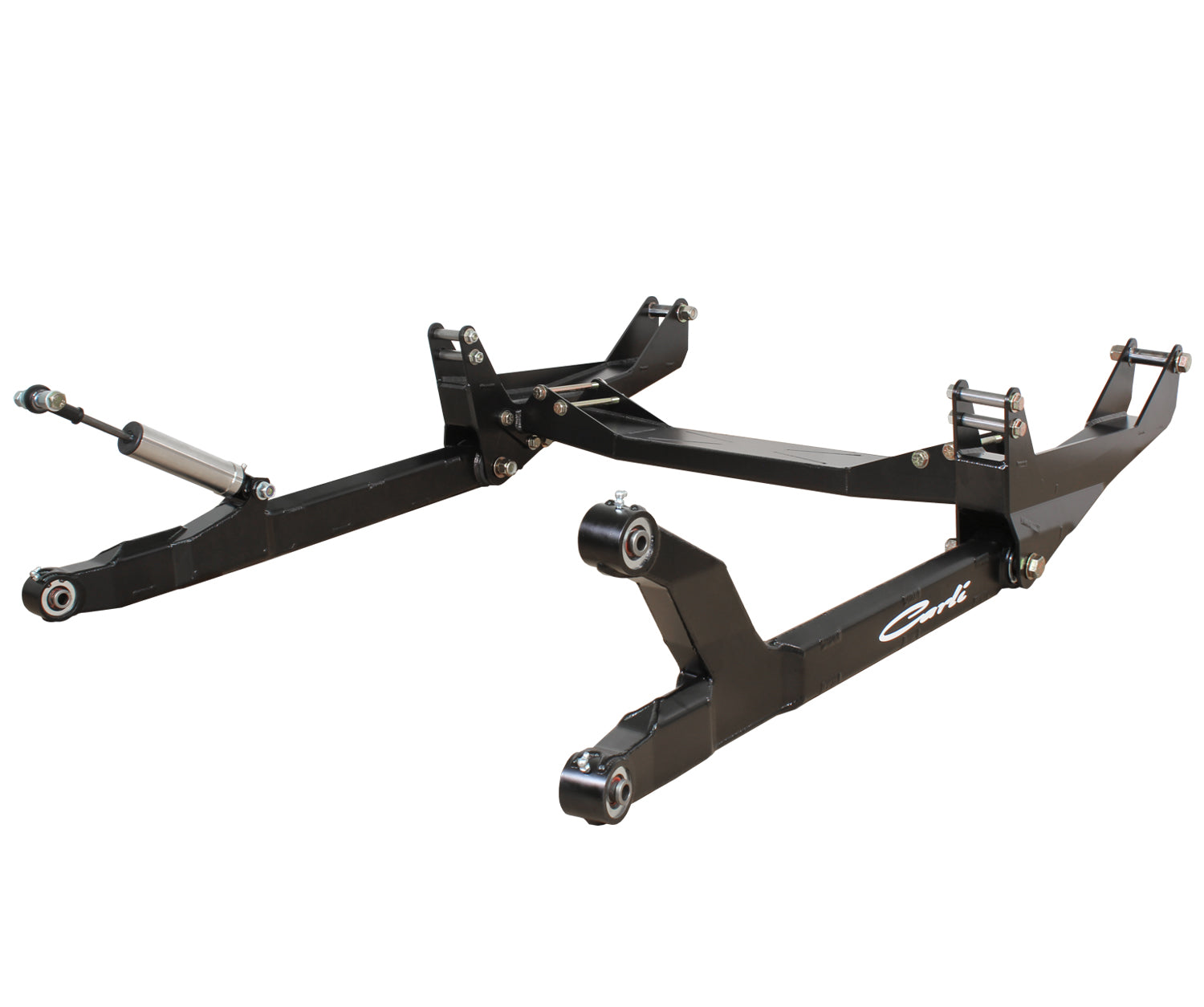

03-09 RAM 2500/3500 4X4 RADIUS ARM SYSTEM & X-MEMBER - 6" LIFT

SKU: CS-DRA6-03-S
– 3 Link Design with Stainless Axle Control Shock for Max Articulation
– 2 piece cross-member brace to existing frame structure (Pictured with 1-piece)
– 3/16″ Construction, 1/4″ Internal Gusseting
– 17-4 Stainless Serviceable Spherical Bearings
– For 6″ Lift Systems
– Fitment: 2003-09 Ram 2500/3500 4×4

Description

Carli 6″ lift radius arms were engineered for exact geometry. The result is maximum strength 3/16″ construction with full-length 1/4″ internal gussets, zero-bind axle articulation thanks to the axle control shock, and maximum wheel travel given their length. The design is a 3 link with a custom axle control shock on the driver’s side arm. A custom built and tuned stainless plunger shock controls low-speed axle articulation movement maintaining precise suspension geometry offering the longest service life and most articulation of any long-arm conversion.
