Description
Description

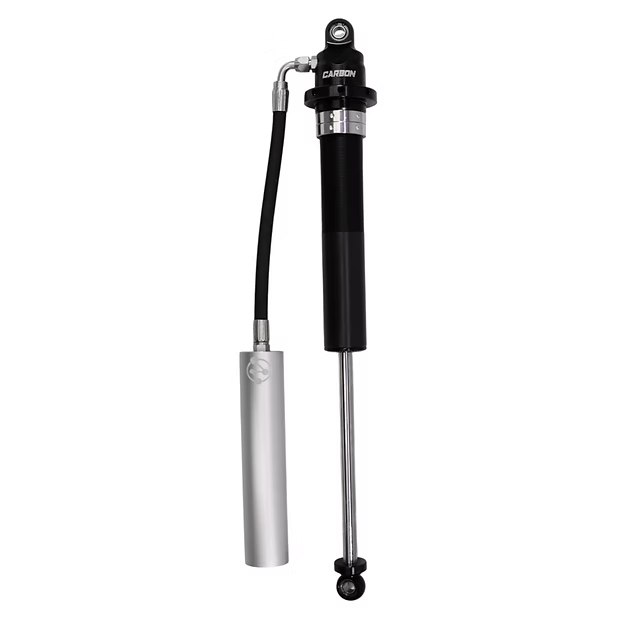

Dial in your suspension with the Carbon Shocks 2.5" Coilover – 12" Stroke. Proudly manufactured in the USA from American-made and sourced materials, every shock is machined in-house at Carbon Shocks' Oklahoma facility for top-tier quality, consistency, and fitment.
Why Choose the Carbon Shocks 2.5" Coilover?
- Made in the USA – Machined in-house in Oklahoma from American-made and sourced materials for consistent quality and fitment.
- Serious 12" stroke – Long-travel coilover built to soak up big hits and rough terrain.
- Corrosion-resistant body – Precision-honed American D.O.M. steel tubing finished in rugged black Cerakote, with an optional stainless steel upgrade available on request.
- Hardened, high-strength shaft – Induction-hardened, chrome-plated 1050 steel shaft heat-treated to 60–72 HRC for exceptional resistance to bending and wear.
- Billet aluminum construction – All aluminum parts CNC-machined from Kaiser 6061 or 7075 billet for the right balance of strength and weight.
- Tested before it ships – Every shock gets a 300 PSI nitrogen pressure test for 24 hours to validate seal integrity.
- Proprietary Blue ICE fluid – High thermal stability for consistent damping under extreme conditions.
- Reservoir flexibility – Choose non-reservoir, billet race reservoirs, or dual-speed adjustable reservoirs to match your setup.
Specifications
- Stroke Length: 12"
- Compressed Length: 20.1"
- Extended Length: 32.1"
- Typical Ride Height: ~26" (at 50% travel)
- Shock Body Material: Precision-honed American D.O.M. steel tubing, black Cerakote finish (optional stainless steel upgrade available on request)
- Shock Shaft: Induction-hardened, chrome-plated 1050 steel, heat-treated to 60–72 HRC, minimum yield strength 100,000 PSI
- Aluminum Components: CNC-machined Kaiser 6061 or 7075 billet aluminum
- Pressure Testing: 300 PSI nitrogen test for 24 hours
- Operating Pressure: Nitrogen charge of 150–200 PSI for optimal performance
- Shock Oil: Carbon Shocks proprietary Blue ICE shock fluid
- Misalignment Spacers: Standard 1.5" width x 0.5" bore, compatible with most common off-road setups
Reservoir Options
- Non-Reservoir – Lightweight and efficient for vehicles where external cooling isn't required.
- Aluminum Race Reservoirs – Fully billet, hard-anodized construction with a precision-machined IFP (internal floating piston) and wear-band support to handle intense off-road abuse.
- Dual-Speed Adjustable Reservoirs – Independent High-Speed and Low-Speed compression adjusters for complete control over shock tuning and terrain response.
Key Features at a Glance
- USA-machined 2.5" coilover - In-house build quality out of Oklahoma.
- 12" of stroke - Long-travel performance for demanding terrain.
- Cerakote D.O.M. steel body - Corrosion resistance with an optional stainless upgrade.
- Hardened chrome-plated shaft - 60–72 HRC, 100,000 PSI minimum yield strength.
- Blue ICE shock fluid - Stable damping under heat and hard use.
- Three reservoir configurations - Non-reservoir, billet race, or dual-speed adjustable.
Notes
- Nitrogen charge required – Runs best with a 150–200 PSI nitrogen charge.
- Optional stainless body – Stainless steel shock body upgrade available upon request in place of the standard Cerakote-finished D.O.M. steel.
- Reservoir selection – Confirm your reservoir option (non-reservoir, aluminum race, or dual-speed adjustable) for your application before ordering.
- Warranty – Backed by a 12-month warranty.
