Description
Description
This kit is designed specifically for the 3500 model trucks.

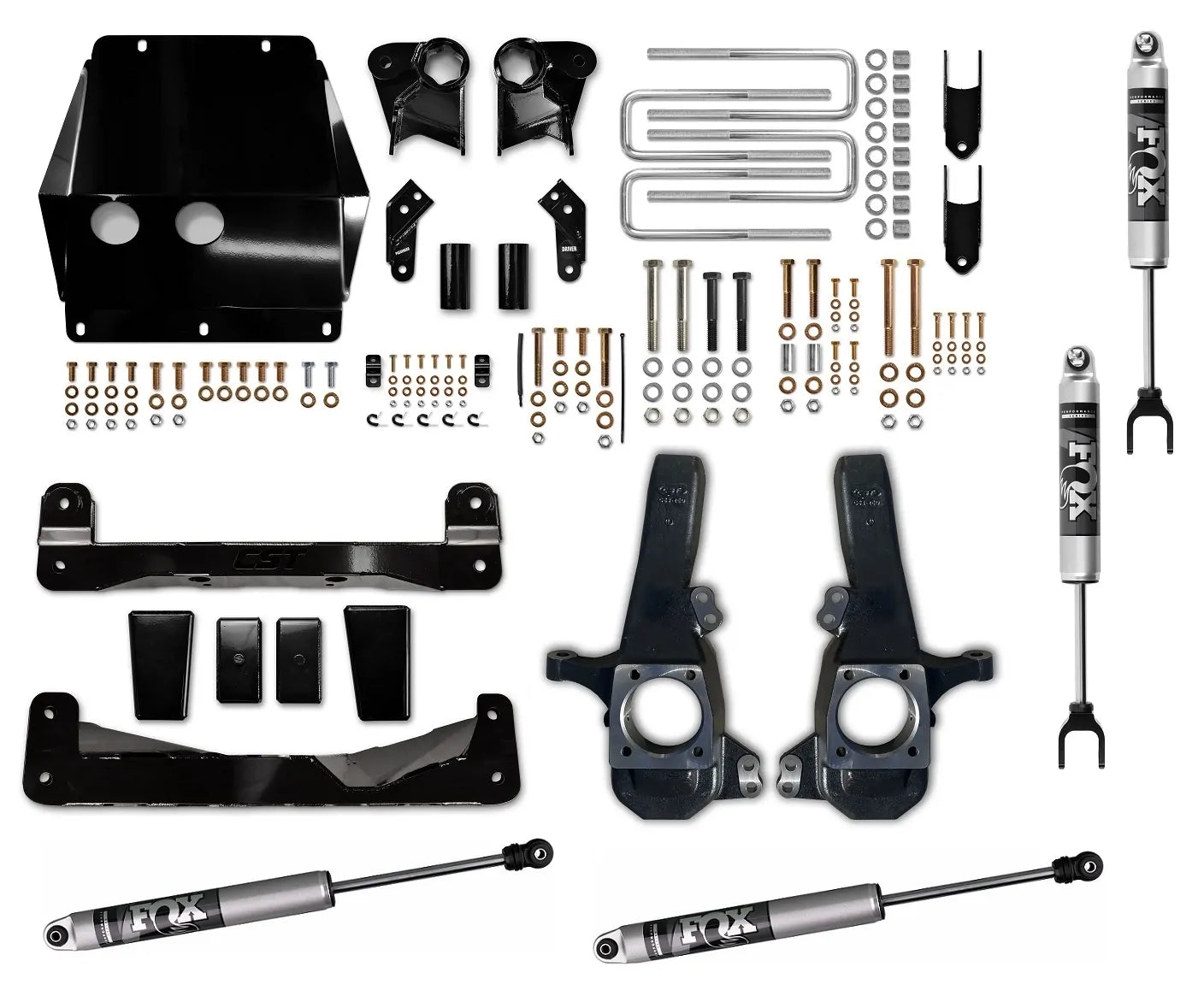

CSK-G23-33F | Stage 3 Suspension System includes the complete lift kit with front and rear FOX 2.0 Performance Series IFP shocks.
CST 4″ STL (stock torsion location) Performance Suspension System for the 2020+ Chevy & GMC 2500 HD Trucks. This new kit will provide superior performance on or off road. Sub frames are designed to give you the most ground clearance while protecting vital front suspension components. All CST products are precision fabricated in house to provide superior strength and durability. CST Performance Suspension products are designed & fabricated in the U.S. and exceed all industry standards for manufacturing.
CST 4” KIT FEATURES
- NO NEED TO CUT/MODIFY THE FACTORY TORSION X-MEMBER
- NO NEED TO CUT/MODIFY THE UCA POCKET
- SUPERIOR CONTROL ARM, CV & TIE ROD ANGLES
- HIGH CLEARANCE, FULLY BOXED X-MEMBERS
- KIT INCLUDES STEEL LOWER SKID PLATE TO PROTECT FRONT DIFF
- INCREASED SUSPENSION TRAVEL, TIRE & GROUND CLEARANCE
- STOCK TORSION LOCATION (STL) FOR MAXIMUM GROUND CLEARANCE
- ABILITY TO RE-USE O.E. FRONT SHOCKS (KIT INCLUDES FRONT SHOCK ADAPTERS)
- GM STAILITRAK APPROVED
- PARTS COVERED IN A HIGH-QUALITY GLOSS BLACK POWDER COAT FINISH
- NO WELDING REQUIRED
- REDUCED INSTALL TIME WHEN COMPARED TO OTHER MANUFACTURERS KITS
- CAST IRON KNUCKLES
- CST SUPERIOR QUALITY FIT, FUNCTION AND FINISH
- IMPROVED HANDLING
- KIT RETAINS THE O.E. LOAD RATING/TOW CAPACITY
- ABILITY TO PUT BACK TO STOCK
- TRUE 4″ LIFT
- LEVEL STANCE WITHOUT SACRIFICING RIDE QUALITY
- CLEARS UP TO 37″ TIRES
- MADE IN THE U.S.A.
- CST FOX-Series KITS INCLUDE FOX SHOCKS
Wheel & Tire Fitment
- 17″ Wheels – 5″ Max backspacing
- 18″ Wheels – 5.75″ Max backspacing
- 20″ Wheels – 6″ Max backspacing
17×9 w/5″ Backspacing 37×12.5″ tire / minor trimming
20×9 w/5″ Backspacing 37″ tire / minor trimming
20×9 w/5″ Backspacing 35″ tire / no trimming
Options for the 4″ Kit:
CSS-C2-20 Boxed Upper Control Arms with O.E. Style Bushings and High Angle Ball Joints (see below)
CSA-6534 DIRT Series 2.0 Remote Reservoir Front Shock
CSA-6533 DIRT Series 2.0 Remote Reservoir Rear Shock
CSS-C33-4 2.0 Single Shock Mounting Kit
CSA-7523 PRO Series Remote Reservoir 14 Way Compression Adjustable Front Shocks
CSA-7524 PRO Series Piggyback 14 Way Compression Adjustable Rear Shocks
CSS-C33-9 2.5 Single Shock Mounting Kit
CSS-C29-25 Aluminum Front Skid Plate
CSS-C24-18 Heavy Duty Tie Rod Ends
