Description
Description
Upgrade or replace the rear u-bolts on your 2011–2026 Ford F-250 or F-350 Super Duty with this custom-built, made-to-order u-bolt kit from PMF Suspension (Precision Metal Fabrication) — one of the most trusted names in Ford Super Duty suspension components. Each kit is custom bent in-house to your exact specifications using industry-leading materials, ensuring a precise fit whether you're running a stock setup, a lift kit with blocks, or a high-horsepower build that demands maximum clamping strength.
These u-bolts are a u-bolt down configuration, meaning the u-bolt nuts sit underneath the bottom of the axle — matching the factory orientation on these trucks.
⚠️ Built to Order — Please allow 7–12 business days for processing and fulfillment.

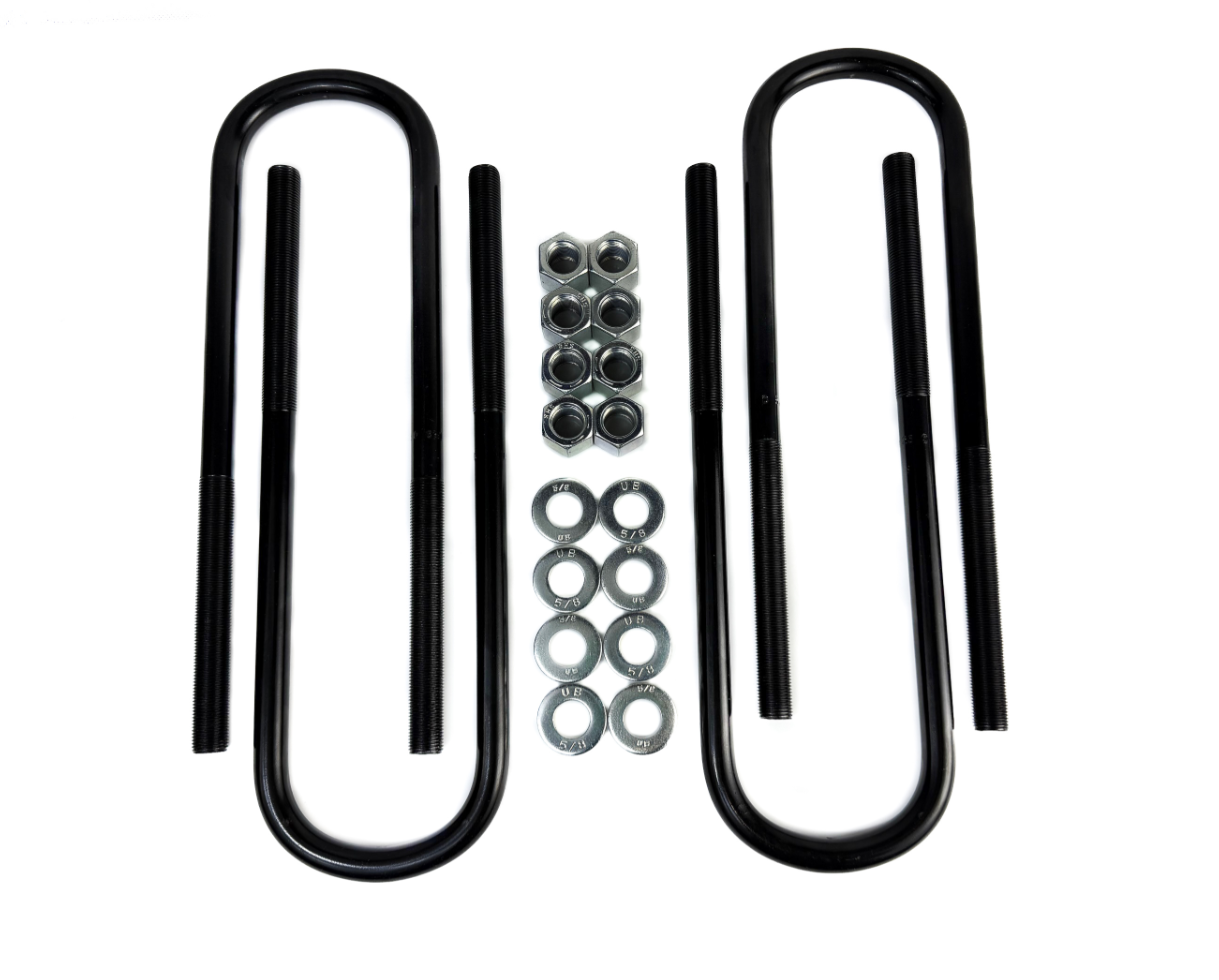

Kit Includes
- (4) Custom-bent U-bolts
- (8) Tall heavy-duty nuts
- (8) Extra-thick grade 8 washers
- 3/4" diameter kits also include Adjustable Location U-Bolt Top Plates
Vehicle Fitment
- 2011 Ford F-250 Super Duty (2WD & 4WD, SRW & DRW)
- 2012 Ford F-250 Super Duty (2WD & 4WD, SRW & DRW)
- 2013 Ford F-250 Super Duty (2WD & 4WD, SRW & DRW)
- 2014 Ford F-250 Super Duty (2WD & 4WD, SRW & DRW)
- 2015 Ford F-250 Super Duty (2WD & 4WD, SRW & DRW)
- 2016 Ford F-250 Super Duty (2WD & 4WD, SRW & DRW)
- 2017 Ford F-250 Super Duty (2WD & 4WD, SRW & DRW)
- 2018 Ford F-250 Super Duty (2WD & 4WD, SRW & DRW)
- 2019 Ford F-250 Super Duty (2WD & 4WD, SRW & DRW)
- 2020 Ford F-250 Super Duty (2WD & 4WD, SRW & DRW)
- 2021 Ford F-250 Super Duty (2WD & 4WD, SRW & DRW)
- 2022 Ford F-250 Super Duty (2WD & 4WD, SRW & DRW)
- 2023 Ford F-250 Super Duty (2WD & 4WD, SRW & DRW)
- 2024 Ford F-250 Super Duty (2WD & 4WD, SRW & DRW)
- 2025 Ford F-250 Super Duty (2WD & 4WD, SRW & DRW)
- 2026 Ford F-250 Super Duty (2WD & 4WD, SRW & DRW)
- 2011–2026 Ford F-350 Super Duty (2WD & 4WD, SRW & DRW)
Compatible with: 6.7L Power Stroke Diesel, 6.2L V8 Gas, 7.3L V8 Gas engines. Designed for rear axle suspension use only. Front u-bolt kits are available — contact us directly to order.
Configuration Guide — How to Order the Right Kit
Step 1: U-Bolt Diameter
5/8" Diameter (Standard) — This is the factory diameter that came stock on these trucks. Suitable for most street, towing, and mild off-road applications. Recommended for trucks with up to 7" lift blocks.
3/4" Diameter (Upgraded) — Recommended for high-horsepower builds and trucks running lift blocks taller than 7". The larger diameter provides significantly increased clamping force and resistance to axle wrap. Kits include upgraded Adjustable Location U-Bolt Top Plates and convert to a u-bolt-up configuration (nuts and plate on top of the leaf pack).
Step 2: Block Height
Select the height of the lift block(s) you are running. Measure the block height at the center — directly over the top of the axle. If you fall between sizes, always round up to the taller option. Available heights: None (stock), 1", 2", 3", 4", 5", 6", 7", 8", 9", 10".
Step 3: Leaf Pack Type
Without Top Overload Leafs (Standard Pack) — A standard leaf pack where the topmost leaf runs full length from eyelet to eyelet. Typical total thickness is 2–3".
With Top Mounted Overload Springs — For trucks with a thicker leaf pack featuring a separate overload spring and spacer between the main pack and the top overload. This overload spring is not connected at either end. If your pack is thicker than 3", select this option.
Material & Construction
- Made from Grade 8 fine-thread threaded rod — the industry standard for high-strength suspension hardware
- Custom bent in-house at PMF's Tucson, Arizona facility using professional bending equipment
- Extra-thick washers for maximum load distribution and clamping surface
- Tall heavy-duty nuts for increased thread engagement and torque capacity
- Shipped in a raw (uncoated) finish — ready for your preferred coating or rust treatment
- All kits are made to order — custom bent to your exact configuration
Optional Add-On: Adjustable U-Bolt Top Plates (+$49.99)
Replaces your factory u-bolt top plates to allow the rear axle to be moved forward or rearward for alignment purposes. Compatible with lift blocks that feature adjustable alignment pins. Laser cut from 3/8" plate steel and CNC bent for maximum strength — significantly stronger than the factory 1/4" OEM plates. Fits axle diameters from 3.5" to 4.0", making them compatible with both single rear wheel (SRW) and dual rear wheel (DRW) Super Duty trucks with a 3" wide spring. Note: These require a lift leaf pack — they are NOT compatible with factory leaves.
About PMF Suspension
PMF Suspension (Precision Metal Fabrication) is a small, family-owned manufacturing facility based in Tucson, Arizona, specializing exclusively in Ford Super Duty suspension components. Trusted by F-250, F-350, and F-450 owners across the country, PMF products are known for precision craftsmanship, American-made quality, and real-world durability in towing, off-road, and performance applications.
Frequently Asked Questions
Q: Are these for the front or rear of the truck?
A: All standard kits are for the rear. Front u-bolt kits are available — please contact us directly.
Q: What axle diameter do I have?
A: Single Rear Wheel (SRW) trucks have a 3.5" axle. Dual Rear Wheel (DRW) trucks have a 4.0" axle.
Q: Do I need to upgrade to 3/4" u-bolts?
A: If you have a high-horsepower engine build OR are running lift blocks taller than 7", we strongly recommend upgrading to 3/4".
Q: What finish do these ship in?
A: All kits ship in a raw uncoated finish. We recommend applying your preferred rust inhibitor or coating after installation.
Q: How long until my order ships?
A: These are built to order. Please allow 7–12 business days for processing and fulfillment.
Part Number: PMF-UB-SR | Brand: PMF Suspension | Made in USA
Compatible search terms: 2011-2026 Ford Super Duty u-bolts, F250 F350 lift block u-bolts, PMF ubolts, Superduty rear suspension u-bolt kit, 6.7 Powerstroke u-bolts, Ford Super Duty leaf spring u-bolts, PMF-UB-SR-625, PMF-UB-SR-75
]]>
