Level out your 2014-2022 Ram 2500 4WD with factory rear air ride using the BDS Suspension 2" Front Coil Spacer Leveling Components. Bolt-in steel spacers raise the front 2", and new air ride sensor brackets bring the rear level with the front without working against the factory air system.
Why Choose the BDS 2" Air Ride Leveling Components?
- 2" Front Lift – Steel upper spacers sit on top of the factory coils to level out the nose.
- Pitched & Indexed Spacers – Shaped to match the Ram HD coil mount and bolted to the coil bucket so they stay indexed.
- Works With Factory Air Ride – Sensor relocation brackets level the rear while keeping the air ride within its factory parameters.
- Extended Bump Stops – Polyurethane bump stops control compression at the new ride height.
- Room for 35s – Tested with 35 x 12.50" tires on 17x9 wheels.

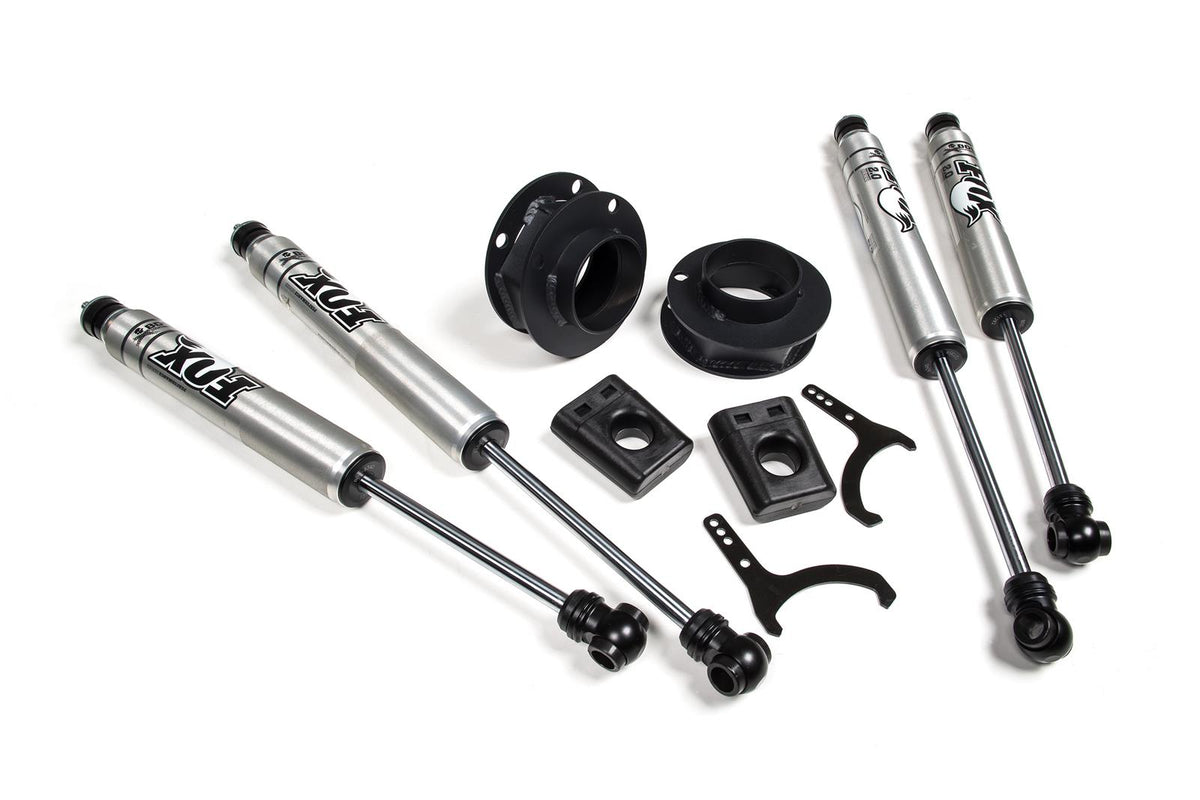

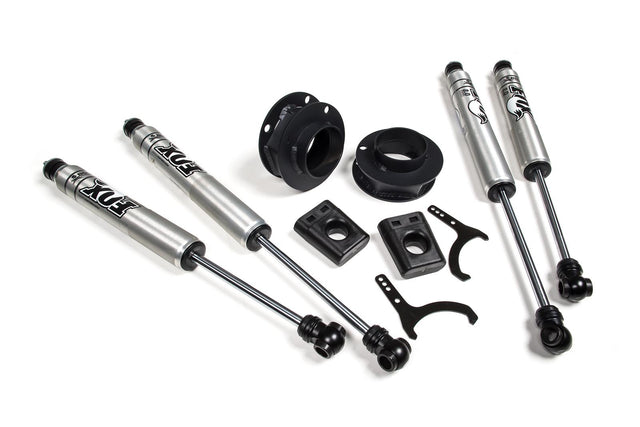

Kit Includes
- (2) 02444 – Dodge 2" Upper Strut Spacer
- (2) 02378BK – Front Bump Stops
- (2) 02975 – Air Ride Sensor Bracket
- (1) Bolt Pack 462 – (2) 6mm Nylock nut, (2) 6mm x 20mm bolt, (2) 6mm flat washer
- (1) Bolt Pack 605 – (2) 7/16"-14 x 1 1/4" grade 5 bolt, (2) 7/16"-14 prevailing torque nut, (4) 7/16" SAE washer
Installation Highlights
Front spacers bolt through the factory hole with the supplied hardware, and the factory coils and upper isolators go right back in. In the rear, the sensor brackets mount through the original ball stud hole. The new bump stops press into place using the truck's own weight.
Fits These Models
2014-2022 Ram 2500 4WD with factory radius arm front suspension and factory rear air ride.
Specifications
- Front Lift: 2"
- Tested Tire Size: 35 x 12.50"
- Tested Wheel Size: 17x9
- Tested Backspacing: 5"
Notes
- Designed only for Ram 2500 trucks with the factory radius arm front suspension and factory rear air ride.
- Shocks are not included with this part number.
- FOX rear shocks require an offset stem eliminator bracket and bolt pack 946.
- The center hole on the sensor bracket is recommended; the other holes change rear ride height by approximately 1/2" in either direction.
- Lift is a base figure. Final ride height varies with payload and the truck's original stance.
- An alignment is required after install. Re-torque all fasteners after 500 miles.
Installation Instructions Available Here
SKU: 012205
