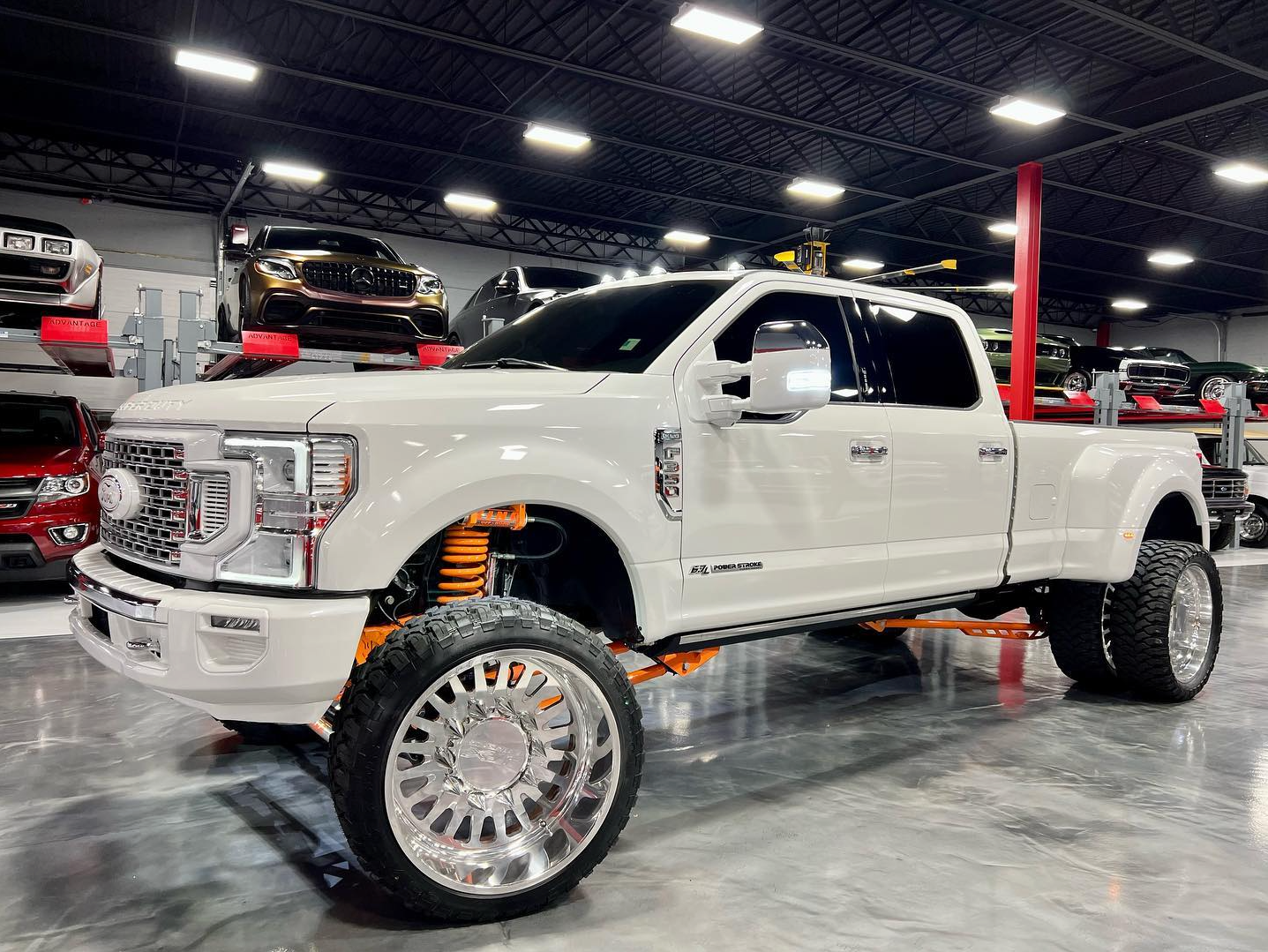

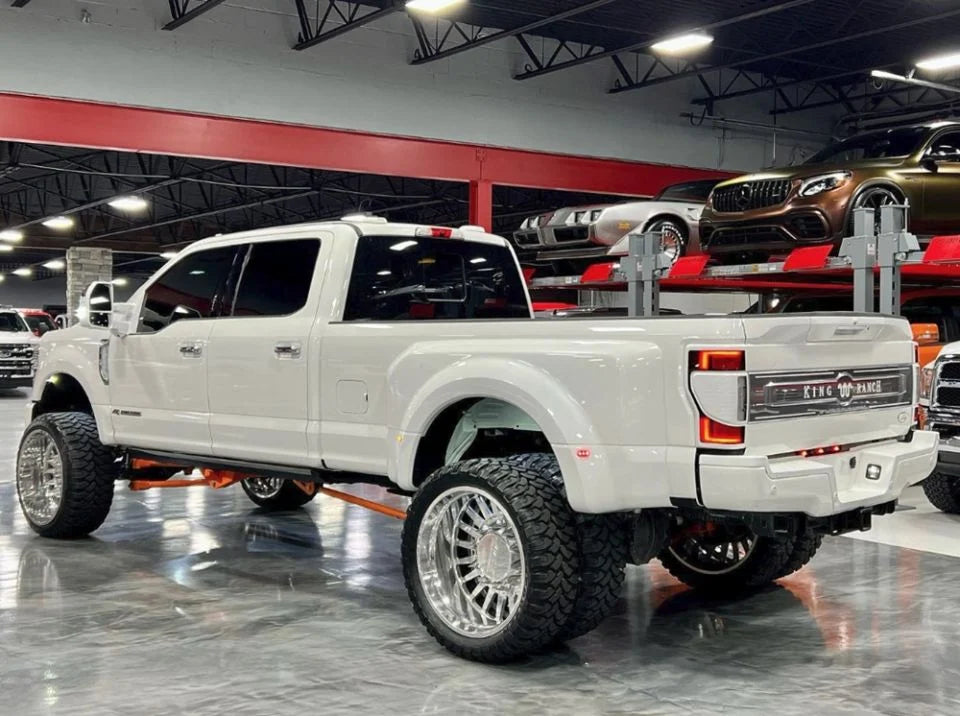

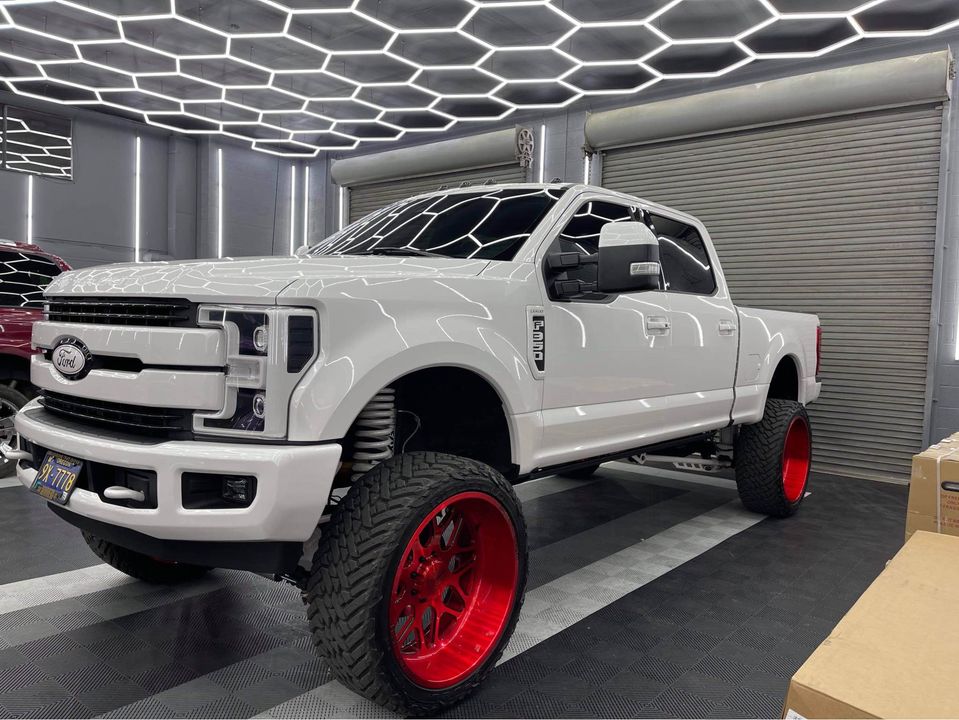

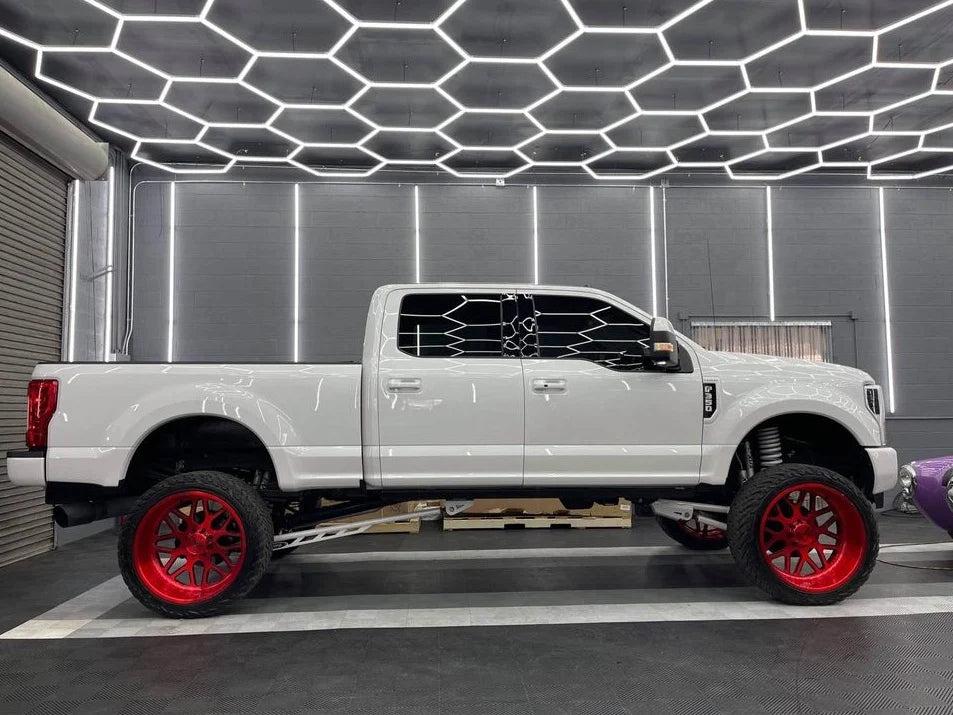

PMF 7" Alpha Lift Kit for 2023-2024 Ford Super Duty

The PMF 7" Alpha Lift Kit uses quality dual-rate front coils for a plush street ride with added travel, and a rear setup built to keep factory payload while controlling axle wrap under load.

• Fits: 2023, 2024 Ford Super Duty F-250, F-350, F-450
• Intended use: Comfortable daily driving, confident towing, and a stable rear end for higher-HP builds

Why Choose the PMF Alpha 7" Lift Kit?

• Smoother ride + more travel: Dual-rate coils deliver a nicer street ride and over 3" additional travel vs. stock for better control on rough roads and job sites.
• Towing stability: Rear system retains your OEM leaf pack to maintain payload, then adds a gusseted traction bar kit to reduce wheel hop and axle wrap.
• Configurable stance: Multiple rear block heights so you can dial in level, slight rake, or a taller rear look.
• Built to last: Heavy-duty links, brackets, and track-bar components engineered for real-world use.

What’s Included

• Front Coils: 7" ICON progressive-rate springs
• Front Links: Choice of Long-Arm 4-Link or Adjustable 3-Link
• Sway Bar: 2.5" drop brackets + heavy-duty replacement links
• Brakes: Full replacement stainless brake lines (front & rear; set up for dual rear lines)
• Steering/Centering: HD drop track-bar bracket with pitman arm + HD adjustable track bar
• Rear Traction: Stage 2 gusseted traction bar kit
• Rear Height: Fabricated blocks (choose height) + U-bolts with top plates
• Shocks: Multiple valved-for-this-kit options (see below)

Choose Your Front Setup

• Long-Arm 4-Link: Maximum control over axle movement and wheel hop—ideal for hard 4-Hi launches, sled pulls, and high-torque use.
• Adjustable 3-Link: Tighter steering feel, excellent street manners, more articulation and shock absorption off-road; fully adjustable caster.

Rear Blocks & U-Bolts

• Blocks: Choose your block height to fine-tune stance (e.g., level, slight rake, or higher rear).
• U-Bolts: Kit includes larger 3/4" U-bolts (big strength upgrade vs. OEM 5/8"). Choose SRW or DRW.

Leaf Pack Type (How to Pick)

• Standard Leaf Pack: Top leaf runs eye-to-eye; typical stack is ~2–3" thick.
• Top-Mounted Overload: Thicker stack with a small spacer between the main pack and the top overload (not fixed at the ends). Choose this if your pack is thicker than ~3".

Shock Options (Valved for This Application)

• Bilstein 5100: Great all-around ride and looks
• Bilstein 5160 (front resi): Step-up control; better seal orientation for harsh/salty climates
• Fox 2.0 IFP: Non-resi or front-resi packages for increased performance
• PMF-Tuned King 2.5 Resi: Ultimate on/off-road performance

Important Notes

• Transfer Case Index Plate & Crossmember: On 2017+ trucks, front driveshaft angles are steep at this height. PMF recommends the index plate/crossmember (or a custom front shaft) to keep angles in spec and avoid driveline damage.
• Auto-Level/Scale Provisions: This kit does not include headlight auto-level/scale sensor provisions. Adjustable linkage components are available separately.

Who This Kit Is For

• Owners who want a true 7" lift with a comfortable daily ride
• Trucks that tow regularly and need rear stability
• Higher-horsepower builds that need to control wheel hop
