Take your 2020-2026 Chevy Silverado or GMC Sierra 2500HD/3500HD 4WD to the next level with this 5-inch lift kit by BDS Suspension, topped with FOX 2.5 HTO Performance Series shocks. For maximum ground clearance, BDS designed a no-torsion-bar-drop system that mounts the torsion bars directly to the top of the lower A-arm — eliminating the need to drop the torsion bar crossmember. The kit improves stance, performance and capability with clearance for up to 37" tires, while correcting suspension and steering geometry for great on-road manners.
Why Choose the BDS 5" Lift Kit?
- High-Clearance, No-Drop Design – Torsion bars mount to the top of the lower A-arm for maximum ground clearance with no torsion bar drop brackets.
- Heavy-Duty Crossmembers – 1/4-inch thick laser-cut crossmembers pair with a bolt-together front skid plate system for a rigid subframe and off-road protection.
- Corrected Steering Geometry – CNC-machined ductile iron steering knuckles maintain proper steering angles at the new ride height and keep ESC system compliance.
- Differential Protection – Multi-piece differential relocation brackets secure the front axle and improve CV angles.
- FOX 2.5 HTO Shocks – Position-sensitive Hydraulic Top Out technology reduces harsh top-outs and adds comfort, especially on heavier tires and taller-than-OEM lifts.
- Factory Protection Plus – Drivetrain warranty included.
Available Configurations
| Part # | Configuration | Fitment | Lift Height |
|---|---|---|---|
| BDS766FPP | Without Factory Overload | 2020-2026 Silverado/Sierra 2500HD/3500HD 4WD | 5" |
| BDS767FPP | With Factory Overload | 2020-2026 Silverado/Sierra 2500HD/3500HD 4WD | 5" |

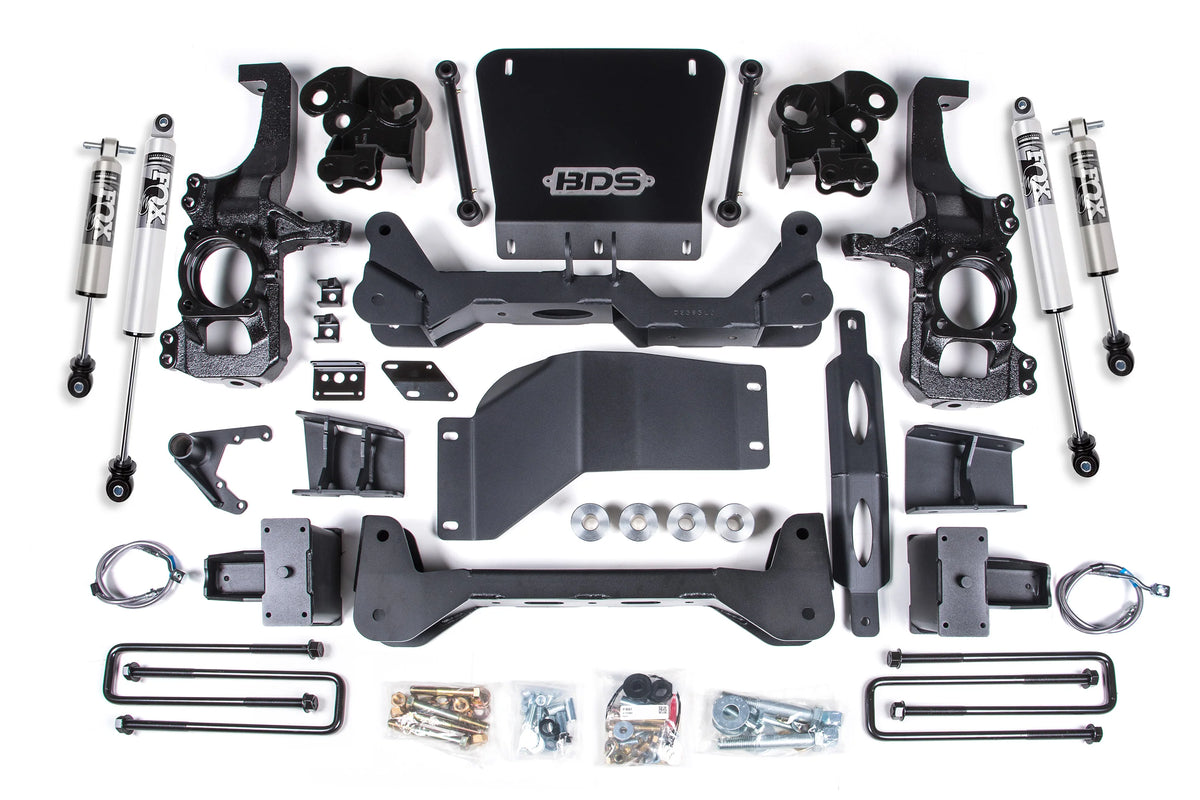

Kit Includes
- Torsion bar relocation brackets
- High-arched 1/4" thick steel crossmembers
- Multi-piece differential relocation brackets and heavy-duty skid plates
- CNC-machined ductile iron steering knuckles
- Sway bar drops
- Stainless steel brake lines
- Rear lift blocks and u-bolts
- Brake line and ABS line relocation brackets
- FOX 2.5 HTO Performance Series shocks (front and rear)
- Supplied hardware
FOX 2.5 Performance Series HTO Shocks
The FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving and larger pistons to improve on- and off-road performance. A type II anodized aluminum body dissipates heat and resists corrosion, and the 2.5" body uses an internal floating piston (IFP) to separate shock oil from the high-pressure nitrogen for optimized damping. Hydraulic Top Out (HTO) technology adds position-sensitive rebound control — forcing oil through a secondary shim stack to slow shaft speed, reduce harsh top-outs and increase comfort, particularly after installing heavier, aggressive tires.
Fits These Models
Engineered for the 2020-2026 Chevy Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD 4WD (all listed trims). 2020-2024 applications are diesel; 2025-2026 cover all fuel types.
Recommended Tires & Wheels
Trimming may be required.
- 35 x 12.5 with 17 x 9 and 4.625" backspace
- 35 x 12.5 with 20 x 9 and 5.5" backspace
- 37 x 12.5 with 20 x 9 and 5.5" backspace
Key Features at a Glance
- Lift - 5" front and rear
- Clearance - Up to 37" tires
- Design - No torsion bar drop, high-clearance crossmembers
- Steering - CNC ductile iron knuckles
- Shocks - FOX 2.5 HTO Performance Series
- Warranty - Factory Protection Plus drivetrain warranty
Notes
- Choose "Without Factory Overload" (BDS766FPP) or "With Factory Overload" (BDS767FPP) to match your truck's rear spring setup.
- Trimming may be required depending on tire size and wheel backspacing.
Questions? We're Here to Help.
Have questions about lift kits for your Silverado or Sierra HD? Contact FASS Motorsports and we'll get you dialed:
Phone: 636-429-7020
Email: info@fassmotorsports.com
This part fits the following vehicles:
| Years | Make & Model |
|---|---|
| 2026 | Chevrolet Silverado 2500 |
| 2026 | Chevrolet Silverado 3500 |
| 2026 | GMC Sierra 2500 |
| 2026 | GMC Sierra 3500 |
Fitment is listed by year, make and model. Some applications also depend on cab, bed, drivetrain or engine — if you are not sure, call 636-429-7020 or send us your vehicle details and we will confirm before you order.
