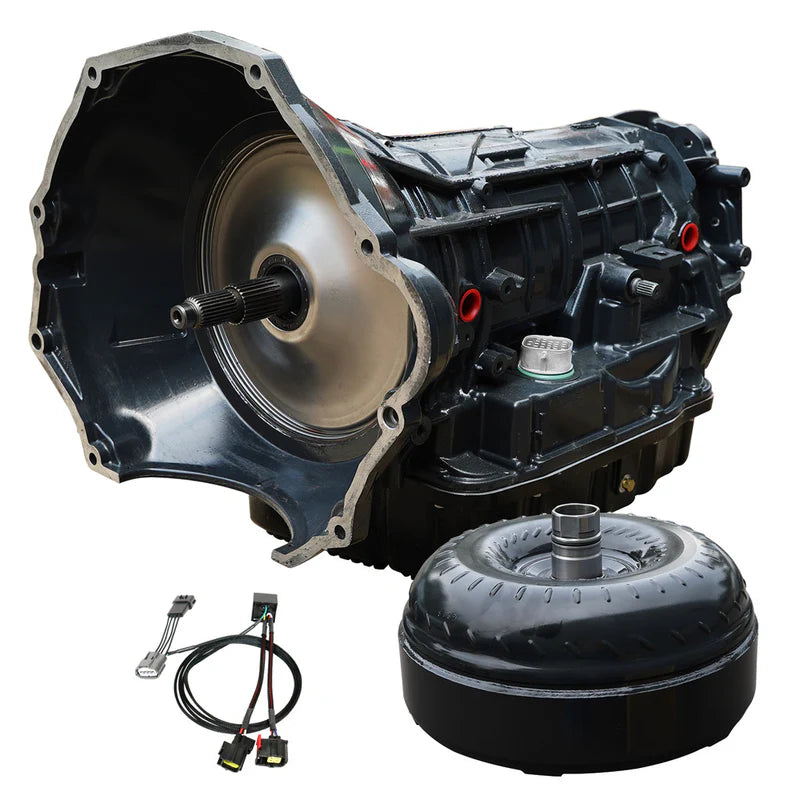

BD Diesel 07.5-18 Dodge 68RFE Transmission & Converter Package
Can I pick up my order or have it installed at your shop?
Can I pick up my order or have it installed at your shop?
Absolutely. We offer local pickup on most products and full professional installation at our shop in Washington, MO. Whether you just want to grab your parts or have our techs handle the install, we’ve got you covered. Give us a quick call at636-429-7020or message us to schedule a visit — we’ll make sure the parts are ready when you arrive.
How do I know if this part fits my vehicle?
How do I know if this part fits my vehicle?
Unsure if it’ll fit? No problem — that’s what we’re here for. Send us your vehicle’s year, make, and model, and we’ll verify fitment before you order. We can also point you toward compatible upgrades or supporting parts if needed.
What if I need to return a product or it’s defective?
What if I need to return a product or it’s defective?
Most unused items can be returned within 30 days in their original packaging. Some products are covered by a manufacturer’s warranty as well. If something arrives damaged or doesn’t meet your expectations, just let us know — we’ll help you get it replaced, refunded, or repaired. (Tracking updates are also emailed automatically once your order ships.)
What's the lead time on custom or fabricated parts?
What's the lead time on custom or fabricated parts?
Many of our parts are built to order — especially fabricated or performance components. These can take additional time to produce before shipping. Lead times vary by manufacturer and demand, but we’ll always keep you updated along the way. If you’re working on a tight schedule, reach out before ordering at636-429-7020and we’ll confirm current availability or estimated ship dates.
Description
Description

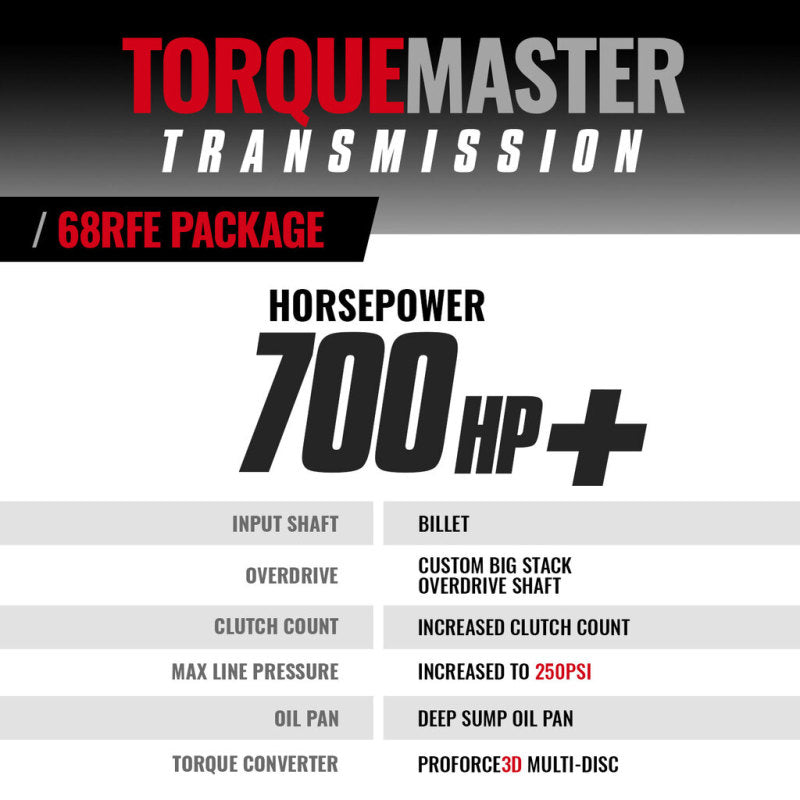

Transmission
Each transmission is fully built with durability and performance in mind, starting with a hard-anodized valve body and a new solenoid pack installed in every unit. A custom valve body separator plate with upgraded gaskets increases line pressure while eliminating internal cross-leaks for more consistent hydraulic control.
A heavy-duty cam and roller–style low reverse one-way clutch improves strength under load, while a new 4C billet spring retainer enhances clutch stability. The 2C piston is reinforced with a steel girdle, allowing for additional clutch capacity and a broader apply area. BD QT100 pressure plates reduce deflection and distortion inside the clutch drum, supporting higher clutch counts and long-term reliability.
Clutch capacity is significantly increased, with a 33% increase in overdrive clutches and a 33% increase in 2C clutches. A custom Big Stack overdrive shaft and BD reinforced accumulator plate further strengthen the rotating assembly.
To address a known high-wear area, the TCC limit valve is machined and sleeved within the pump, improving longevity and pressure stability. A BD deep-sump oil pan adds fluid capacity for improved cooling while also reducing case flex.
Line pressure is precisely managed by the BD ProTech68 pressure control module, which increases pressure up to 250 PSI by using MAP sensor input to adjust pressure based on engine load.
This is a true performance transmission, upgraded with a billet input shaft to absorb shock from rapid throttle inputs and high-horsepower applications.
Torque Converter
The torque converter features an enhanced stall for improved performance and drivability. Machined pistons and heavy-duty springs absorb engagement shock, while a stamp-forged, one-piece cover eliminates warpage caused by clutch heat. The taller cover design allows for more rebuild cycles over the life of the converter.
A self-centering tooth design increases surface contact, reducing wear and chatter. The precision riveting process ensures proper alignment and eliminates vibration or embrittlement associated with welding. Furnace-brazed fins reduce internal leakage, improving fluid coupling efficiency and overall performance.
Warranty
-
Parts: 36 Months / 150,000 Miles
-
Labor: 12 Months / 24,000 Miles
Core Charge Option 1: Customer to send in core to receive product
Core Charge Option 2: Additional payment is sent in, new products are delivered, additional payment is returned when core is received.
