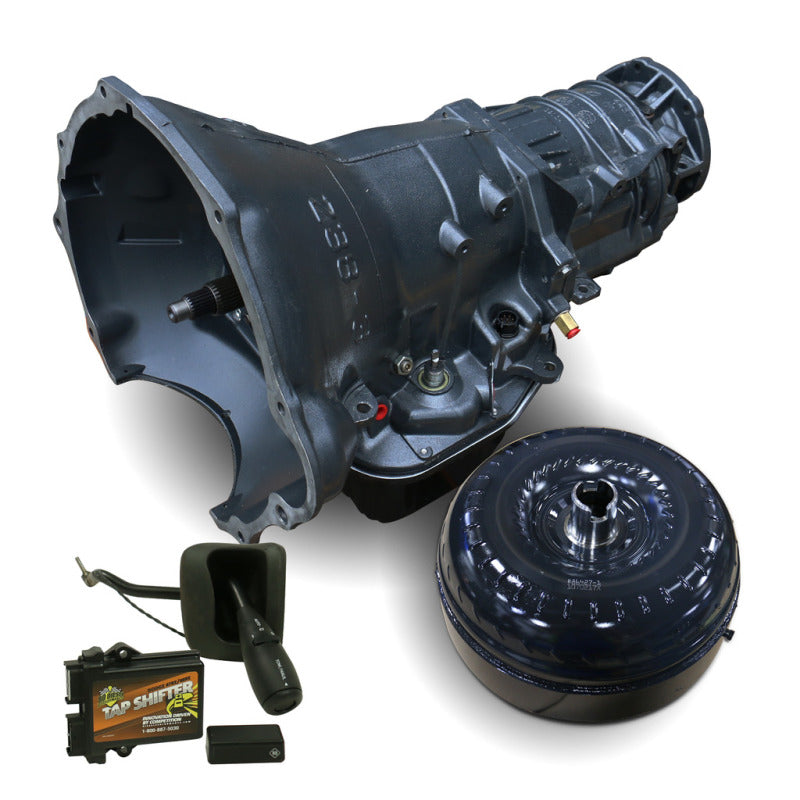

BD Diesel Transmission Kit - 2005-2007 Dodge 48RE 4WD w/ TVV Stepper Motor & c/w Filter & TapShifter
Can I pick up my order or have it installed at your shop?
Can I pick up my order or have it installed at your shop?
Absolutely. We offer local pickup on most products and full professional installation at our shop in Washington, MO. Whether you just want to grab your parts or have our techs handle the install, we’ve got you covered. Give us a quick call at636-429-7020or message us to schedule a visit — we’ll make sure the parts are ready when you arrive.
How do I know if this part fits my vehicle?
How do I know if this part fits my vehicle?
Unsure if it’ll fit? No problem — that’s what we’re here for. Send us your vehicle’s year, make, and model, and we’ll verify fitment before you order. We can also point you toward compatible upgrades or supporting parts if needed.
What if I need to return a product or it’s defective?
What if I need to return a product or it’s defective?
Most unused items can be returned within 30 days in their original packaging. Some products are covered by a manufacturer’s warranty as well. If something arrives damaged or doesn’t meet your expectations, just let us know — we’ll help you get it replaced, refunded, or repaired. (Tracking updates are also emailed automatically once your order ships.)
What's the lead time on custom or fabricated parts?
What's the lead time on custom or fabricated parts?
Many of our parts are built to order — especially fabricated or performance components. These can take additional time to produce before shipping. Lead times vary by manufacturer and demand, but we’ll always keep you updated along the way. If you’re working on a tight schedule, reach out before ordering at636-429-7020and we’ll confirm current availability or estimated ship dates.
Description
Description
BD Diesel
Transmission
This upgraded transmission is built to handle increased power while maintaining excellent street and towing drivability. It features an upgraded valve body, upgraded governor solenoid, and upgraded governor pressure transducer (47RE/48RE), delivering twice the burst pressure of stock and increasing line pressure to 190–200 PSI. The modified hydraulic system eliminates shuttle shifting issues, while a reworked manual valve ensures proper lubrication in all gear positions.
Factory thrust bushings are replaced with roller-style Torrington bearings to reduce friction and improve longevity. Clutch capacity is significantly increased with the following clutch counts: Direct – 6, Forward – 5, Overdrive – 6, and Overdrive Direct – 10. A high-temperature, high-energy Raybestos band, along with a billet band lever and billet band strut, provides improved holding power and durability.
To handle high-horsepower applications, this transmission is equipped with a billet “Big” fine-spline input shaft, designed to absorb shock from rapid throttle inputs. The intermediate shaft is drilled to improve lubrication under load.
Cooling and fluid capacity are enhanced with a BD rigid aluminum heavy-duty transmission pan, which adds 2 quarts of additional fluid capacity. Integrated heat-dissipating fins help control operating temperatures, and a magnetic drain plug captures metallic debris. A BD auxiliary full-flow filter kit adds an extra layer of protection, while a cooler line case saver is installed in every transmission. Each unit is dyno tested to ensure proper operation and reliability.
Torque Converter
The included torque converter features an enhanced stall speed optimized for street and towing applications. Machined pistons and heavy-duty springs absorb engagement shock, while a stamp-forged, one-piece cover eliminates warpage caused by clutch heat. The taller cover design allows for more rebuild cycles over the life of the converter.
A trapezoid tooth design with tighter tolerances improves torque transfer, while self-centering teeth increase contact area to reduce wear and chatter. Thrust bearings are used in place of plastic thrust washers for added durability. A precision riveting process ensures alignment and eliminates vibration or embrittlement associated with welding. The cast stator design maximizes torque multiplication, and new sprag components ensure long-term reliability. Overall weight is reduced by 12 pounds compared to competing designs.
Warranty
This transmission is backed by a 36-month or 150,000-mile parts warranty, with 12 months or 24,000 miles of labor coverage.
Core Charge Option 1: Customer to send in core to receive product
Core Charge Option 2: Additional payment is sent in, new products are delivered, additional payment is returned when core is received.
