3" Front Coilover Conversion Kit for 2020+ GMC 2500/3500 HD

BDS1834FPE is a game changer in the performance of your 2020+ Chevy Silverado and GMC Sierra 2500 / 3500 HD truck with a 3-inch suspension lift kit with FOX 2.5 Performance Elite Coil-Over conversion. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. These kits feature proprietary FOX 2.5 Performance Elite coil-over shocks designed specifically to bolt-on performance for increased travel and the ability to soak up the roughest terrain along with smooth on-road comfort. In addition to replacing the factory torsion bars, the upper and lower control arms are upgraded to improve strength, travel, and accommodate the new coil-overs. The new upper control arms are fabricated from large 1.5" OD x .120-wall tubing, fully TIG welded for the highest quality, strength and durability. To compliment the uppers, the new lower control arms are built from high strength steel, fully boxed with internally gusseted.

This kit takes principles on BDS's engineering standard for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes FOX 2.5 coil-over shocks, heavy duty tubular upper control arms, fully boxed and gusseted lower control arms, and multipiece differential relocation brackets to maintain correct CV angles. These combined with the provided sway bar links, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers replacement lift blocks to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear is a u-bolt flip kit for max clearance and precision tuned FOX 2.0 Performance Series or Performance Elite Series 2.5” shocks for ultimate off road performance.

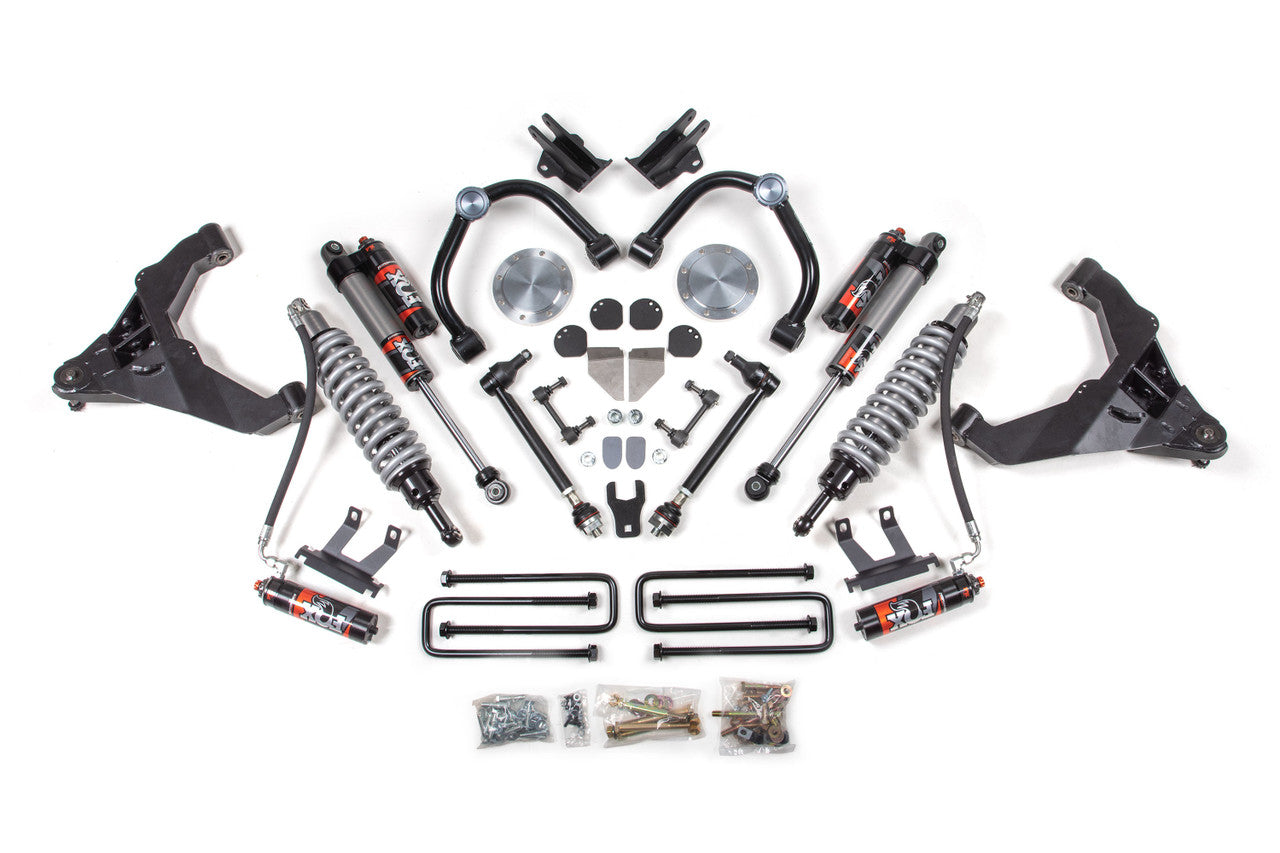

Included

• Front 3" Coilover Conversion Box Kit - BDS021302
• Front FOX 2.5 Performance Elite Coilovers - FOX88406337
• Coilover Conversion Upper Control Arm Kit - BDS121301
• Drivers Side Lower Control Arm Kit - BDS021303
• Passenger Side Lower Control Arm Kit - BDS021304
• FOX 2.5 Performance Elite Rear Shocks - FOX88326085

FOX 2.5 Coil-Overs

FOX Performance Elite 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

DSC Adjustment

FOX Performance Elite 2.5 coil-overs come standard with DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.

HD Control Arms

Built for strength, performance and increased travel, these control arms are ready to bolt-in. The upper arms use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. The new lower control arms are built from high strength steel, fully boxed with internally gusseted. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Features

• Converts torsion bar front suspension to a Coil-over for improved ride comfort
• Includes BDS upper and lower control arms
• BDS performance UCAs increase strength and allow for more suspension travel
• Factory Protection Plus drivetrain warranty included
• Easy, 100% Bolt on installation
• FOX Performance Elite 2.5 Coilovers
• Dual Speed Compression (DSC) Adjuster
• Increases both low and highspeed compression levels up to 25%
• Easy twist knobs for Low-Speed and High-Speed Compression adjustment
• Provides added control and comfort for on-road use
• More aggressive damping for use offroad

Details

• Front Lift Height: 3 IN
• Front Lift Method: Coil Over
• Installation Difficulty: difficult
• Installation Time: 4 Hrs
• Installation Tools: cut off wheel or equal-saw reciprocating-torsion Bar unloading Tool-welder
• Shocks Included: Yes

Notes

• Minor metal trimming may be required with 35x12.50R20 on 20x9 w/5-5.5" BS
• Requires minor welding
• Coilovers are preset for DIESEL engine models. The use of the coilovers on GAS engine models is not recommended due to providing too much lift. Available preload adjustment is typically not enough to achieve desired ride height.
• Factory 17" 18" and 20" wheels cannot be reinstalled. See instructions for detailed wheel/tire fitment notes.
• Dually Models will require aftermarket 20" wheels with a max tire size of 285/60/20.
• Coilover are preset to a 2" minimum lift height

3" Front Coilover Conversion Kit for 2020+ GMC 2500/3500 HD | SKU BDS1834FPE
