6-Inch Lift Kit for 2014 Ford F-150 2WD
Description
Description

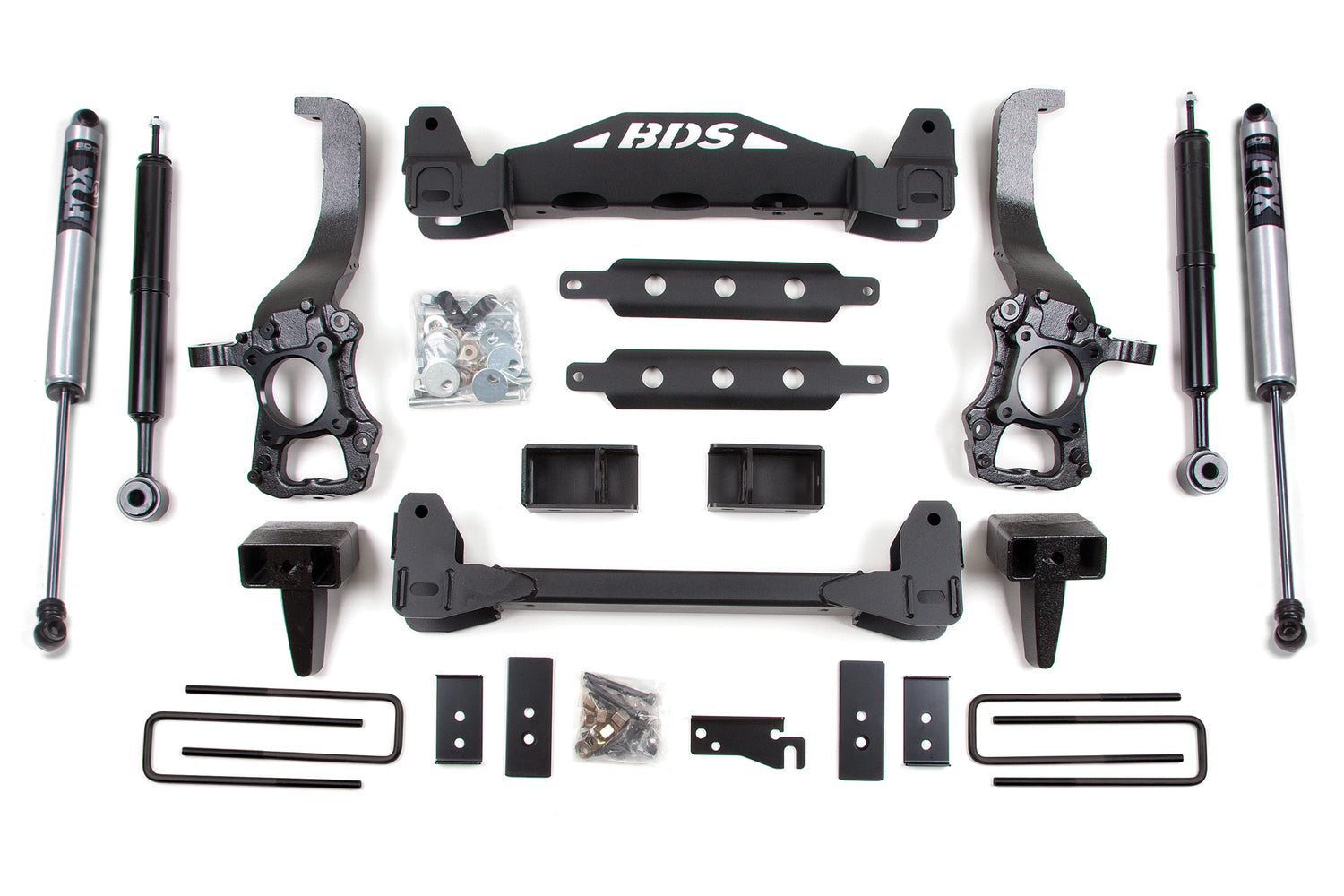

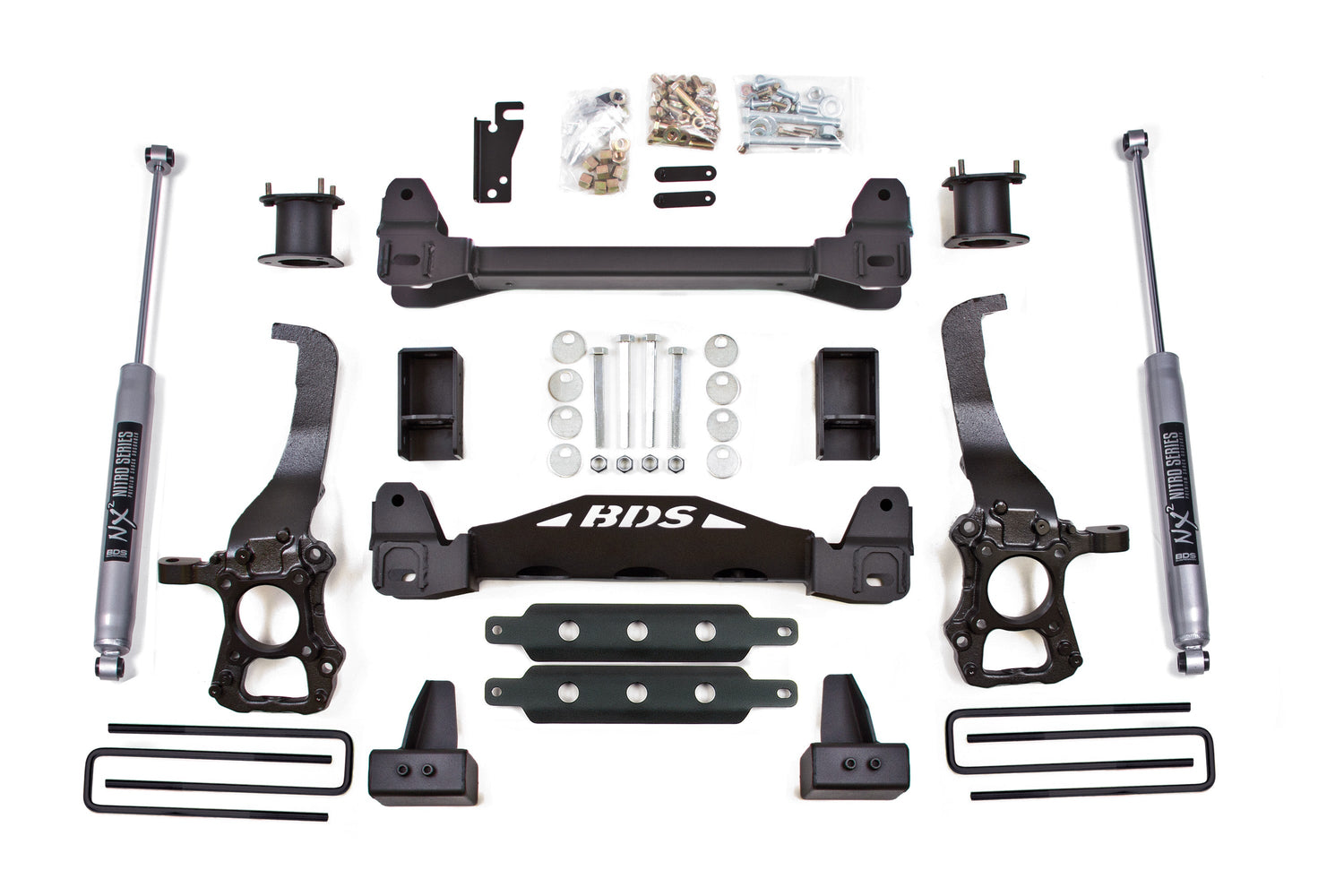

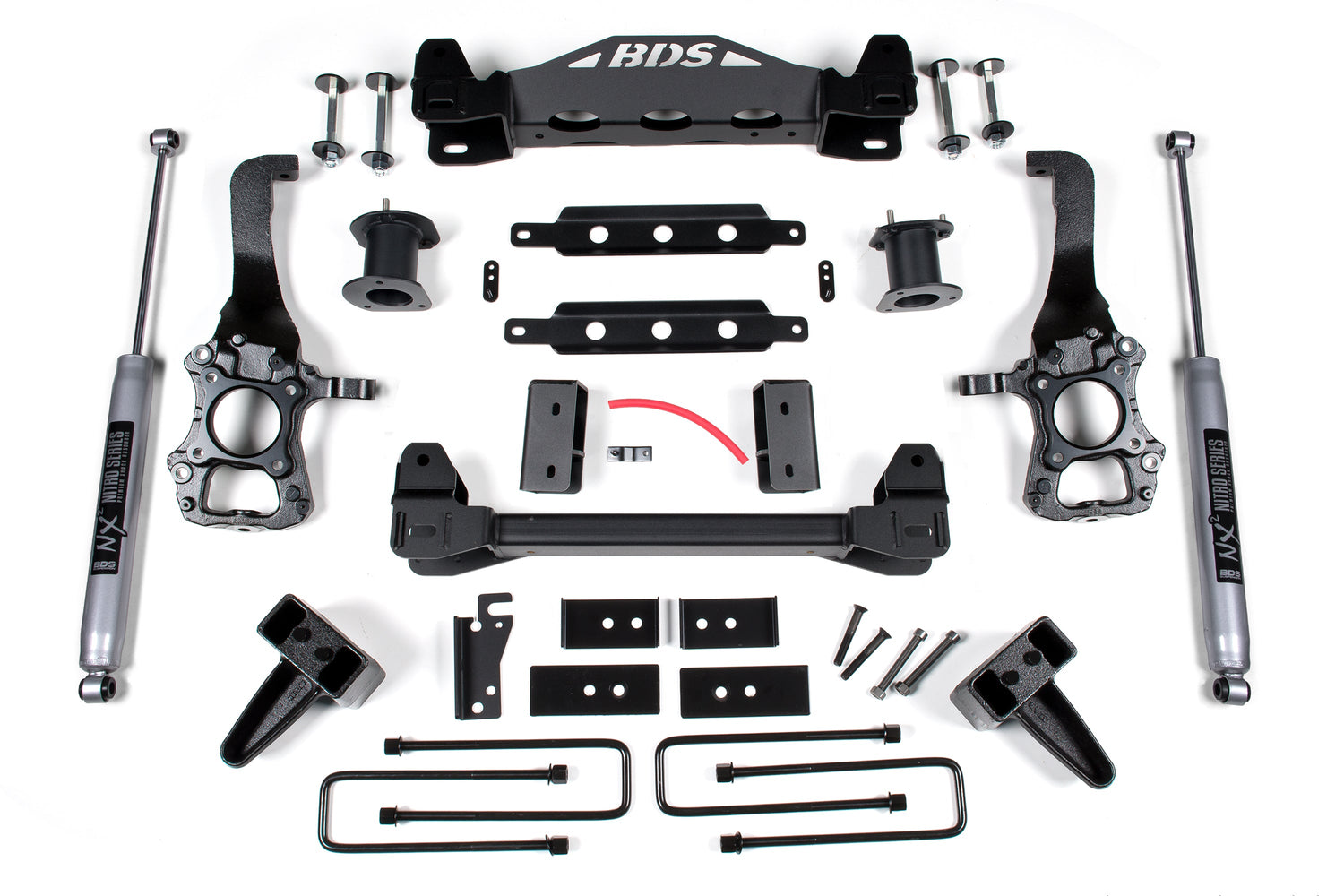

With clearance for up to 37" tires, this kit boasts BDS's renowned high-clearance design for enhanced ground clearance and strength, while correcting suspension and steering geometry for top-notch on-road handling. The front features high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, and a skidplate for offroad protection, while the new taller ride height is stabilized by massive CNC-machined ductile iron steering knuckles.
Plus, with included sway bar relocation brackets, brake line brackets, and alignment cam bolts, this kit is designed for rugged use and abuse. In the back, BDS uses high strength cast steel lift blocks and longer u-bolts, providing a lifted and level stance alongside NX2 Nitro or optional FOX
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Rear Lift Option
5 Inch Block Kit
- Level to tail high appearance
4 Inch Block Kit
- Tail low to level stance
Rear Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Features & Benefits
- High clearance crossmembers improve strength and offroad capability
- Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Recommended Tires & Wheels
(Trimming may be required)
- 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5.5 in. Backspace
6-Inch Lift Kit for 2014 Ford F-150 2WD | SKU BDS1916FS
