Description
Description

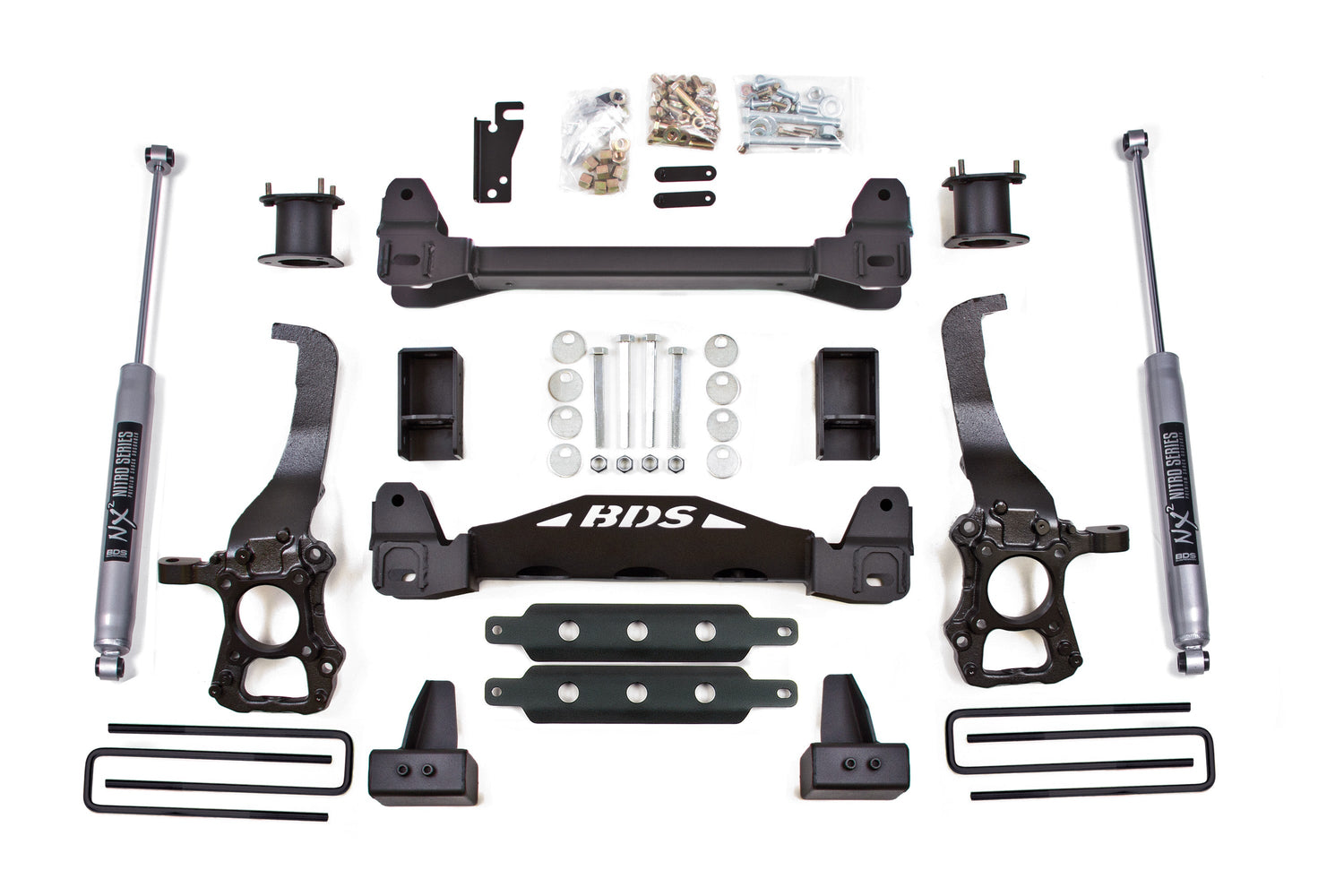

Utilizing BDS's high-clearance design, this kit offers increased ground clearance, strength, and off-road protection, while correcting suspension and steering geometry for exceptional on-road handling. In the front, the kit boasts high-arched 1/4-inch thick steel crossmembers and a skid-plate designed to protect against off-road hazards.
At the new, taller ride height, steering geometry is corrected with massive CNC-machined ductile iron steering knuckles paired with sway bar relocation brackets, brake line brackets, alignment cam bolts, and supplied hardware for a comprehensive front suspension lift perfect for both everyday use and intense off-road adventures. In the rear, BDS incorporates
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Rear Lift Option
4 Inch Block Kit
- Level to tail high appearance
3 Inch Block Kit
- Tail low to level stance
Rear Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Features & Benefits
- High clearance crossmembers improve strength and offroad capability
- Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Recommended Tires & Wheels
(Trimming may be required)
- 35 x 12.5 with 18 x 9 and 5.5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5.5 in. Backspace
4-Inch Lift Kit for 2015-2020 Ford F-150 2WD | SKU BDS1909FS
