4-Inch Lift Kit w/ Radius Arm for 2019-2024 Dodge Ram 3500 4WD Diesel
Description
Description

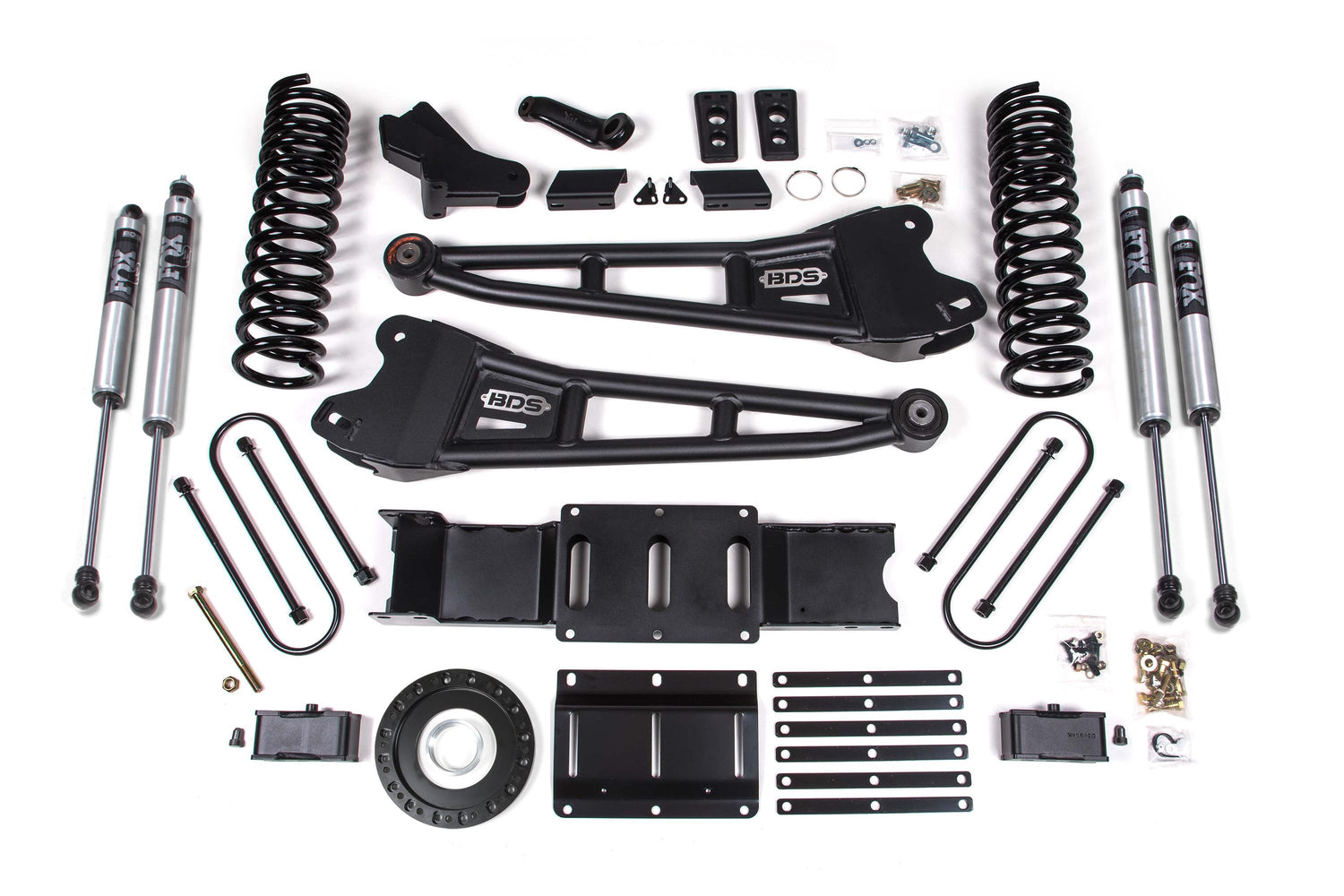

The front lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, a forged drop pitman arm and track bar bracket for improved steering, sway bar relocation, brake line brackets, and precision-tuned NX2 or FOX 2.0 nitrogen charged shocks.
To ensure proper functionality, an indexing ring and new transmission crossmember are also included for the indexed transfer case. For the rear, a high-strength fabricated lift block, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks are provided. Take your truck to the next level with this impressive lift kit.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy-duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Rear Lift Option
Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.
Indexing Ring Option
6 Bolt Indexing Ring
- Kits come standard with 6-Bolt indexing ring kit.
8 Bolt Indexing Ring
- Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
- The 8-bolt kit also includes an internal shaft seal extension and new shaft seal.
Shock Option

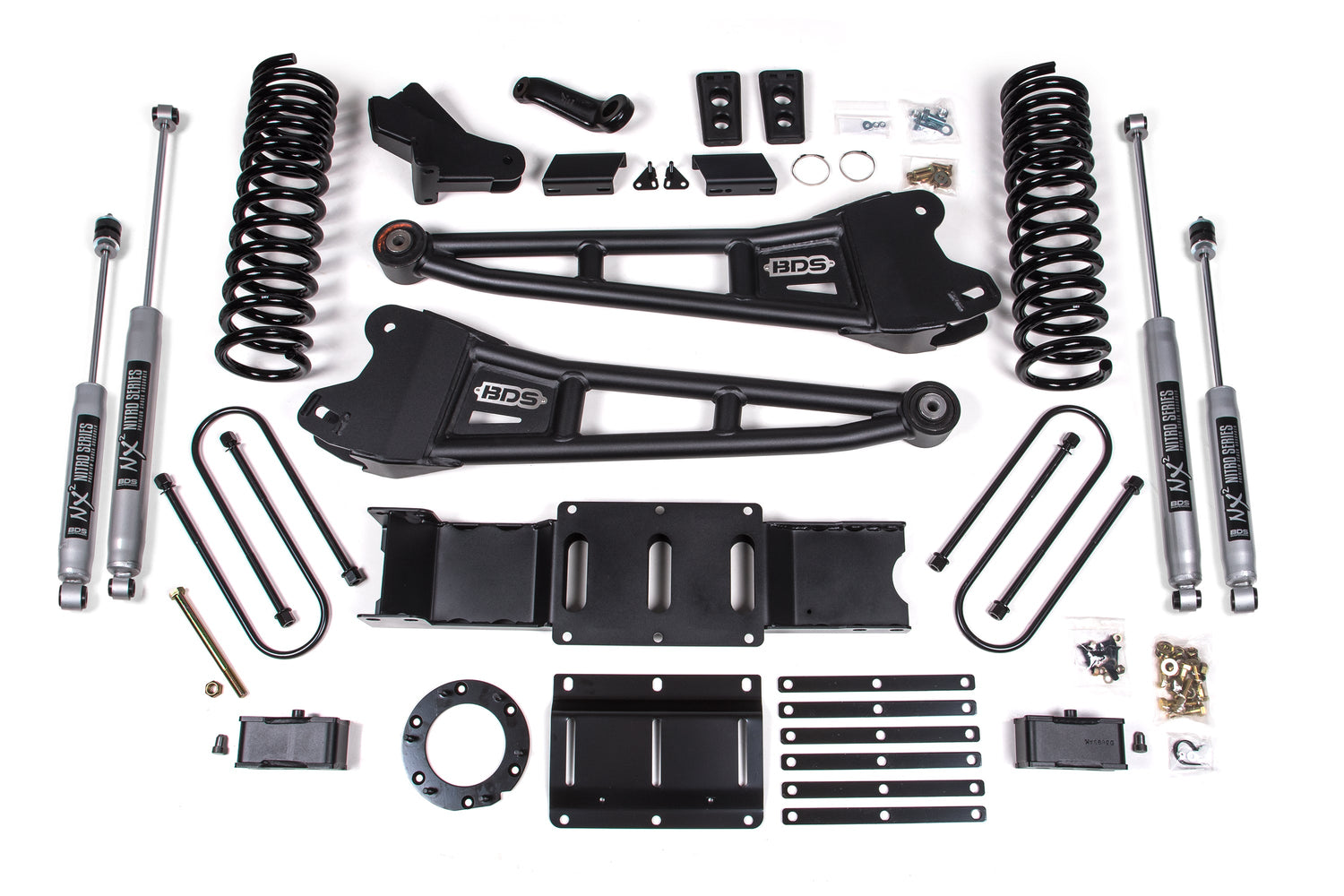

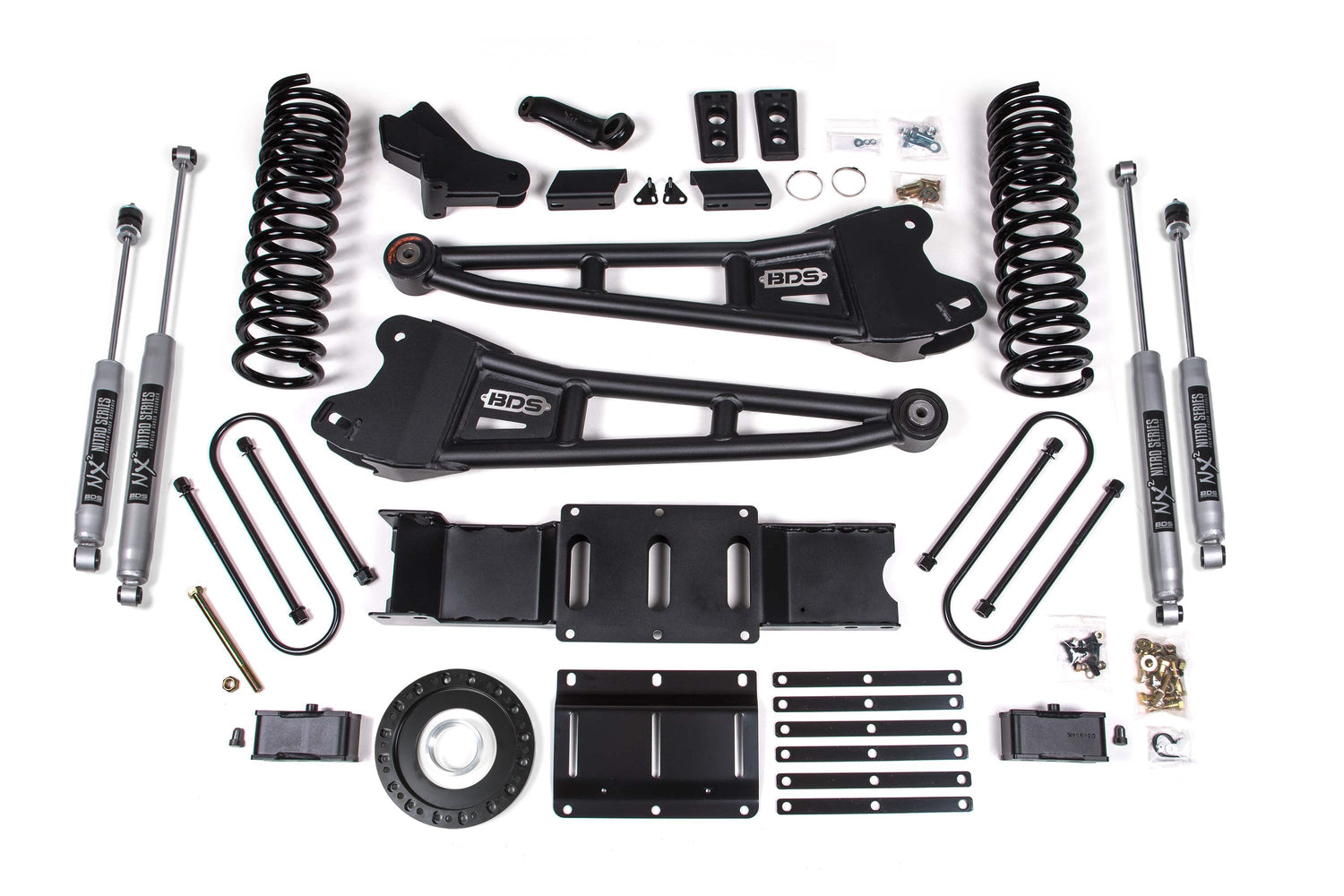

NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish

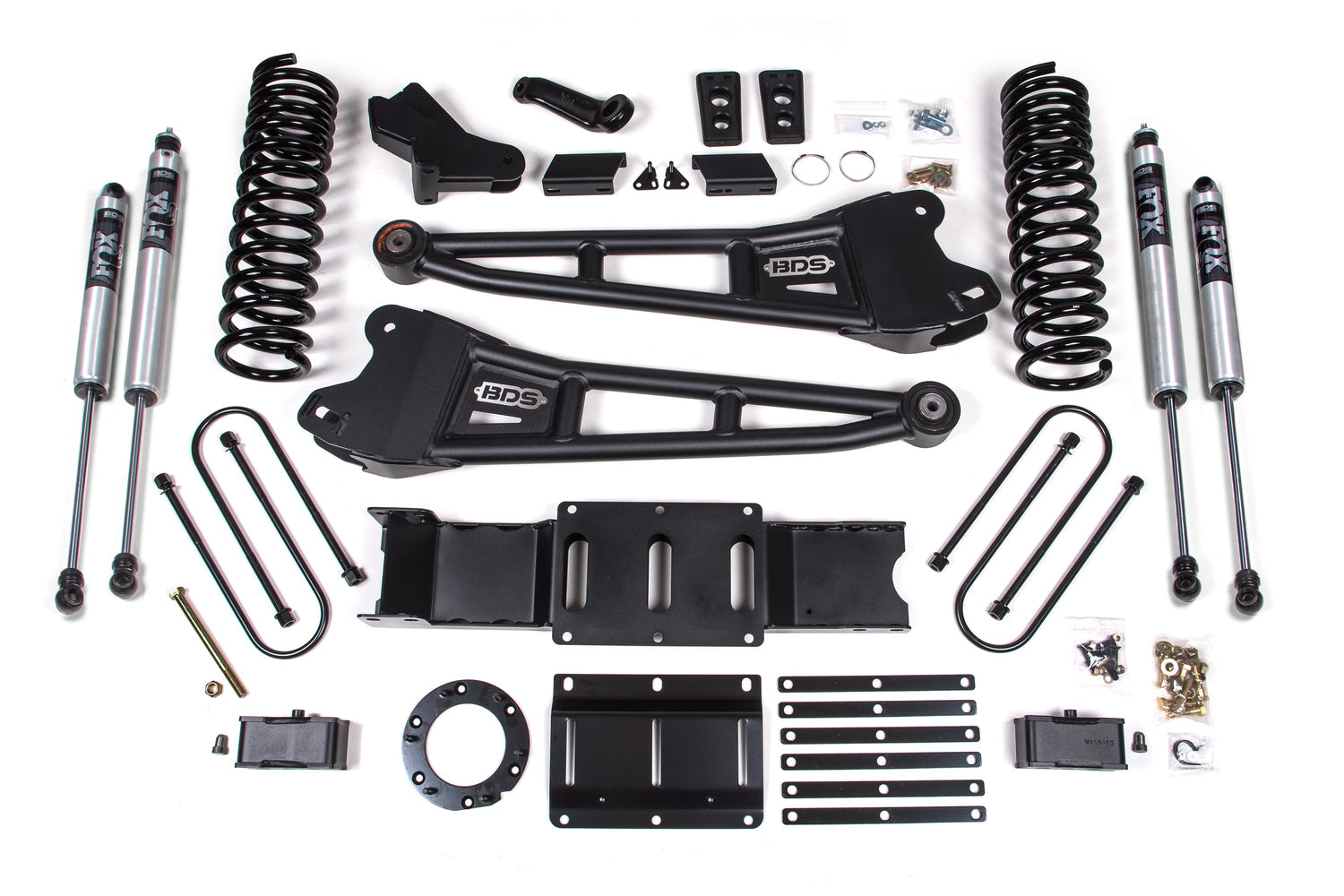

FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish

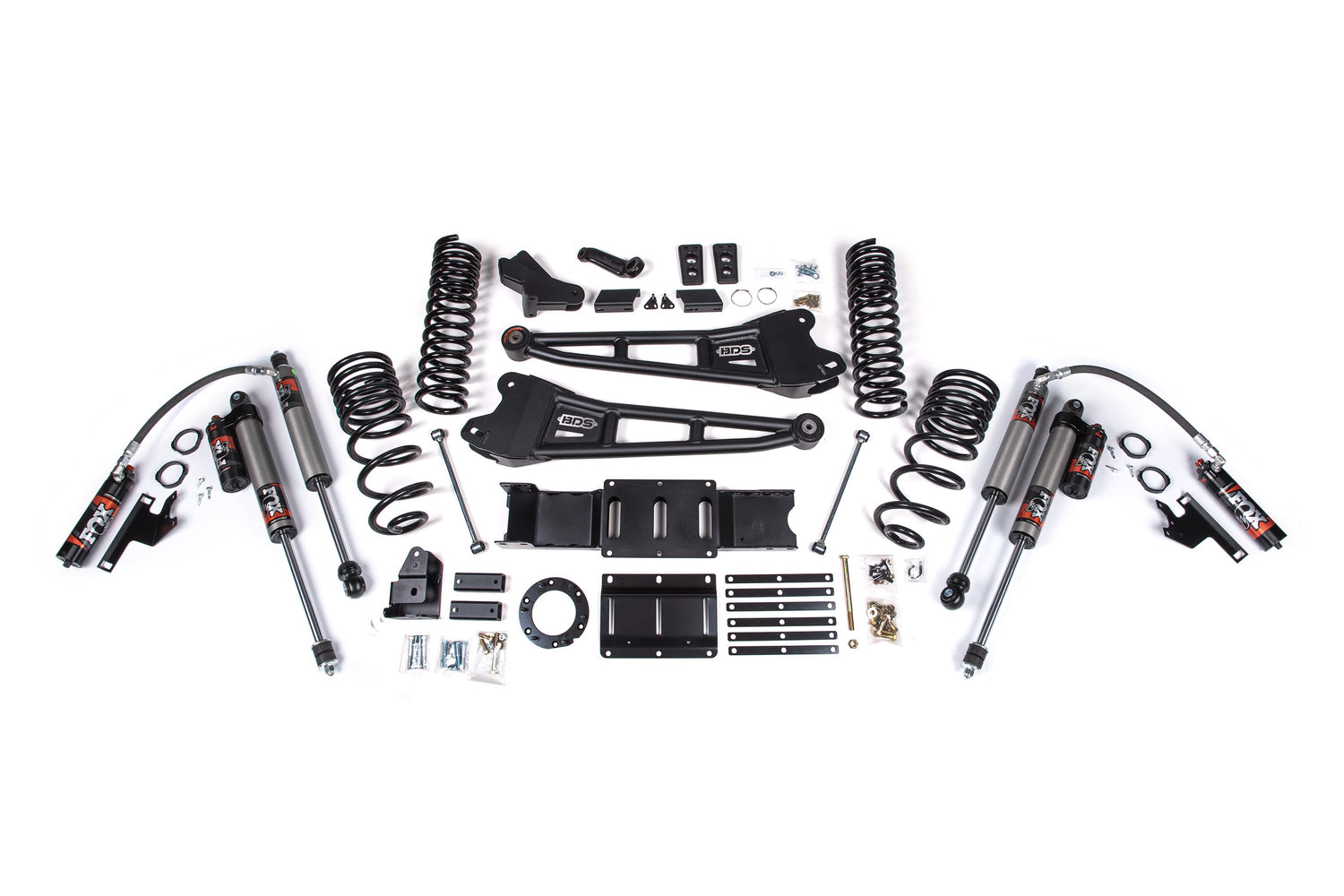

FOX 2.5 Performance Elite Series
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir design separates shock oil from the high-pressure nitrogen
- DSC - Dual Speed Compression Adjuster comes standard
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
Features & Benefits
- Heavy duty tubular radius arms improve strength, handling and caster control
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front track bar relocation bracket to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
- BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
- 3-inch Rear block w/o overload
Recommended Tires & Wheels
(Trimming may be required)
- 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 37 x 12.5 with 17 x 9 and 5.625 in. Backspace
- 37 x 12.5 with 20 x 9 and 5.625 in. Backspace
