4-Inch Lift Kit w/ Radius Arm for 2019-2024 Dodge Ram 3500 w/ Rear Air Ride 4WD GAS

This 4-inch radius arm lift kit from BDS Suspension takes your factory rear airbag-equipped RAM 3500 gas-powered truck to a whole new level (literally). Engineered for the ultimate combination of looks and performance, this kit allows your truck to clear up to 35" tires.

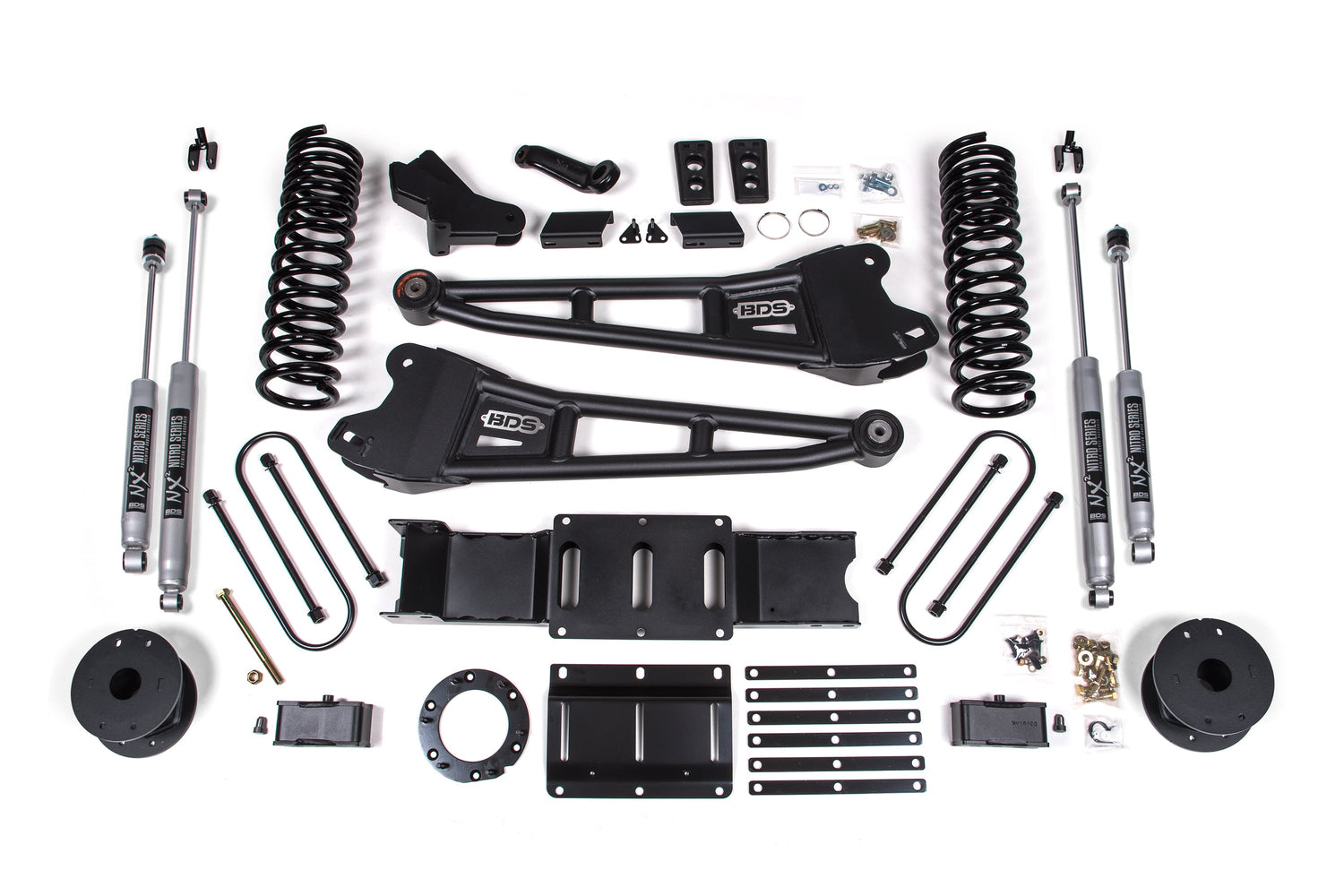

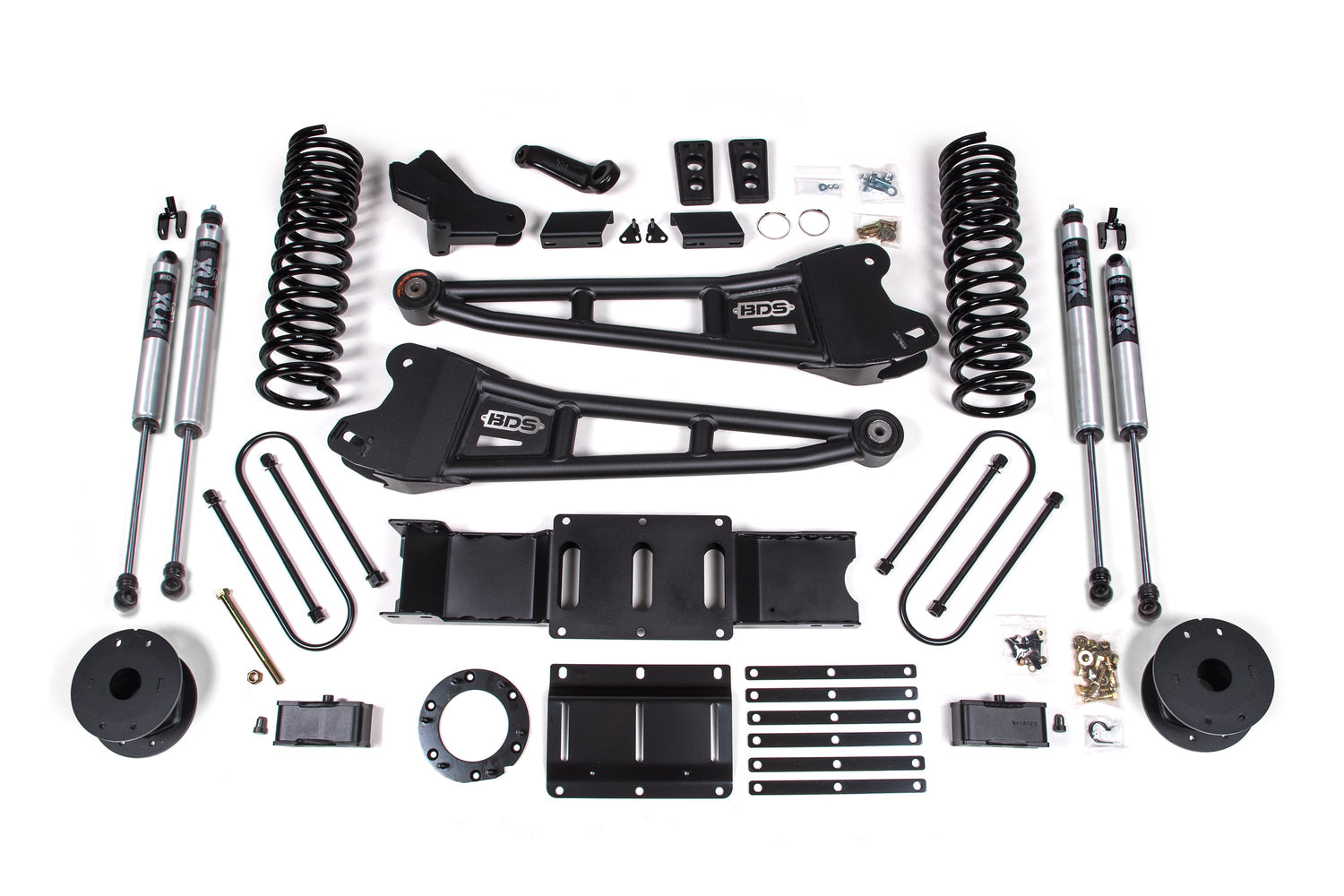

In the front, this lift kit includes gas-specific Pro-Ride coil springs heavy-duty replacement radius arms forged drop pitman arm and track bar bracket for steering correction sway bar relocation brake line brackets and precision-tuned FOX 2.0 nitrogen charged shocks.

At 4" of lift height, the transfer case needs to be indexed to allow the use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear, this kit utilizes a high-strength fabricated lift block, heavy-duty air bag spacers, longer u-bolts, and a matching set of FOX 2.0 Performance shocks.

In place of the factory-stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth quiet service-free operation.

A pair of full-length gas-specific progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth predictable ride across various terrains.

To optimize steering geometry once lifted a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy-duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

FEATURES

• Heavy-duty tubular radius arms improve strength handling and caster control

• Front high-strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS FOX performance series IFP gas shocks to improve ride and offroad performance
• FOX 2.0 Performance Series:
  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

NOTES

• For OEM Rear Air Assist only
• This lift kit will not fit Mega Cab Dually

SKU: BDS1722FS 4-Inch Lift Kit w/ Radius Arm for 2019-2024 Dodge Ram 3500 w/ Rear Air Ride 4WD GAS
