BDS  |  SKU: BDS1564FS

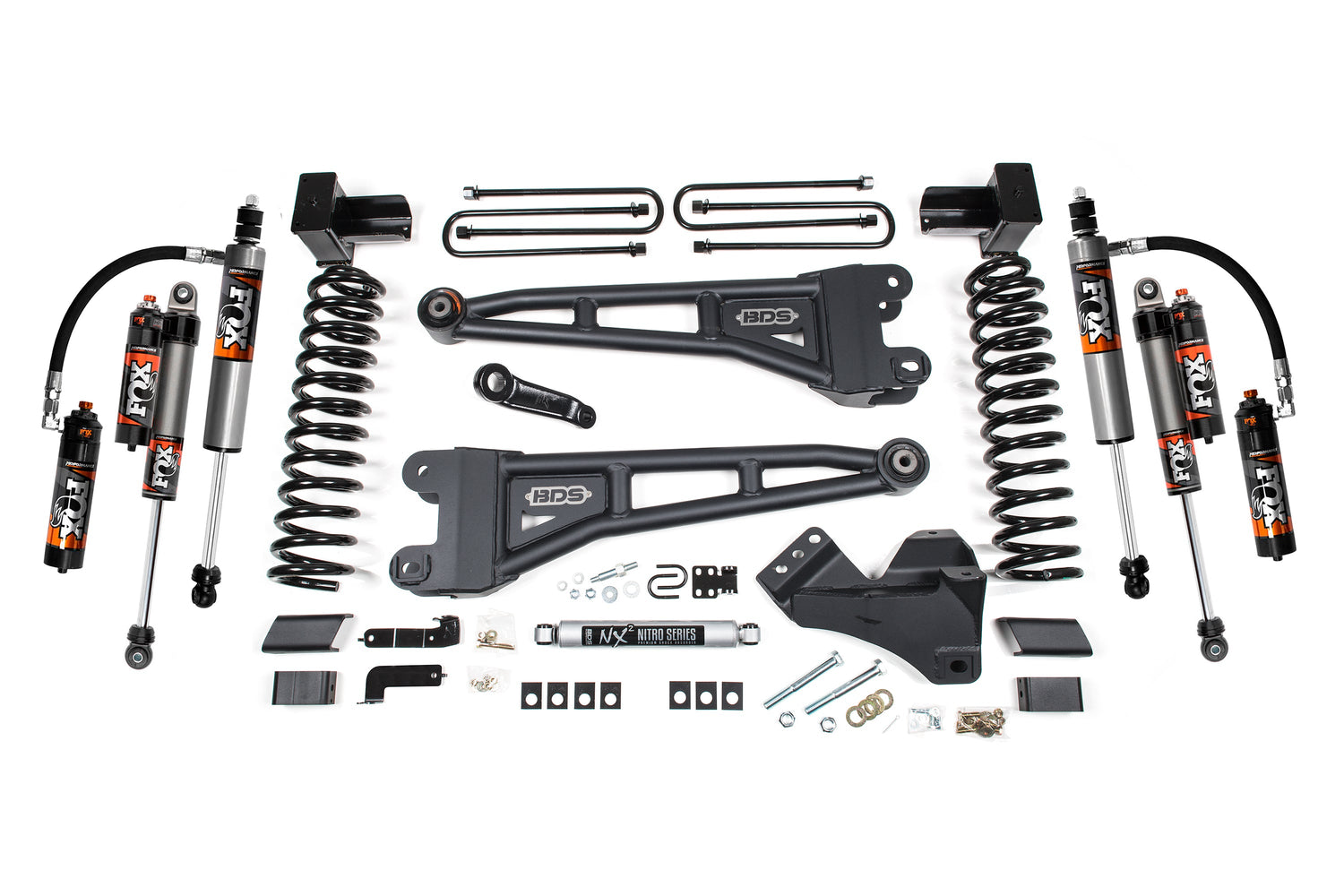

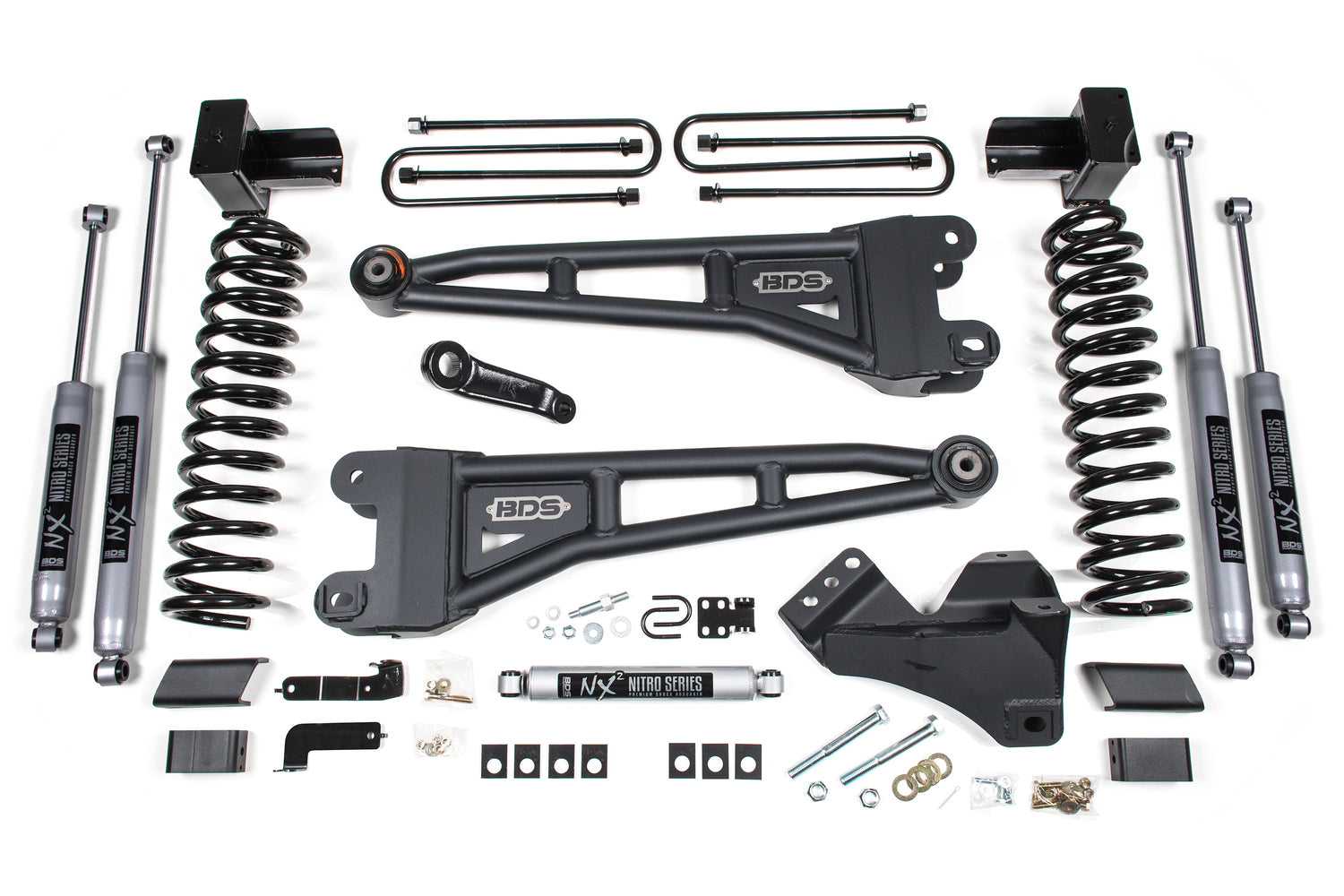

4-Inch Lift Kit w/ Radius Arm for 2020-2022 Ford F-350 Super Duty DRW 4WD Gas

$ 2,193.55
Shipping calculated at checkout.

 More payment options

Description



Upgrade the ride on your Ford F350 Super Duty dually truck with this 4-inch lift kit from BDS Suspension. Built for improved stance, performance, and capability, this comprehensive kit comes with everything needed to properly lift your truck and fit up to 37" tires.

At the front, you'll find Pro-Ride gas-specific coil springs, durable radius arms, a drop pitman arm and track bar bracket for steering adjustments, sway bar relocation, brake line brackets, and precision-tuned nitrogen charged shocks.

The rear makes use of a sturdy fabricated lift block, longer u-bolts, brake line brackets, and a set of matching NX2 Nitro or FOX Performance shocks.



HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy-duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits
  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 17 x 9 and 5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5 in. Backspace
Shock Option
NX2 Nitro Series
  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish
FOX 2.0 Performance Series
  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish
FOX 2.5 Performance Elite Series
  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty

4-Inch Lift Kit w/ Radius Arm for 2020-2022 Ford F-350 Super Duty DRW 4WD Gas | SKU BDS734FS/BDS734H/BDS733FS/BDS733H
