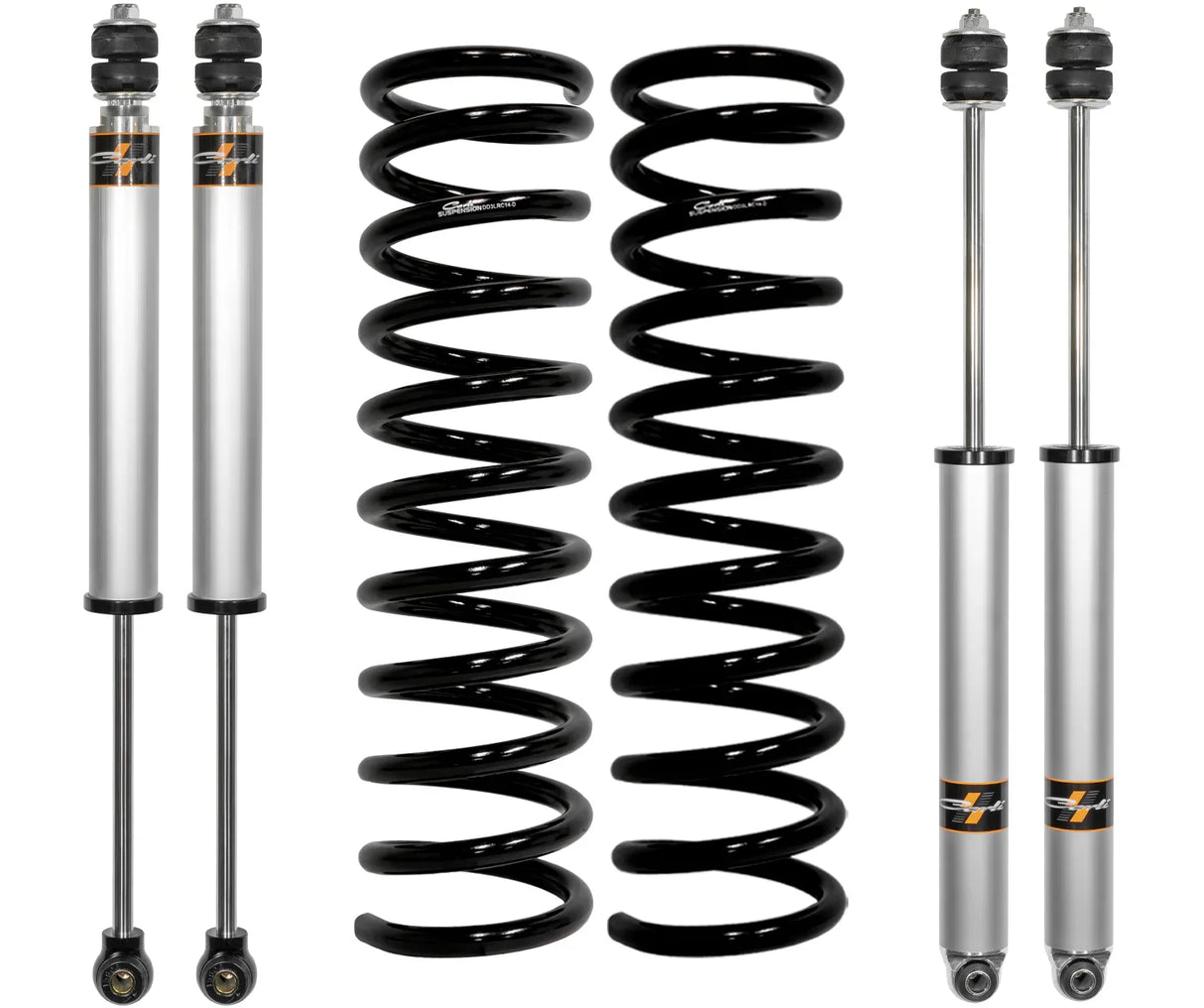

14-23 RAM 2500 2.5" LEVELING SYSTEM, DIESEL

14-23 RAM 2500 2.5" LEVELING SYSTEM, DIESEL

Brand: Carli Suspension

SKU: CS-DLVL-CS-1419-D

3" front lift that delivers 50% more suspension travel than the stock Ram. Blueprinted coils paired with extended travel shocks increase control and comfort without breaking the bank.

Shock Diameter - 2.0"
Lift Height - 2.5"
Tire Size - UP TO 35"
Front Travel - 9"

Base Kit Includes:

Please Note: This system does not work with rear auto-level air suspension.

Description:

This system is designed for the customer that keeps their truck on the road with an eye for quality and appreciation for bang-for-their-buck. At the heart of this system is a 2.5” lift, Linear Rate Coil Spring paired to matched travel Carli Spec 2.0” IFP Shocks that have been custom-tuned, in-house, for superior ride quality and handling.

The rear shocks are also included with this system and have been custom-tuned to maximize the ride quality for the factory rear coil springs. As the rear springs remain unmodified, load capacity is maintained while predictability is improved. For those that aren’t looking for massive increase in travel or big shocks but still desire a level stance and improved ride quality and handling characteristics, this is the perfect kit. The 2.5” lift height doesn’t require the front or rear geometry correction of our 3” Systems.

The front axle will be slightly pulled to the Driver’s side following the installation of the lift; this can be corrected with the addition of Carli's Adjustable Track Bar. Further, ride quality can be substantially increased with the addition of Carli's Torsion Sway Bar. We recommend a 35” tire on a wheel that’s no more than 9” wide with 5.5”-6” Backspace.

An 18” diameter wheel will be best to ensure optimal ride quality (more rubber = better small bump compliance) and an unloaded tire pressure of 45F/40R is recommended. The addition of a Carli Low-Mount Steering Stabilizer is recommended for any tire over factory size. For more details, see Carli Suspension's article on wheel and tire selection and tire pressures:

Please Note: This system will NOT be upgradeable to any other Carli Suspension Systems.

It’s designed to be a solution for customers wanting a quality system with minimal lift and part inclusion. We recommend slight eccentric bolt compensation to correct caster after the lift as there are no Radius Arm Drops.

For this reason, customers may experience a slight bow in the coil spring. We did not experience a coil bow in any of our test trucks but it’s possible at the 2.5” lift height without a Radius Arm Drop Bracket.

System Notes:

• Wheels: Carli Recommends a 17"-18" Wheel, no more than 9" wide with 5.75" of Backspacing on Leveling Systems
• Tires: 35", E-Rated Tire Fitment is Recommended. Recommended unloaded Tire Pressure 45F/40R
• Recommended Configuration: Carli Leveling Systems are Designed and Tested on Vehicles with 17"-18" Wheels with 35", E-Rated Tires. Stock wheels and tires or running a larger wheel diameter will result in a stiffer ride.
• Torsion Sway Bar: Selection of the Torsion Sway Bar Replacement will not Require size selection as the entire sway bar assembly is replaced.
