Carli Suspension  |  SKU: CS-FLVL-STR-SIG-11

11-16 FORD F250/F350 2.5" STARTER LEVELING SYSTEM, BASE, DIESEL

$ 1,850.00
Shipping calculated at checkout.


Please Note: We will ship the item(s) in your cart as quickly as possible! In the event something is pending delivery from the manufacturer we will contact you. If you're needing the item(s) immediately, please contact us at (636) 429-7020 for a delivery ETA. Thank you!

Description

11-16 FORD F250/F350 2.5" STARTER LEVELING SYSTEM, BASE, DIESEL

Brand: Carli Suspension

SKU: CS-FLVL-STR-SIG-11

Ford Leveling Starter System, 2011-16 Base Kit

Level the front of your truck with a system that delivers 50% more front suspension travel than the stock Super Duty. Shot peened, pre-set and powder coated coil springs paired with extended travel shocks backed by a lifetime warranty increase control and comfort without breaking the bank.

Shock Diameter - 2.0"
Lift Height - 2.5"
Tire Size - UP TO 35"
Front Travel - 9"
Rear Travel - 13"

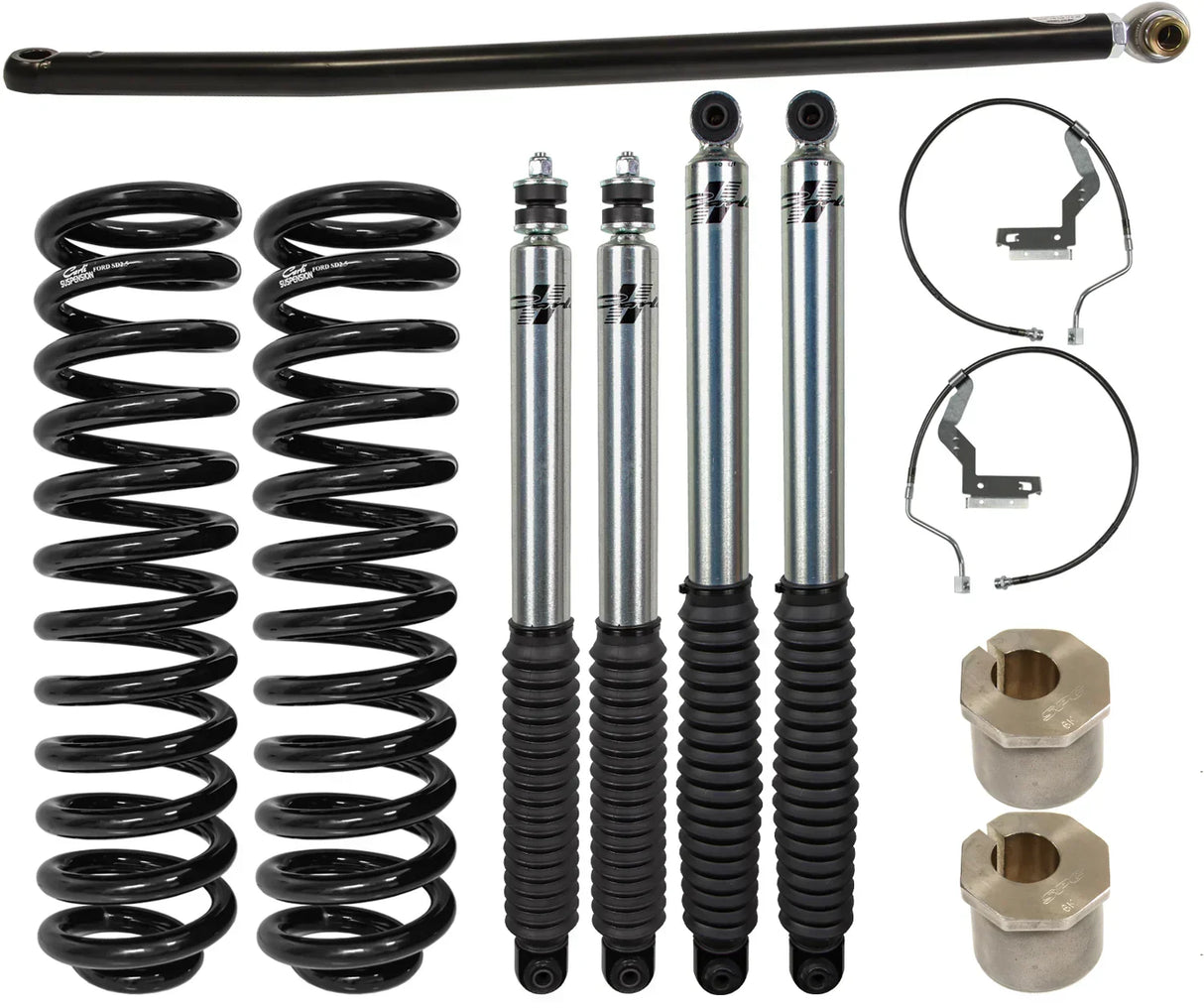

Base Kit Includes:

CS-FLC-05 Front Leveling Coils
CS-FSIG20SPKG-LVL-05 Ford Signature Series Shock Package, Front and Rear
CS-FORDBBL-11 Brake Lines
CS-FCASTERSHIM-2.5 2° Caster Shims
CS-FPRB-05 Track Bar

A “Base Kit” SKU must be accompanied by the SKU of a Leaf Spring option to form a complete system.


Kit Options:

ADD Progressive Add-A-Pack

Progressive Add-A-Pack +$
SKU: CS-FPAP-11
- Built in the U.S.A. By Deaver Leaf Spring
- Smooth progressive design
- Supplied with U-bolts and hardware
- Provides 2.0" of lift
- O.E.M. load capacity maintained, improved ride
- Fitment: 2005-2007 F250/350 4x4, 3.5" Axle Tube

ADD Low Mount Steering Stabilizer

Stainless Low Mount Steering Stabilizer +$
SKU: CS-FLMSS-05
- Custom Valved for Larger Tires, Adjustable Nitrogen Pressure
- Includes Differential Guard and Clamp
- Combines with High-Mount Stabilizer for Opposing Setup
- Fitment: 2005+ F250/350 4x4
- Optimized for Carli 2.5"-5.5" Systems

Stainless High Mount Steering Stabilizer +$
SKU: CS-FHMSS-08
- Bolt in Replacement for OEM Stabilizer
- Fitment: 2008-2016 F250/350 4x4
- Works on leveled and lifted trucks ONLY
- WILL NOT work with Dropped Pitman Arms

ADD Radius Arm Option

Fabricated Radius Arms +$
SKU: CS-FARA-LVL-05
- 1°-4° of adjustable Caster correction
- 3/16 Construction, Fully Internal Gusseted with 1/2" Additional Tire Clearance
- Limit Straps Kit Included
- Serviceable 17-4 Stainless Spherical Joint at Frame Connection for longevity and bind free Cycling
- Combines with Radius Arm Drop Brackets for 4.5"-5.5" Carli Systems
- Fitment: 2005+ F250/350 4x4






Description:

The Leveling System was designed for people seeking a leveled vehicle with more performance and ride quality than a generic spacer lift. The included, front, Carli Signature Series Shocks are longer to accommodate the extended travel. When designing the shocks, Zinc plating, Clear Coat for corrosion resistance and quality bushings were a must; finished off with boots to protect the shafts, we back them with a limited lifetime warranty to ensure their quality is as unbeatable as their ride quality at this price point.

Your truck will sit 2.5” higher in the front with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. Front custom-tuned Signature Series shocks increase the suspension control while the brake line tabs ensure you can make the most of your newfound suspension down-travel. The axle will be off center toward the driver’s side 3/4″ unless the optional Adjustable Track Bar is purchased. Caster Shims round off the off the front end geometry while improving on the stock handling.

As this system does not include anything for the rear, factory towing and payload capacity are maintained. This is an entry level system that only requires an upgrade to one of our many signature tuned shock packages and an Add-a-Pack or full progressive leaf spring pack to be converted to one of the higher-end systems.

The Leveling System will level the front of the truck to the rear on Super Duties equipped with the factory, 3-5/8” rear block. Super Duties equipped with a 2″ tall block from the factory will require the factory 3-5/8″ tall Block to achieve a leveled stance. Part Number: 7C3Z-5598-HB, 7C3Z-5598-JB

Wheel and Tire: Factory Wheels SHOULD NOT be run with oversized tires. They’re known to rub the radius arm, sway bar and most concerning – Brake Lines. Factory tires and factory wheels will work without issue but we DO NOT recommend running oversized tires on factory wheels. On our 2.5” Ford Systems, we recommend 17”-18” wheels, no more than 9” wide with 5.5” of backspacing with Carli Fabricated Radius Arms or 5” Backspace with factory arms; 5” will require a bit more trimming. Tires, 37×12.5” will fit with some trimming; 35” will likely fit without trimming. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.

Fitment
