Carli Suspension  |  SKU: CS-JATB-07-F

07-17 JEEP JKU FRONT ADJUSTABLE TRACK BAR

$ 430.00
Shipping calculated at checkout.


Description

07-17 JEEP JKU FRONT ADJUSTABLE TRACK BAR

Brand: Carli Suspension

SKU: CS-JATB-07-F

The Carli Systems use an adjustable track bar up front and the combination of an adjustable track bar and riser in the rear to correct geometry, center the axles after lifting the JK and ensure the axle have as little “Yaw” – lateral axle movement causing a wagging feeling during suspension cycling – as possible.

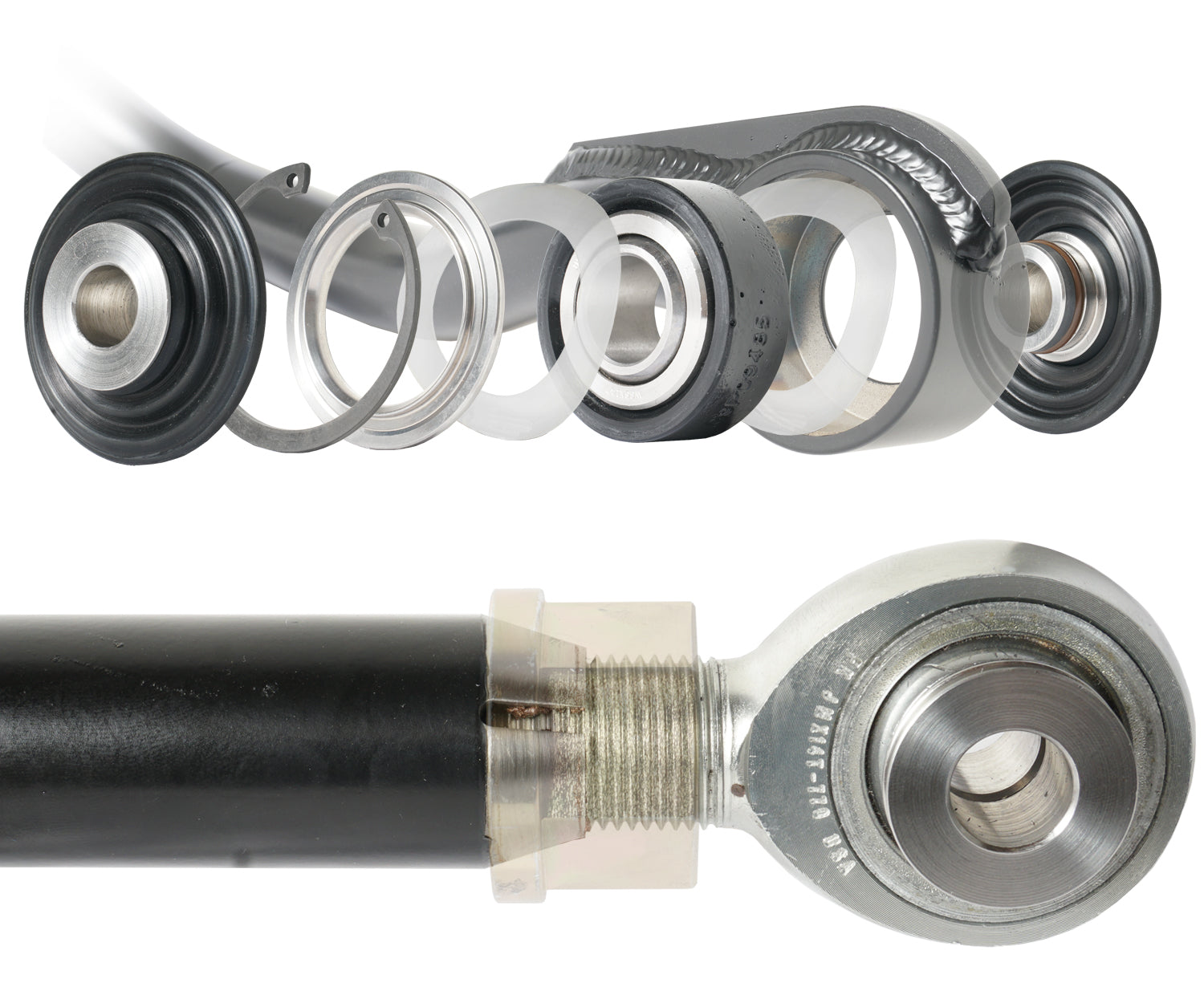

Carli Track Bars are constructed from 1/4″ wall DOM tubing and use 7/8″ FK-Bearing Heat-Treated Chromoly Race heims on their adjustable ends locked in by Carli’s proprietary JAMMIT nut providing 100% more surface area than a standard jam-nut. The fixed end of the Carli Track bars feature our proprietary CUB joint which featuring a proven FK Bearing 7/8″ Uniball at its center. Custom molded bushings are pressed on to encapsulate this Uniball then the assembly is pressed into the huge, gusseted housing of the track bar with a Stainless safety washer and retained with a snap ring. Custom Misalignment spacers center the joint in frame bracket and ensure full fore and aft movement of the track bar to be possible without bind or excessive bushing deflection.

Carli Jeep Adjustable Track Bars are designed and optimized for use ONLY with Carli Suspension Systems. We cannot guarantee compatibility with stock height or any other lift system.

Front Track Bar: CS-JATB-07-F

     - Adjustable Track Bar, Front
     - Designed for 2.5" Front Lift
     - 1/4" Wall Construction, FK Bearing 7/8" Heim
     - CUB Joint to minimize vibration and maximize lifespan
     - Fitment: 2007-17 Jeep JKU 4x4

Rear Track Bar: CS-JATB-07-R

     - Adjustable Track Bar, Rear
     - 1/4" Wall Construction, FK Bearing 7/8" Heim
     - CUB Joint to minimize vibration and maximize lifespan
     - Minimize rear "yaw" on 3" rear lift
     - Works ONLY with Carli Rear Track Bar Riser
     - Fitment: 2007-17 Jeep JKU 4x4

Rear Track Bar Riser: CS-JATB-07-R-RISER

     - Corrects Rear Track Bar Geometry on 3" Rear Lift
     - Minimizes rear "yaw"
     - Works ONLY with Carli Rear Track Bar
     - Fitment: 2007-17 Jeep JKU 4x4
