Description
Description
Split the difference between daily comfort and off-road confidence on your 2017-2022 Ford F-250/F-350 Super Duty with the Carli Pathfinder System. Nestled between the Backcountry and Pintop, the Pathfinder removes all strain from your daily drive while inspiring you to venture beyond the pavement — supple on-road manners with controlled, predictable capability for light to moderate off-road use.
Why Choose the Carli Pathfinder System?
- Carli-SPEC 2.5" Aluminum Shocks – Hard-anodized bodies for superior corrosion and scratch resistance, with 55% more piston surface area than a 2.0" for better heat management and longer rebuild intervals.
- On-Road Composure – Absorbs small and medium imperfections with ease for a supple, comfortable ride that doesn't require an aggressive driving style to feel the benefits.
- High-Performance Red Shock Oil – Spec'd to resist heat and fade under spirited driving for consistent damping and long-term reliability.
- Premium Black-Anodized Billet – Sleek, premium look straight out of the box — an aesthetic that previously cost over $1,200 in custom color upgrades on Carli's King kits.
- More Front Travel – Taller Progressive Rate Coil Springs raise the front and add wheel travel, with Radius Arm Drop Brackets resetting the pivot point to keep travel linear.
- Proven Development – The result of over a year of tuning and testing to deliver an affordable, premium 2.5" package built for the rigors of HD off-road use.

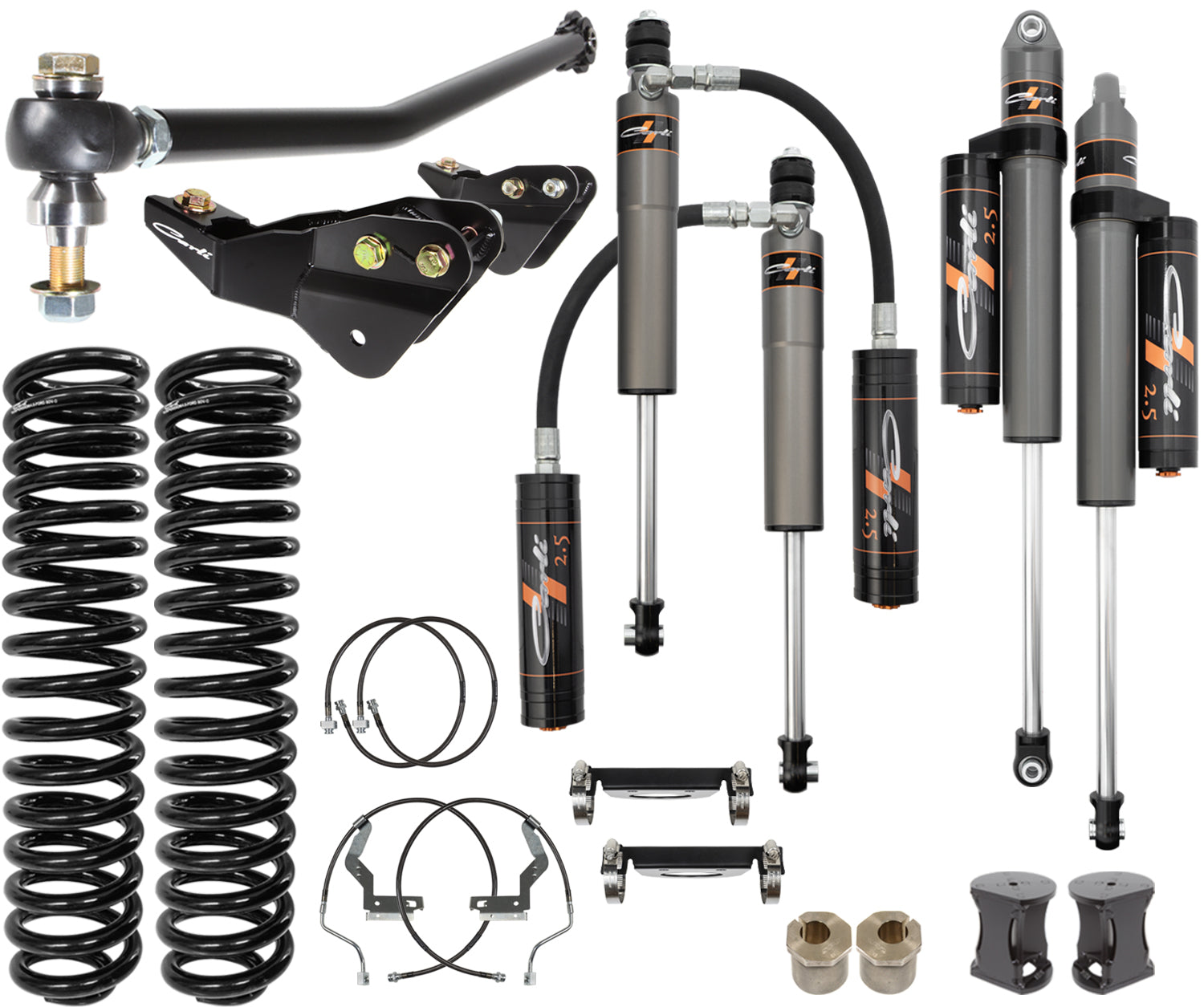

Kit Includes
- Carli-SPEC 2.5" hard-anodized aluminum-bodied shocks
- Progressive Rate Coil Springs
- Radius Arm Drop Brackets
- Bump Stop Drops
- Adjustable Track Bar
- Stainless Brake Lines
- Caster Shims
- Front sway bar solution (choice — see Notes)
- Rear spring solution (choice — see Notes)
Fits These Models
Fits the 2017-2022 Ford F-250 and F-350 Super Duty — including 2017, 2018, 2019, 2020, 2021, and 2022 model years.
Specifications
- Shock diameter: 2.5" (55% more piston surface area than a 2.0")
- Shock body: Aluminum, hard-anodized coating
- Shock oil: High-performance red, heat- and fade-resistant
- Billet finish: Black-anodized
- Front lift: Truck sits 5.5" higher in the front
- Front springs: Progressive Rate Coil Springs
- Carli 4.5" Ford System platform
Key Features at a Glance
- 2.5" Carli-SPEC Shocks - Hard-anodized, high oil volume.
- On-Road Focused - Supple daily ride, off-road ready.
- Red Shock Oil - Resists heat and fade.
- Black-Anodized Billet - Premium look out of the box.
- Progressive Coils + Radius Arm Drops - More linear front travel.
Notes
- Lift height by year: 2020 Super Duties sit 1" lower from the factory than 2017-19, and the Tremor Package is a factory 2" lift on the 20-22 platform (1" taller than 17-19). Because all three start at different heights but use the same lift, the stated lift height differs by year — but all trucks measure the same once the lift is installed.
- Front sway bar (choose one): a Sway Bar Drop Bracket + Carli Extended Sway Bar End Link combination, or — for the best ride quality — the full-replacement Torsion Sway Bar, which lightens the factory sway bar rate for a more compliant feel and increased articulation with only slightly more body roll.
- Rear spring (F-250 vs F-350 differ): Choose a Full Progressive Spring Pack (reduces capacity to a "light" ¾-ton) or a Progressive Add-a-Pack (eliminates the factory block, maintains payload, pairs with a rear bump stop drop). Since 2008 the F-250 uses a lighter 2-main-leaf pack and the F-350 uses a stiffer 3-main-leaf pack. The Add-a-Pack is a nice improvement on the F-250 but stays very stiff on the F-350 unless loaded — Full Replacement Leaf Packs are recommended for both, especially the F-350.
- Tremor / high-capacity tow F-250s are equipped with an F-350 rear spring and should also avoid the Add-a-Pack.
- Capacity: If payload capacity is a concern with the Full Progressive Leaf Springs on an F-350, add an aftermarket airbag system — ideally one that lets the airbags disconnect from the lower mount during suspension cycling to preserve full rear travel. The Full Progressive Leaf Pack shifts the axle slightly forward in the wheel well for maximum tire clearance of a 37" M/T at full compression.
- Wheel & tire: Do NOT run oversized tires on factory wheels — they're known to rub the radius arm, sway bar, and brake lines. Factory wheels with factory tires are fine. For a 37" E-rated tire, Carli recommends 17"-18" wheels, no more than 9" wide, with 5" of backspacing. More rubber improves small-bump compliance at proper inflation; ride firms up as wheel diameter increases.
