Description
Description
Carli Suspension

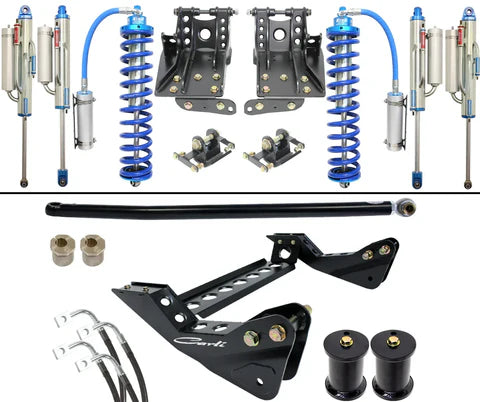

Carli Tuned 2.5 Coilover/Bypass Package - 4.5in Lift - 2011–2016 Ford F-250/F-350 4x4
The Carli Coilover/Bypass System is one of the most capable off-road suspension systems available, engineered for enthusiasts who demand maximum performance without sacrificing on-road drivability. Combining dual front shocks with height-adjustable coilovers and external bypass technology, this system delivers unmatched control, tunability, and bottom-out resistance.
Featuring King 2.5” front coilovers paired with 2-tube front bypass shocks and 3-tube rear bypass shocks, this setup provides multiple damping zones for superior ride quality and extreme off-road capability. The bypass design allows fluid to move freely during normal driving for a smooth ride, then progressively increases resistance during large impacts for maximum control and protection.
Key Features:
-
King 2.5” front coilovers with height adjustability (~1” range)
-
Dual front shock setup with 2.5” bypass shocks
-
12” stroke rear 3-tube bypass shocks with oversized rebound tube
-
Fully adjustable external bypass tubes for compression and rebound tuning
-
Carli-specific, blueprinted shock tuning for heavy-duty applications
-
17-4 stainless steel shock shafts for durability and corrosion resistance
-
Coilover conversion brackets for proper mounting and increased travel
-
Radius arm drop brackets for proper suspension geometry
-
Adjustable track bar to center the front axle
-
Stainless steel brake lines for extended travel and improved braking
-
Bump stop drops to prevent over-compression
-
Caster correction shims for improved steering feel
Performance Notes:
-
Provides 4.5” of front lift with significantly increased wheel travel
-
Height adjustable to compensate for added weight such as bumpers or winches
-
Designed for serious off-road use with excellent on-road manners
-
External bypass shocks may produce audible clicking during operation
-
Fully tunable suspension for ride comfort or aggressive performance
-
Full progressive rear leaf springs increase travel but reduce payload capacity
-
Recommended upgrades include differential guard, high mount steering stabilizer, and fabricated radius arms
-
Roll cage recommended for aggressive off-road use
-
Factory wheels should not be used with oversized tires due to clearance concerns
-
Recommended setup: 17–18” wheels, max 9” width, 4.5–5” backspacing with 37” E-rated tires
Vehicle Fitment:
-
2011–2016 Ford F-250 Super Duty 4x4
-
2011–2016 Ford F-350 Super Duty 4x4
SKU: CS-F45-CO25-BYP-11
