CST 19-23 Chevy / GMC 1500 4WD 4.5″ Stage 1 Suspension System
Description
Description
PN: CSK-G25-1

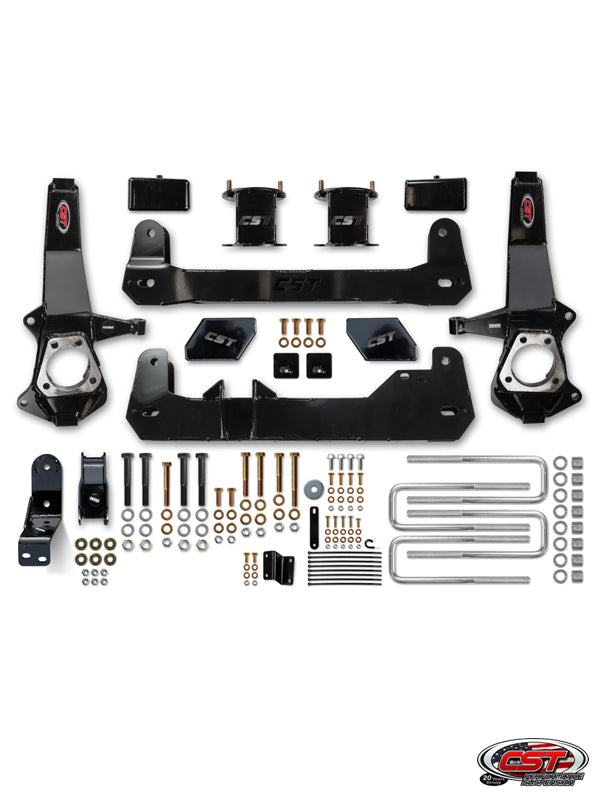

CSK-G25-1 19-22 GM 1500 4WD 4.5″ SUSPENSION SYSTEM STAGE 1
CSS-C25-B1 SUBFRAMES, DIFF DROPS, HARDWARE
CSS-C25-B2 KNUCKLES, REAR BRACKETS
CST PERFORMANCE SUSPENSION is proud to announce our 4.5″ Suspension System for the 19-22 GM 1500 2wd/4wd trucks.
*MUST RUN 20″ WHEELS*
This all new CSS-C3-25 kit will provide superior performance on and off road. Sub frames are designed to give you the most ground clearance and protect vital front suspension compenents. Laser cut and machined knuckles provide strength and durability.
CST Performance Suspension products are designed and manufactured in the USA to the highest standards for quality, performance, and durability.
Kit Features:
-High Clearance Sub Frames
-Fabricated Knuckles
-Sway Bar Drops
-Front Diff Drops
-ABS Drop Brackets
-Front Coilover Spacers
Kit Options
-CSS-C2-18 Uni Ball Upper Control Arms
-CSA-5533 DIRT Series rear 2.0 Emulsion Shocks
-CSA-6533 DIRT Series Rear 2.0 Remote Reservoir Shocks
-CSA-7506 PRO Series Rear 2.5 Piggyback with Adjuster Shocks
Wheel and Tire Fitment
-Fits 35″ tire minor trimming (based on 20×9 w/5″ backspacing)
-Fits 33-34 tire with no trimming (based on 20×9 w/5″ backspacing)
-5″ max backspacing
-Must run 20″ or larger wheel
