CST  |  SKU: CSK-G23-10

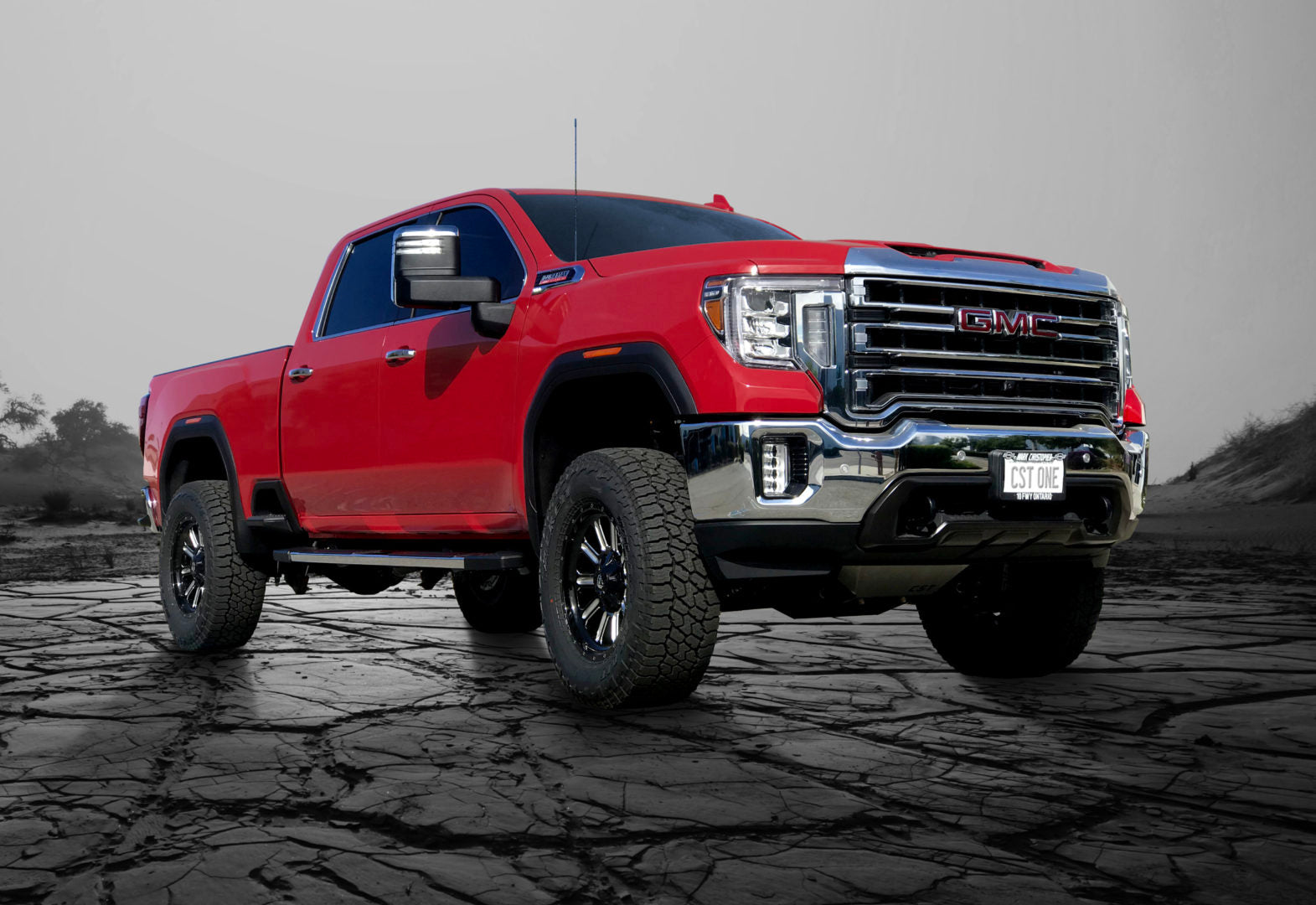

CST 20+ Chevy / GMC HD 2500 / 3500* 4wd 4″ Stage 10 Suspension System

$ 7,569.65
Shipping calculated at checkout.


Description

Description

This new kit will provide superior performance on or off road. Sub frames are designed to give you the most ground clearance while protecting vital front suspension components. All of CST products are precision fabricated in house to provide strength and durability. CST Performance Suspension products are designed and manufactured in the USA!

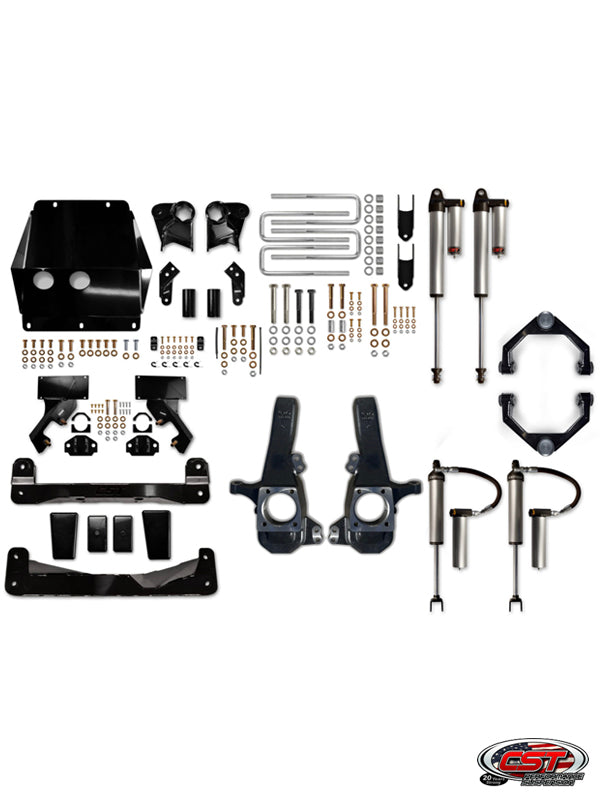

CSK-G23-10 4″ STL Stage 10 Suspension Includes the following parts:

CSS-C3-23-B1     Front & Rear Sub Frames, Diff Drops, & Lift Blocks

CSS-C3-23-B2     Spindles

CSS-C3-23-B3     Skid plate, Torsion Brackets, Torsion Sleeves, Hardware, Etc.

CSS-C2-20           Ball Joint Upper Control Arm with OE Style Bushing

CSS-C33-9         2.5 Front Shock Mount

CSA-7523             PRO SERIES 2.5 Remote Reservoir Front Shock

CSA-7524             PRO SERIES 2.5 Piggyback Rear Shock



Options for the 4″ Kit:

CSS-C29-25    Aluminum Front Skid Plate

CSS-C24-18    Heavy Duty Tie Rod Ends

*3500 Model Trucks Require Longer U-Bolt for Factory Overload CSU-C15-15HD*



4” S.T.L. Kit Feature

SUPERIOR CV& TIE ROD ANGLES

HIGH CLEARANCE, FULLY BOXED X-MEMBERS

KIT INCLUDES STEEL LOWER SKID PLATE TO PROTECT FRONT DIFF

STOCK TORSION LOCATION (STL) FOR MAXIMUM GROUND CLEARANCE

INCREASED TIRE CLEARANCE

ABILITY TO RE-USE O.E. SHOCKS (KIT INCLUDES FRONT SHOCK ADAPTERS)

GM STABILITRAK APPROVED

PARTS COVERED IN A HIGH-QUALITY GLOSS BLACK POWDER COAT FINISH

NO WELDING REQUIRED

CAST IRON KNUCKLES

CST SUPERIOR QUALITY FIT, FUNCTION AND APPEARANCE

IMPROVED HANDLING

ABILITY TO PUT BACK TO STOCK

MADE IN THE USA



Wheel & Tire Fitment

18″ Max Backspace 5.75″

20″ Max Backspace 6″

20×9 w/5″ Backspacing 37″ tire minor trimming

20×9 w/5″ Backspacing 35″ tire no trimming
