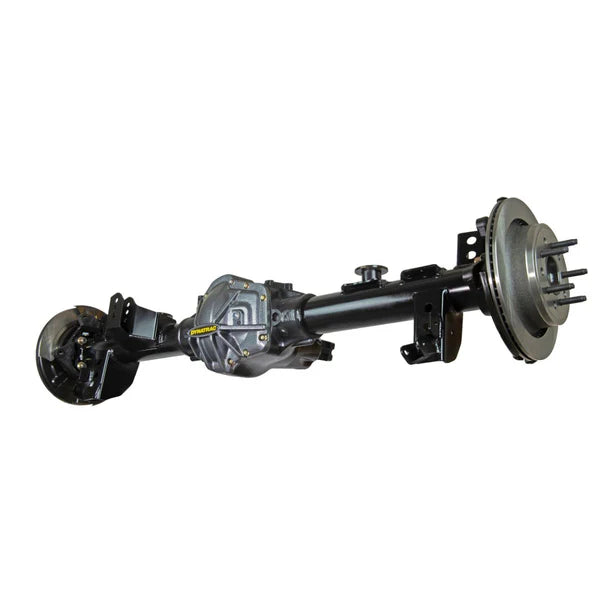

Dynatrac ProFloat XD60™ Rear Axle for Jeep Gladiator JT (2020+)
Everyone else’s full-float axle just became obsolete. The Dynatrac ProFloat XD60™ is a revolutionary rear axle system engineered to deliver full-float–level strength without the weight, wheel changes, or compromises of traditional full-float designs. This proprietary combination of axle shaft, housing, and bearing technology virtually eliminates axle-flange bending, even with tires up to 40 inches, while remaining a direct bolt-in solution for 2020+ Jeep Gladiator (JT) models.
Dynatrac rewrote the rules with the ProFloat XD60™, giving Gladiator owners the ability to run extreme tire sizes and off-road abuse while retaining their existing wheels. Unlike conventional full-float axles, the ProFloat XD60™ is up to 100 pounds lighter than comparable setups. This reduction in unsprung weight directly improves ride quality, handling, and off-road control.
At its core, the ProFloat XD60™ uses an all-new advanced axle housing and axle shaft design that dramatically reduces the cantilever loads placed on the axle flange. Combined with U.S.-made, heat-treated chromoly axle shafts and oversized bearing and seal journals, this system delivers exceptional durability without unnecessary mass.
The ProFloat XD60™ is offered with 35-spline axle shafts and utilizes heavy-duty F-150 brake assemblies, providing excellent braking performance while maintaining full compatibility with Gladiator ABS and ESP systems. Replacement brake components are easy to source, making this a practical upgrade for long-term ownership.
Key Features & Strength Enhancements:
-
Virtually eliminates axle-flange bending, even with 40-inch tires
-
Major bearing offset improvement to reduce cantilever loading at the wheel
-
Significantly thicker flange section at the wheel bolt circle
-
Larger shaft-to-flange transition radius with tapered flange skirts for added stiffness
-
Oversized bearing and seal journals compared to performance semi-float axles
-
U.S.-made, heat-treated chromoly axle shafts
-
Up to 100 lbs lighter than comparable full-float axles (reduced unsprung weight)
-
Retains factory-style wheels, no wheel change required
Standard ProRock XD60® Features Included:
-
Dynatrac-exclusive patented ProRock® nodular-iron ProRock XD60 center section
-
Optional oversized pinion and carrier bearing bores for elite housing rigidity
-
Low-pinion, standard-cut gearing optimized for rear axle use
-
Industry-leading ground clearance in its class
-
Superior ring-and-pinion gear support and stability
-
High-capacity carrier-bearing saddle structure
-
7/16-inch cover bolts that add structural rigidity
-
O-ring differential cover seal with precision-machined mating surfaces
-
4.0-inch diameter chromoly axle tubes with variable wall thickness for optimal strength-to-weight ratio
-
Dynatrac Dual-Sump High Volume™ (DSHV) oiling system to ensure constant pinion bearing lubrication
Vehicle Fitment:
-
2020–Current Jeep Gladiator JT
SKU: JTPF-3X4010
This is the next evolution of rear axle strength for the Jeep Gladiator—full-float performance, lighter weight, factory wheel compatibility, and Dynatrac-level engineering built for the harshest environments.
