Stryker  |  SKU: SOR-ATB-F452326-B

F450 F550 0-12" Lift Height Adjustable Track Bar with Heim Joints for 2023 to 2026

Regular price USD 54995

Can I pick up my order or have it installed at your shop?

Absolutely. We offer local pickup on most products and full professional installation at our shop in Washington, MO. Whether you just want to grab your parts or have our techs handle the install, we’ve got you covered. Give us a quick call at 636-429-7020 or message us to schedule a visit — we’ll make sure the parts are ready when you arrive.

How do I know if this part fits my vehicle?

Unsure if it’ll fit? No problem — that’s what we’re here for. Send us your vehicle’s year, make, and model, and we’ll verify fitment before you order. We can also point you toward compatible upgrades or supporting parts if needed.

What if I need to return a product or it’s defective?

Most unused items can be returned within 30 days in their original packaging. Some products are covered by a manufacturer’s warranty as well. If something arrives damaged or doesn’t meet your expectations, just let us know — we’ll help you get it replaced, refunded, or repaired. (Tracking updates are also emailed automatically once your order ships.)

What's the lead time on custom or fabricated parts?

Many of our parts are built to order — especially fabricated or performance components. These can take additional time to produce before shipping. Lead times vary by manufacturer and demand, but we’ll always keep you updated along the way. If you’re working on a tight schedule, reach out before ordering at 636-429-7020 and we’ll confirm current availability or estimated ship dates.

Built for the latest 2023–2026 Ford F-450 / F-550 Super Duty, the Stryker 0-12" Adjustable Track Bar with Heim Joints bolts in with zero drilling and lets you dial axle position from both ends.

Why Choose the Stryker 2023–2026 F450/F550 Heim Track Bar?

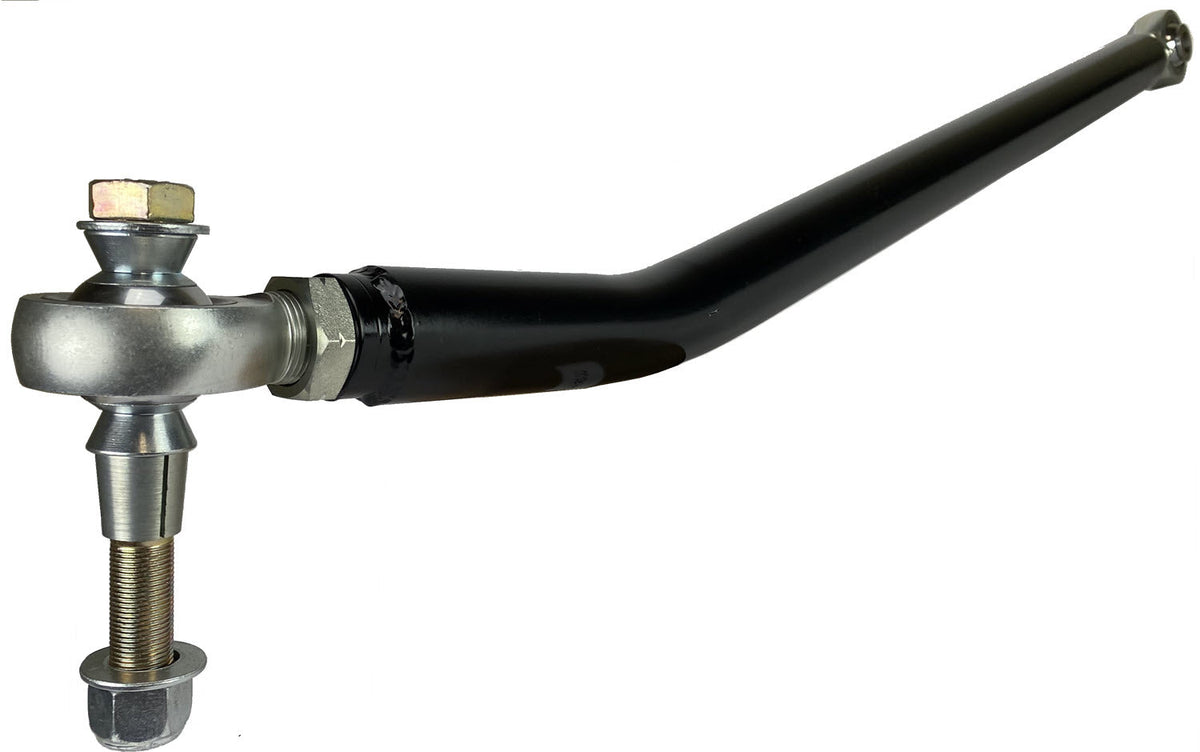

  • Double adjustable – heavy duty 1.25” Teflon lined heims at both ends
  • Industry-largest 2" OD – DOM (Drawn Over Mandrel) bar with .250 wall
  • Simply bolt on – custom misalignments keep the factory frame-end bolt

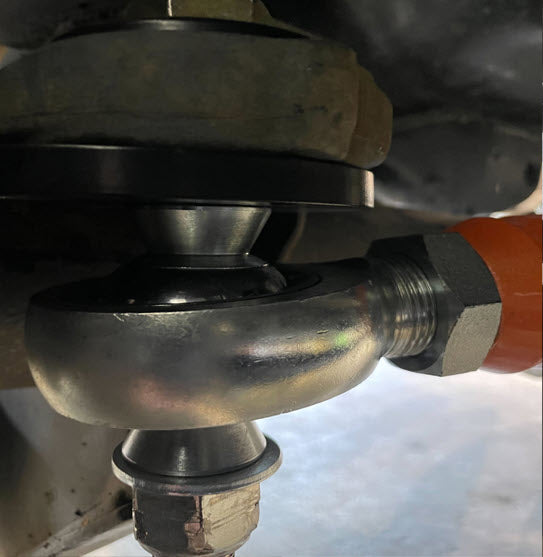

  • Tight axle fit – slotted, machined tapered sleeve converts the axle end to a 3/4" bolt
  • 0-4" alone – 4 1/2" to 12" with a relocation bracket and pitman arm
  • Lifetime replacement warranty – laser cut and welded at Stryker USA

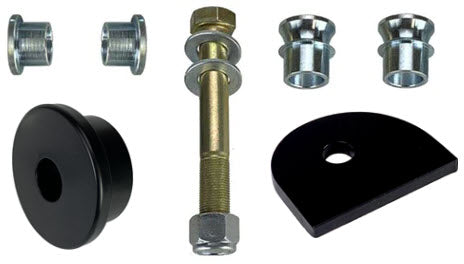

Kit Includes
  • (1) Heavy Wall Double Adjustable track bar
  • (1) Bracket Plate
  • (1) Mounting Puck
  • (2) 1.25” Teflon lined heims with misalignments and jam nut
  • (2) 3/4" grade 8 bolt with washers and nylock nut
  • (1) Double shear bracket at axle end to convert to heim joint
  • (2) Misalignment Spacers – axle end
  • (2) Custom misalignment spacers to retain factory bolt – frame end
  • All grade 8 hardware
Fitment Notes
  • Used by itself (no track bar drop bracket or aftermarket pitman arm): 0-4" of lift.
  • 4 1/2" to 12" of lift requires a Track Bar Relocation Bracket and a Pitman Arm.
Installation Highlights

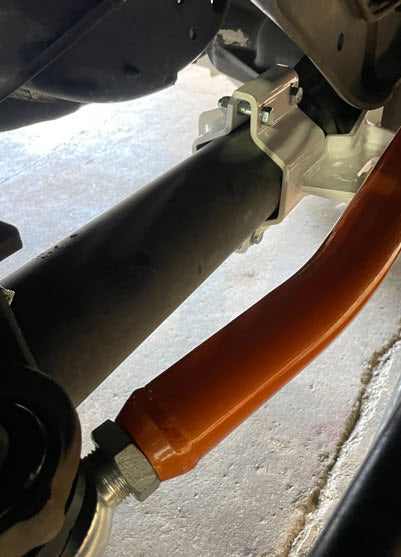

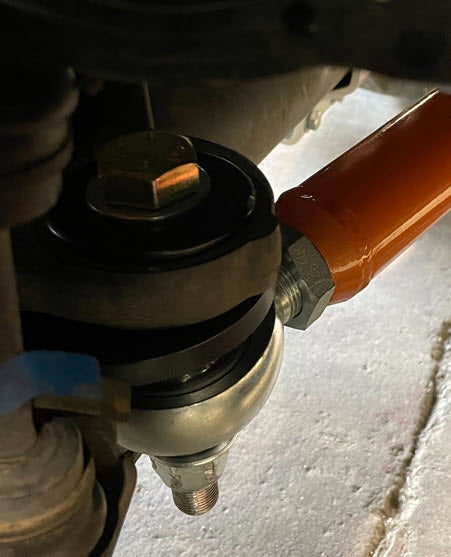

No drilling, no modifications. The frame end re-uses the factory track bar bolt; at the axle, the slot in the tapered sleeve lets it cinch into the factory tapered hole as tight as possible when the bolt is tightened.

Fits These Models

2023–2026 Ford F-450 / F-550 Super Duty

Notes
  • The optional Stryker track bar drop bracket is 1/4" steel with 1/4" gusseting and pairs with a drop pitman arm for 4.5-12" of lift.
  • The F-450/F-550 pitman arm is exclusive to that model and is used from 4.5 to 12 inches of suspension lift.
  • Because of the bend, this arm cannot be adjusted after installation – set it to the desired length before you install.
  • Components are CNC laser cut and MIG welded in Maryville, TN.

SKU: SOR-ATB-F452326-B
