FOX  |  SKU: 985-24-083

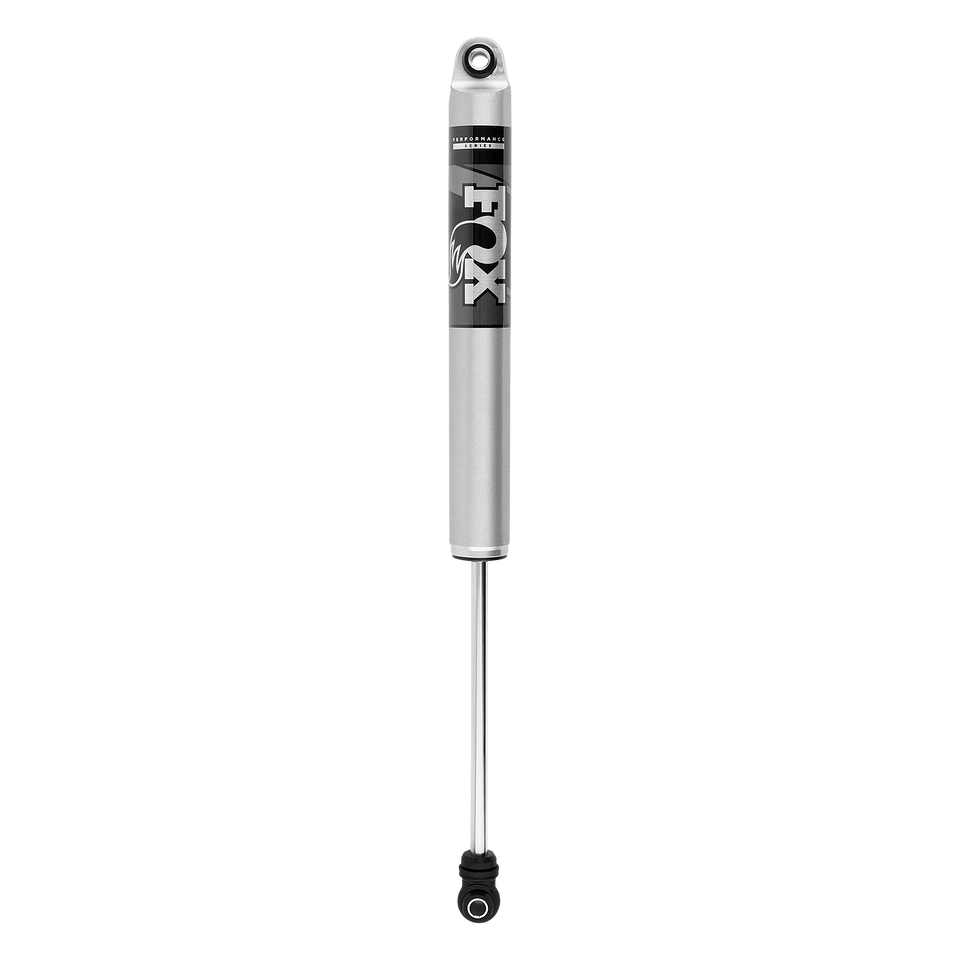

Fox Performance Series 2.0 Smooth Body IFP Shock Isuzu Rear

Regular price USD 22995

Can I pick up my order or have it installed at your shop?

Absolutely. We offer local pickup on most products and full professional installation at our shop in Washington, MO. Whether you just want to grab your parts or have our techs handle the install, we’ve got you covered. Give us a quick call at 636-429-7020 or message us to schedule a visit — we’ll make sure the parts are ready when you arrive.

How do I know if this part fits my vehicle?

Unsure if it’ll fit? No problem — that’s what we’re here for. Send us your vehicle’s year, make, and model, and we’ll verify fitment before you order. We can also point you toward compatible upgrades or supporting parts if needed.

What if I need to return a product or it’s defective?

Most unused items can be returned within 30 days in their original packaging. Some products are covered by a manufacturer’s warranty as well. If something arrives damaged or doesn’t meet your expectations, just let us know — we’ll help you get it replaced, refunded, or repaired. (Tracking updates are also emailed automatically once your order ships.)

What's the lead time on custom or fabricated parts?

Many of our parts are built to order — especially fabricated or performance components. These can take additional time to produce before shipping. Lead times vary by manufacturer and demand, but we’ll always keep you updated along the way. If you’re working on a tight schedule, reach out before ordering at 636-429-7020 and we’ll confirm current availability or estimated ship dates.

Description

The Performance Series 2.0 IFP smooth body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.

Year Make Model Drive Type Position Lift Height Price
1981 Isuzu D-Max All Rear 0-1 $219.95
1982 Isuzu D-Max All Rear 0-1 $219.95
1983 Isuzu D-Max All Rear 0-1 $219.95
1984 Isuzu D-Max All Rear 0-1 $219.95
1985 Isuzu D-Max All Rear 0-1 $219.95
1986 Isuzu D-Max All Rear 0-1 $219.95
1987 Isuzu D-Max All Rear 0-1 $219.95
1988 Isuzu D-Max All Rear 0-1 $219.95
1989 Isuzu D-Max All Rear 0-1 $219.95
1990 Isuzu D-Max All Rear 0-1 $219.95
1991 Isuzu D-Max All Rear 0-1 $219.95
1992 Isuzu D-Max All Rear 0-1 $219.95
1993 Isuzu D-Max All Rear 0-1 $219.95
1994 Isuzu D-Max All Rear 0-1 $219.95
1995 Isuzu D-Max All Rear 0-1 $219.95
1996 Isuzu D-Max All Rear 0-1 $219.95
1997 Isuzu D-Max All Rear 0-1 $219.95
1998 Isuzu D-Max All Rear 0-1 $219.95
1999 Isuzu D-Max All Rear 0-1 $219.95
2000 Isuzu D-Max All Rear 0-1 $219.95
2001 Isuzu D-Max All Rear 0-1 $219.95
2002 Isuzu D-Max All Rear 0-1 $219.95
2003 Isuzu D-Max All Rear 0-1 $219.95
2004 Isuzu D-Max All Rear 0-1 $219.95
2005 Isuzu D-Max All Rear 0-1 $219.95
2006 Isuzu D-Max All Rear 0-1 $219.95
2007 Isuzu D-Max All Rear 0-1 $219.95
2008 Isuzu D-Max All Rear 0-1 $219.95
2009 Isuzu D-Max All Rear 0-1 $219.95
2010 Isuzu D-Max All Rear 0-1 $219.95
2011 Isuzu D-Max All Rear 0-1 $219.95
2012 Isuzu D-Max 4WD Rear 0-1 $219.95
2013 Isuzu D-Max 4WD Rear 0-1 $219.95
2014 Isuzu D-Max 4WD Rear 0-1

$219.95



PART NUMBER 985-24-083
FEATURES Includes Aluminum Reservoir Clamp; Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; IFP Separates Oil From High-Pressure Nitrogen Gas; Black Anodized CNC Machined Aluminum Components
SERIES Performance
TRAVEL 7.61
REAR LIFT HEIGHT 0-1
BODY 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
BODY PLATING Clear-anodized for a durable finish
COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum
SHAFT 5/8" hard chrome plated heat-treated alloy steel
PISTON Race-developed high-flow piston design
VALVING Application specific valving to maximize performance
SEALS Redundant sealing pack system main seal, wiper seal, scraper seal
EXTENDED LENGTH 21.61
COMPRESSED LENGTH 14
TOP MOUNT Eyelet
BOTTOM MOUNT Eyelet
FITMENT NOTES Rear Lift: 0-1 inch
