ICON  |  SKU: ICOK93033T

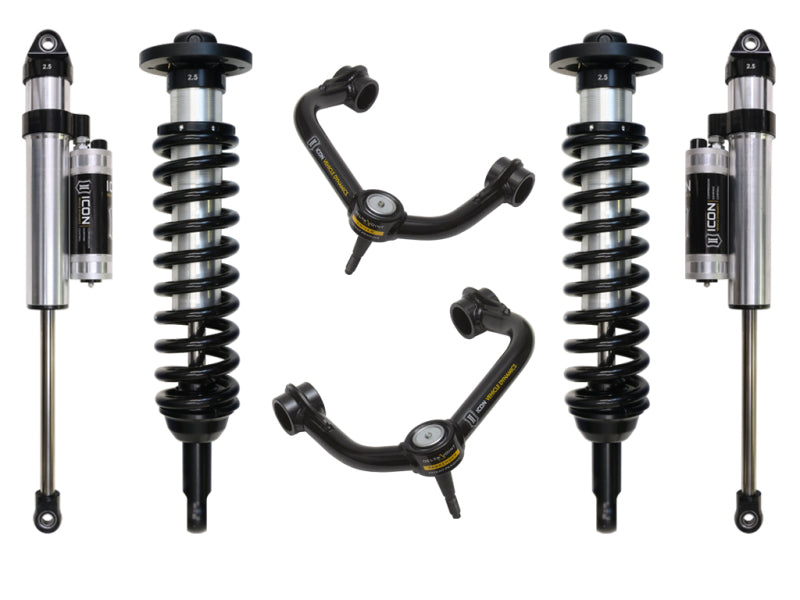

ICON 04-08 Ford F-150 2WD 0-2.63in Stage 4 Suspension System w/Tubular Uca

$ 4,190.40
Shipping calculated at checkout.

Description

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.



Features & Benefits:
  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Vehicle specific tuned front and rear shocks for superior damping and vehicle control
  • Adjustable coilovers from 0-2.63" of lift height
  • ICON CDCV equipped rear shocks for full compression tuneability of your shocks
  • Tubular upper control arms for added strength, durability, and improved alignment geometry
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock bodies with 7/8" polished shafts
  • FK Rod End bearings for extended longevity and minimal deflection
  • 100% bolt-on system - no drilling, cutting, or welding necessary for install
NOTES:
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • Ships in multiple boxes



COMPONENTS:
  • 91500 (QTY: 1) | 04-08 F150 2WD 0-2.63" 2.5 VS IR COILOVER KIT
  • 98500DJ (QTY: 1) | 04-20 F150 TUBULAR UCA DJ KIT
  • 97710CP (QTY: 1) | 04-08 F150 2WD 0-3" REAR 2.5 VS PB CDCV PAIR



ICON 04-08 Ford F-150 2WD 0-2.63in Stage 4 Suspension System w/Tubular Uca | SKU: K93033T
