ICON 2005-07 Ford F250/F350, 7" Lift, Stage 4 Suspension System
Can I pick up my order or have it installed at your shop?
Can I pick up my order or have it installed at your shop?
Absolutely. We offer local pickup on most products and full professional installation at our shop in Washington, MO. Whether you just want to grab your parts or have our techs handle the install, we’ve got you covered. Give us a quick call at 636-429-7020 or message us to schedule a visit — we’ll make sure the parts are ready when you arrive.
How do I know if this part fits my vehicle?
How do I know if this part fits my vehicle?
Unsure if it’ll fit? No problem — that’s what we’re here for. Send us your vehicle’s year, make, and model, and we’ll verify fitment before you order. We can also point you toward compatible upgrades or supporting parts if needed.
What if I need to return a product or it’s defective?
What if I need to return a product or it’s defective?
Most unused items can be returned within 30 days in their original packaging. Some products are covered by a manufacturer’s warranty as well. If something arrives damaged or doesn’t meet your expectations, just let us know — we’ll help you get it replaced, refunded, or repaired. (Tracking updates are also emailed automatically once your order ships.)
What's the lead time on custom or fabricated parts?
What's the lead time on custom or fabricated parts?
Many of our parts are built to order — especially fabricated or performance components. These can take additional time to produce before shipping. Lead times vary by manufacturer and demand, but we’ll always keep you updated along the way. If you’re working on a tight schedule, reach out before ordering at 636-429-7020 and we’ll confirm current availability or estimated ship dates.
Description
Description

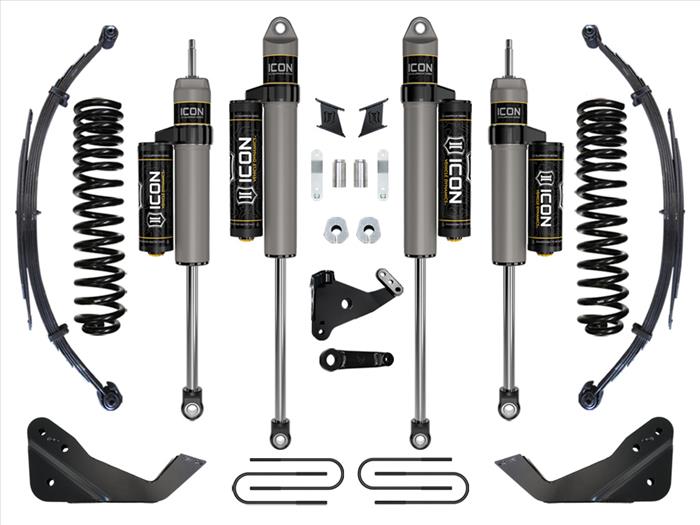

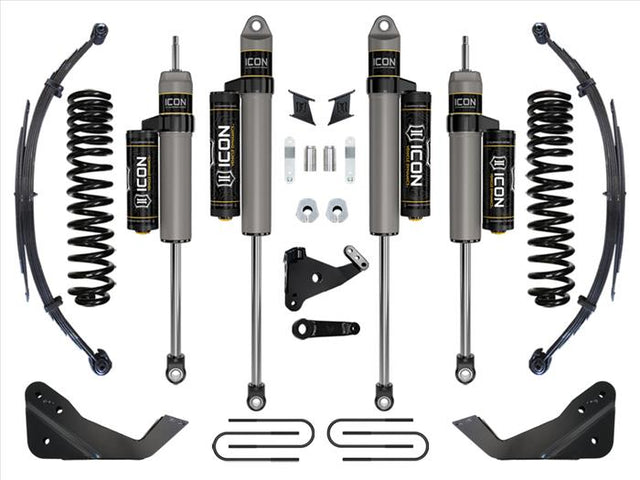

ICON���s 7��� Suspension System for the 2005-2007 Ford Super Duty offers unparalleled performance and ride quality while giving the vehicle clearance for 38��� tall tires. This Stage 4 system takes performance and ride quality to a whole new level. The Stage 4 system comes complete with ICON 2.5" Piggyback shocks, Dual-Rate Coil Springs, Drop Pitman Arm, Pan Rod Bracket, Brake Line Brackets, Radius Arm Drop Down Brackets, ICON's progressive 5" rear leaf springs, and U-bolts. All of the suspension components (excluding shocks) are covered by ICON's Limited Lifetime Warranty.
��
Features & Benefits:
- 50% increase in wheel travel
- Less body-roll than stock truck
- State of the art dual-rate coil spring
- Lifetime guarantee that coil springs won���t sag
- Clears 37" Tall Tires
- No change in towing capacity
- No driveshaft modifications needed
- 100% Bolt-on system - No drilling, cutting or welding necessary for install
- Vehicle Specific tuned 2.5 Aluminum Series Piggyback Reservoir shocks for incredible ride quality
��
NOTES:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00��� Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25��� Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25��� Backspace / 6mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
- APPLICATION NOTE #21: Not Applicable On Vehicles Equipped With A Manual Transmission
- APPLICATION NOTE #28: Pinch Weld On ���05-���10 Superduty Radius Arms May Come In Contact With Radius Arm Drop Bracket Hardware
- APPLICATION NOTE #29: 7��� Systems Using A 4-Link In Place Of The Factory Radius Arms Do Not Require The Use Of Alignment Cams. Caster Can Be Adjusted By The Lower Link Arms
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #57: Retains Factory Block For Truck To Sit Level With Front Of Truck
- Ships in multiple boxes
��
Components:
- 67010 (QTY: 1) | 05-07 FSD FRONT 7" BOX KIT
- 67015 (QTY: 1) | 05-24 FSD FRONT 7" DUAL RATE SPRING KIT
- 62530 (QTY: 1) | 05-24 FORD F250/F350 SUPER DUTY 2.3 DEG ALIGNMENT CAM KIT
- 64040 (QTY: 1) | 05-10 FSD RADIUS ARM DROP KIT
- 138508 (QTY: 2) | 99-07 FSD 5" REAR LEAF SPRING PACK
- 37003 (QTY: 1) | 99-10 FSD REAR 15" U-BOLT KIT
- 67720P (QTY: 1) | 05-24 FSD 4WD 7" FRONT 2.5 VS PB PAIR
- 37701P (QTY: 1) | 99-24 FSD 3-6" REAR 2.5 VS PB PAIR
��
ICON 2005-07 Ford F250/F350, 7" Lift, Stage 4 Suspension System | SKU: K67103
