ICON 2008-2010 Ford F250/F350, 4-5.5" Lift, Stage 3 Coilover Conversion System

Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.5” Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.

Features & Benefits:

• Bolt-in system fits in OE coil bucket location
• Ride height adjustable coilovers (4-5.5")
• Increased wheel travel and ride quality over stock
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Eibach coil springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection

NOTES:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
• Ships in multiple boxes

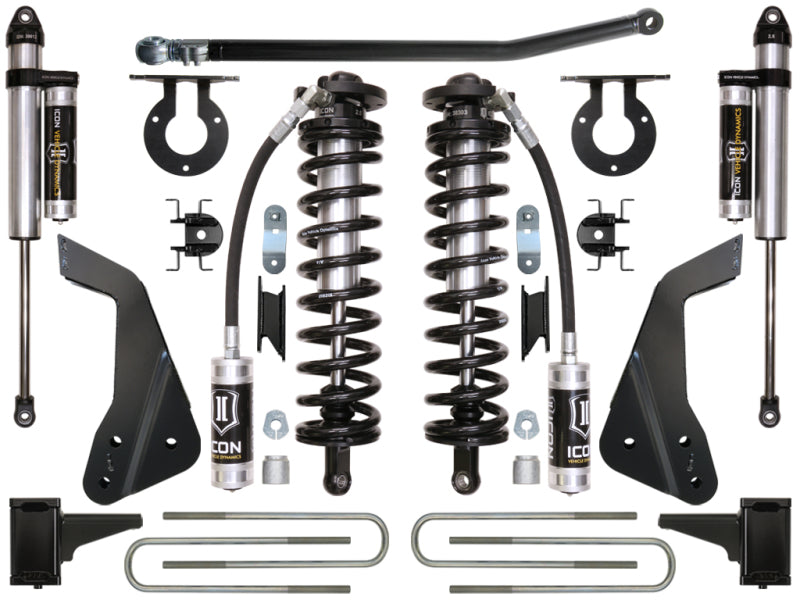

Components:

• 64050 (QTY: 1) | 08-22 FSD FRONT 4.5" BOX KIT
• 61721 (QTY: 1) | 05-24 FSD 4WD 4-5.5" 2.5 VS RR BOLT IN CO CONVERSION KIT
• 64035 (QTY: 1) | 05-16 FSD ADJ TRACK BAR W/FK ROD END
• 64040 (QTY: 1) | 05-10 FSD RADIUS ARM DROP KIT
• 195275 (QTY: 1) | 99-24 FSD 5" BLOCK KIT
• 37002 (QTY: 1) | 99-10 FSD REAR 17" U-BOLT KIT
• 37701P (QTY: 1) | 99-24 FSD 3-6" REAR 2.5 VS PB PAIR

ICON 2008-2010 Ford F250/F350, 4-5.5" Lift, Stage 3 Coilover Conversion System | SKU: K63123
