ICON 11-16 Ford F-250/F-350 7in Stage 2 Suspension System

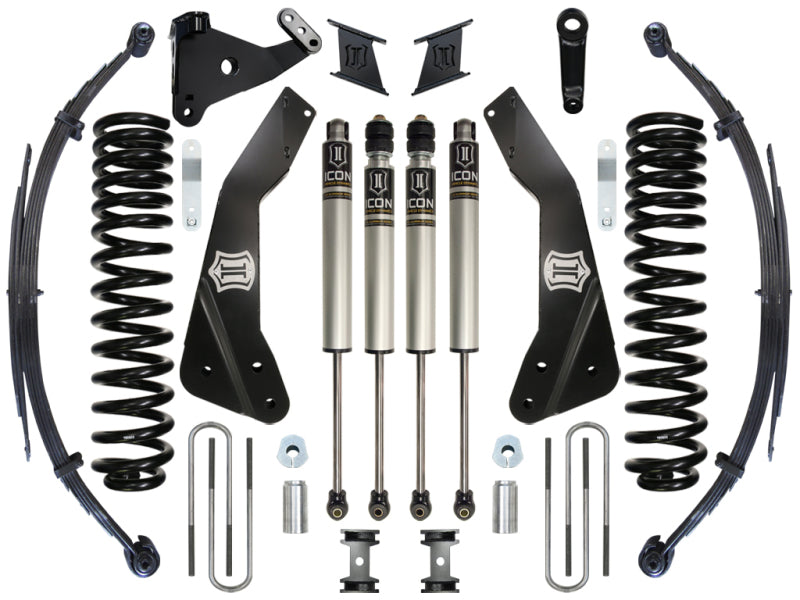

ICON Vehicle Dynamics is an industry leader when it comes to Ford Super Duty performance. Our engineers have spent countless hours under these trucks and behind the wheel developing some of the most refined suspension systems available. Increasing wheel travel and ride comfort is standard operating procedure at ICON, but our engineers aimed high to produce a suspension solution that also maintained the Super Duty’s towing capacity. ICON’s 7” Suspension System for the 2011-2016 Super Duty yields enough lift to clear 37” tires while providing excellent ride characteristics across a wide variety of terrain on and off-road. Each component of this suspension system has been specifically engineered to work in union with other ICON parts to extract maximum performance out of the vehicle. Our Stage 2 System is comprised of 7” lift dual rate coil springs, fabricated radius arm drop mounts with brushed stainless badges, track bar drop bracket, bump stop extensions, sway bar links, a forged pitman arm, brake line brackets, rear 5" lift progressive rate leaf springs w/ U-bolts, and 2.0 Aluminum Series smooth body front & rear shocks.

Features & Benefits:

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Decreased body roll
• ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series shocks
• Hard anodized aluminum shock body with 5/8” polished nitro steel shaft
• Heavy duty radius arm drop brackets
• Correctly positioned steering and track bar components
• Rear progressive design leaf pack for smooth compliant ride
• No drive shaft modifications needed

NOTES:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
• APPLICATION NOTE #21: Not Applicable On Vehicles Equipped With A Manual Transmission
• APPLICATION NOTE #31: ‘08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #57: Retains Factory Block For Truck To Sit Level With Front Of Truck
• Ships in multiple boxes

Components:

• 67030 (QTY: 1) | 11-16 FSD FRONT 7" BOX KIT
• 67015 (QTY: 1) | 05-24 FSD FRONT 7" DUAL RATE SPRING KIT
• 62530 (QTY: 1) | 05-24 FORD F250/F350 SUPER DUTY 2.3 DEG ALIGNMENT CAM KIT
• 64045 (QTY: 1) | 11-16 FSD RADIUS ARM DROP KIT
• 168505A (QTY: 2) | 08-16 FSD REAR 5" LEAF SPRING PACK
• 65501 (QTY: 1) | 11-24 FSD U-BOLT PLATE KIT
• 67003 (QTY: 1) | 11-24 FSD REAR 15" U-BOLT KIT
• 67031 (QTY: 1) | 11-22 FSD REAR 7" BRAKE BRACKET KIT
• 66514 (QTY: 2) | 05-24 FSD 4WD 7" FRONT 2.0 VS IR
• 36508 (QTY: 2) | 99-16 FSD 4WD 3-6" REAR 2.0 VS IR

ICON 11-16 Ford F-250/F-350 7in Stage 2 Suspension System | SKU: K67301
